Pultruded Grating T-1215
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
FRP pultruded grating is made from pultruded "I"-shaped and "T"-shaped profiles as bearing bars, with solid tubes or rods as connecting rods, assembled per a defined assembly process into grating with gaps in the panel surface.
Name | Content | Type |
|---|---|---|
Resin | 25% | OFR-25,IFR-25,VEFR-25 |
Glass fiber | 65% | E |
Filler | 8% | ATH,PR |
Others | 2% | --- |
Code | Resin type | Flame retardant performance | Recommended application |
|---|---|---|---|
MP-5 | Phenolic type | Oxygen index up to approximately 80 | Low toxicity and high flame retardancy; suitable for applications with high fire safety requirements |
VEFR-25 | Vinyl ester type | Oxygen index above 28 | Harsh environments with strong corrosive media such as acids and alkalis |
VEFR-10 | Vinyl ester type | Oxygen index above 35 | Applications requiring high flame retardancy with strong acids, strong alkalis and favorable service conditions |
IFR-25 | Isophthalic type | Oxygen index above 28 | VEFR economical grade, good performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | Styrene food grade | Oxygen index 26 | Mainly used in meat processing and food processing plants |
OFR-25 | Orthophthalic type | Oxygen index above 28 | General acid and alkali environments |
OCR | Orthophthalic type | Oxygen index below 28 | OFR-25 economical grade, no flame retardancy requirement |
Coarse glass fiber selection
Code | Coarse sand grade | Recommended application |
E | E-glass fiber | For high-strength requirements and highly corrosive environments |
Filler type selection
Code | Filler type | Recommended application |
|---|---|---|
ATH | Aluminum hydroxide | Flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | No filler, pure resin | For highly corrosion-resistant applications |

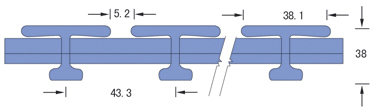

Standard panel size:
1220mm, 915mm width; 3050mm, 6100mm length
Load-bearing flat bar: 38mm
Open area: 12%
Approx. weight (including three-core strand): 19.6kg/m²
Linear load (unit: mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Ultimate |
|---|---|---|---|---|---|---|---|
(mm) | 150 | 300 | 450 | 750 | 1500 | 3000 | load |
| 450 | <0.25 | 0.25 | 0.25 | 0.51 | 1.02 | 1.78 | 8791 |
| 600 | <0.25 | 0.25 | 0.51 | 0.76 | 1.78 | 3.56 | 7033 |
| 900 | 0.51 | 1.02 | 1.52 | 2.79 | 5.33 | 10.7 | 4679 |
| 1200 | 1.27 | 2.54 | 3.56 | 6.1 | 12.2 | --- | 3516 |
Uniformly distributed load (unit: mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Ultimate |
|---|---|---|---|---|---|---|---|
(mm) | 450 | 950 | 1450 | 2400 | 4850 | 9500 | load |
| 450 | <0.25 | 0.25 | 0.25 | 0.51 | 1.02 | 1.78 | 19227 |
| 600 | 0.25 | 0.51 | 0.76 | 1.02 | 2.29 | 4.32 | 14396 |
| 900 | 1.02 | 2.03 | 3.05 | 5.08 | 10.2 | --- | 9614 |
| 1200 | 3.05 | 6.1 | 9.14 | --- | --- | --- | 5758 |
Features:
Flame retardant
High flame retardancy
Low smoke and low-toxicity emissions
High strength-to-weight ratio
Corrosion resistant
Low maintenance
Anti-slip
Non-conductive and non-heat-conductive
Easy to process
Impact resistance
UV resistance
Maintenance-free
Installation and accessories
Application scenarios
Pultruded grating T-1215 uses pultruded I-profiles and T-profiles as load-bearing bars, with solid tubes or rods as connecting rods. It is suitable for platforms, walkways, trench covers, stair treads and similar applications that require both load-bearing capacity and corrosion resistance. In humid or corrosive environments such as chemical processing, water treatment, electroplating and marine engineering, it can serve as an alternative to conventional metal grating. To confirm suitability for your specific operating conditions, please contact us with details of your service environment.
Selection guidance
Selection can be considered from several aspects: resin system, load-bearing direction, span and installation method. The resin type must match the corrosiveness and flame-retardant requirements of the environment; the specification and spacing of the load-bearing bars determine the load capacity; and the type of connecting rods affects overall stiffness. Different resin and fiber ratios correspond to different corrosion resistance and flame-retardant performance. We recommend providing the service medium, temperature range and load conditions so that we can help recommend a suitable configuration.
Product advantages
The pultrusion process arranges fibers continuously along the load direction, giving the product high strength and stiffness in the load-bearing direction, along with the common advantages of FRP materials: light weight, corrosion resistance and maintenance-free performance. The grating surface can be made in an anti-slip form, and it is easy to cut and adjust on site during installation. It does not rust easily over long-term use. Compared with molded grating, pultruded grating is better suited to applications with load and span requirements.
Inquiry guidance
For detailed specifications, resin options and supply information for pultruded grating T-1215, please contact us to obtain detailed specifications and a quotation. Please provide information such as the service environment, load requirements, dimensions and quantity, and we will provide targeted recommendations and commercial terms accordingly.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
