LM Wire Rope GB7x19
Please feel freely to contact with us for new price .
产品详情

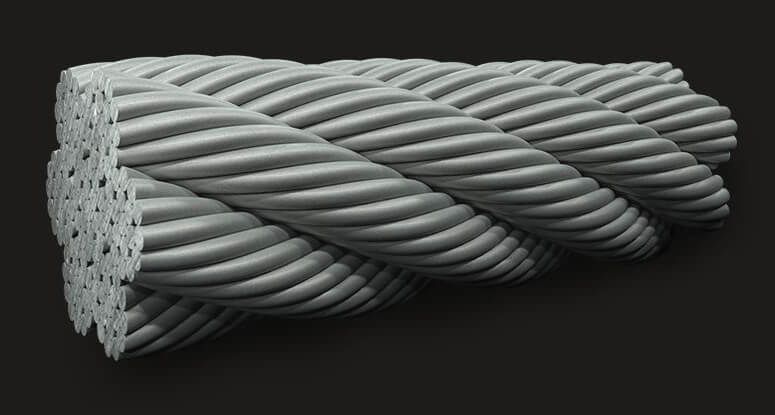

7x19 wire rope is widely used. Compared with 1x19 and 7x7, 7x19 has very flexible structure and high flexibility, so it is widely used in general engineering.
Surface treatment:Ungalv or Galvanized
Standard:GB/T 20118-2006

Applications
control cable
guardrail
standingringing
Moving rope
Steering cable
marine environment
Sewage treatment works
wire rope sling
Boat rope
Breaking Loads
diameter
| mass
|
Minimum breaking load
|
Minimum breaking load(1570 Mpa)
|
mm | kg/m | kN |
Kg |
3 | 0.03 | 5 | 509 |
4 | 0.06 | 8.89 | 906 |
5 | 0.09 | 13.9 | 1417 |
6 | 0.13 | 20 | 2039 |
7 | 0.18 | 27.3 | 2783 |
8 | 0.24 | 35.6 | 3630 |
10 | 0.37 | 55.6 | 5669 |
12 | 0.54 | 80 | 8157 |
14 | 0.73 | 109 | 11114 |
