LM Sealed Wire Rope GB6X19(9/9/1) IWRC
Please feel freely to contact with us for new price .
Product Details

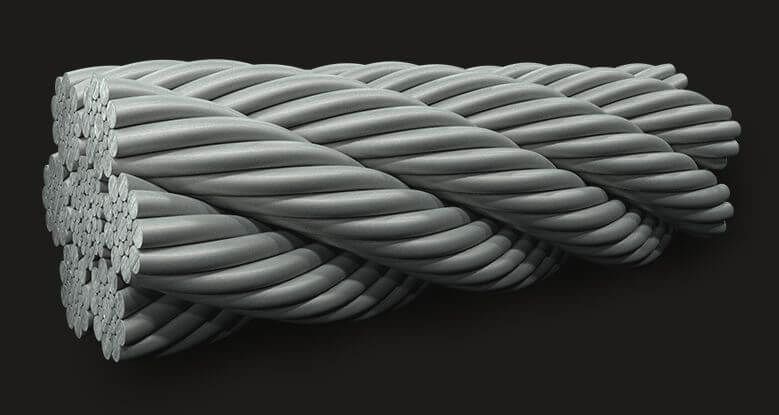

6x19 sealed construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). For applications that require higher wear resistance, 6x19 sealed wire ropes are more suitable than other 6x19 wire ropes.
Surface treatment：Ungalv or Galvanized
Standard:GB/T 20118-2006
.jpg?access_token=a97cb562-0422-4b61-a0dc-73fdaa5e1005 "LM Sealed Wire Rope GB6X19(9/9/1) IWRC")
Applications
Drilling ropes
Elevator rope
Wire rope slings
Derricking ropes
Pendant ropes
Crane rope
Sand, coring and swabbing lines
Trawl wraps / Pelagic sweeps
Ground cables
Oil well / Oil field
Excavator rope / Scraper rope
Fishing rope
Drag ropes
Breaking Loads
|
|
Min Breaking Loads |
Min Breaking Loads |
Min Breaking Loads | Min Breaking Loads |
Diameter | Weight |
(1770Mpa) |
(1770Mpa) |
(1960Mpa) |
(1960Mpa) |
mm | kg/m | KN | Kg | KN | Kg |
| 10 | 0.4 | 63 | 6427 | 69.8 | 7117 |
| 11 | 0.48 | 76.2 | 7776 | 84.4 | 8611 |
| 12 | 0.58 | 90.7 | 9255 | 101 | 10248 |
| 13 | 0.68 | 107 | 10862 | 118 | 12028 |
| 14 | 0.78 | 124 | 12597 | 137 | 13949 |
| 15 | 0.9 | 142 | 14461 | 157 | 16013 |
| 16 | 1.02 | 161 | 16453 | 179 | 18219 |
| 18 | 1.3 | 204 | 20824 | 226 | 23059 |
| 20 | 1.6 | 252 | 25708 | 279 | 28468 |
| 22 | 1.94 | 305 | 31107 | 338 | 34447 |
| 24 | 2.3 | 363 | 37020 | 402 | 40994 |
| 26 | 2.7 | 426 | 43448 | 472 | 48111 |
| 28 | 3.14 | 494 | 50389 | 547 | 55798 |
| 30 | 3.6 | 567 | 57845 | 628 | 64054 |
| 32 | 4.1 | 645 | 65814 | 715 | 72879 |
| 34 | 4.62 | 728 | 74298 | 807 | 82274 |
| 36 | 5.18 | 817 | 83296 | 904 | 92238 |
| 38 | 5.78 | 910 | 92809 | 1008 | 102771 |
| 40 | 6.4 | 1008 | 102835 | 1116 | 113874 |
| 42 | 7.06 | 1112 | 113376 | 1231 | 125546 |
General Engineering Ropes
绿盟LM专门供应多股光面或镀锌钢丝绳。我们的产品直径从0.5mm到64mm不等，包括带纤维芯和钢芯的1X19、7X7、6X19、7X19、6X36、8X19、8X36、19X7和35X7各种规格。除这些常规钢丝绳外，我们还可以提供优质的特种钢丝绳。
Most wire ropes are used in harsh conditions and must have resistance to extrusion, bending fatigue and abrasion. All of our wire ropes are guaranteed to achieve the highest level , maximizing the service life to increase the productivity of end users. We ensure that all materials are produced in accordance with the best standards in the wire rope industry. Each wire rope can be supplied with a thimble eyes, swaged ends and wedge sockets ,as well as many other assembly components.In addition, we also provide customized services, our team of engineers can manufacture wire ropes of your required specifications. All materials are certified, traceable, and comply with ISO9001 standards.
选型指导
选型时需综合考虑载荷要求、使用环境、耐磨性及柔韧性等因素。6x19密封钢丝绳提供FC（纤维芯）和IWRC（独立钢丝绳芯）两种芯型，并可选光面或镀锌表面处理，以适应不同工况。如需具体选型建议，欢迎联系我们，我们的技术团队将根据您的应用场景提供专业指导。
产品优势
6x19密封钢丝绳采用国标GB/T 20118-2006生产，具有优异的断裂载荷特性，相比其他6x19钢丝绳更耐磨，适用于对耐磨性要求较高的场合。其结构设计兼顾强度与柔韧性，广泛用于钻绳、电梯升降绳、起重绳等多种工程领域。
询盘引导
如果您对6x19密封钢丝绳的规格、性能或应用有任何疑问，或需要获取详细技术参数与报价，欢迎随时联系我们。请提供您的具体需求（如直径、芯型、表面处理、长度等），我们将为您提供定制化的解决方案。
