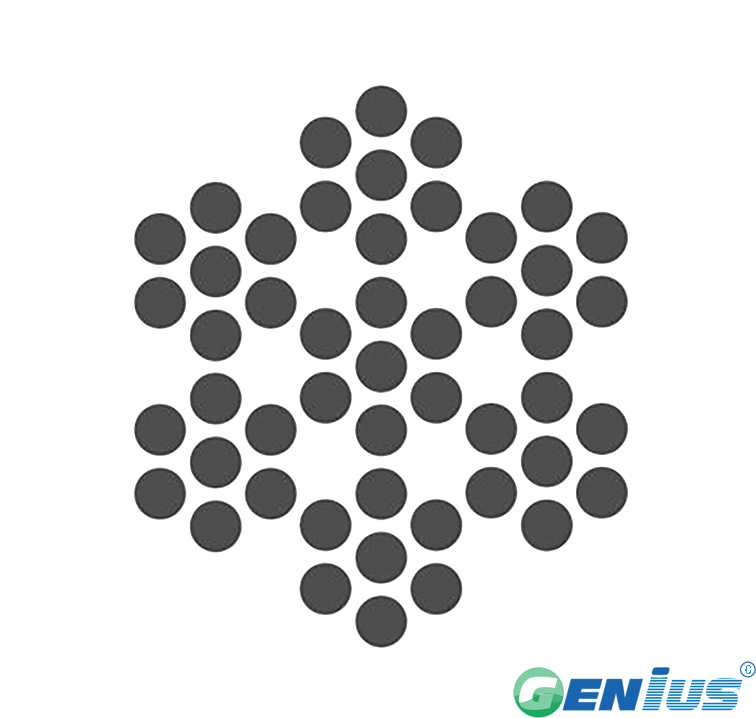

LM Marine Grade stainless steel Wire Rope GB7x7 (6/1)
Please feel freely to contact with us for new price .
产品详情
7x7不锈钢钢丝绳比1x19更灵活，比7x19更坚固。在较小直径内，7x7具有优异的断裂载荷和灵活性，在整个海洋工业以及一般工程应用中广泛使用。
Surface treatment：Ungalv or Galvanized
Standard:GB/T 20118-2006
Applications
Control cables
Guardrail
Standing rigging
Running rigging
Steering cable
Marine/Saltwater environment
Sewage treatment works
Wire rope slings
Davit ropes
Breaking Loads
Diameter
| Weight
|
Min Breaking Loads(1570Mpa)
|
Min Breaking Loads(1570Mpa)
|
mm | kg/m | KN |
Kg |
| 1 | 0.004 | 0.59 | 60 |
| 2 | 0.016 | 2.37 | 241 |
| 2.5 | 0.023 | 3.71 | 378 |
| 3 | 0.034 | 5.34 | 544 |
| 4 | 0.06 | 9.49 | 967 |
| 5 | 0.1 | 14.8 | 1509 |
| 6 | 0.14 | 21.4 | 2182 |
| 7 | 0.19 | 29.1 | 2967 |
| 8 | 0.24 | 38 | 3874 |
| 10 | 0.38 | 59.3 | 6046 |
| 12 | 0.55 | 85.4 | 8708 |
| 14 | 0.74 | 117 | 11930 |
General Engineering Ropes
GREENLOGY TEC(LM) specializes in supplying multiple strands of ungalvanised and galvanized steel wire ropes. Our products range from 0.5mm to 64mm, including 1X19, 7X7, 6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 with both Fibre Core and Steel Cores. In addition to these conventional steel wire ropes, we can also provide high-quality special steel wire ropes.
Most wire ropes are used in harsh conditions and must have resistance to extrusion, bending fatigue and abrasion. All of our wire ropes are guaranteed to achieve the highest level , maximizing the service life to increase the productivity of end users. We ensure that all materials are produced in accordance with the best standards in the wire rope industry. Each wire rope can be supplied with a thimble eyes, swaged ends and wedge sockets ,as well as many other assembly components.In addition, we also provide customized services, our team of engineers can manufacture wire ropes of your required specifications. All materials are certified, traceable, and comply with ISO9001 standards.
选型指导
LM 船用级不锈钢钢丝绳 7x7（6/1）适用于一般工程与海洋环境，选型时需结合实际工况确认所需直径、表面处理（光面或镀锌）及结构。不同规格的柔韧性与承载特性各异，欢迎联系我们获取详细规格与报价以及选型建议。
产品优势
7x7 结构在较小直径内兼具优异的断裂载荷与柔韧性，比 1x19 更灵活，比 7x19 更坚固，适合控制锚索、护栏、固定支索、动索等多种应用。产品符合国标 GB/T 20118-2006，可提供光面或镀锌表面处理。
询盘引导
如需了解直径范围、重量、最小断裂荷载（1570MPa）等详细参数，或定制特种钢丝绳，欢迎联系我们获取详细规格与报价。请提供所需直径、表面处理、应用场景及数量，我们将为您提供合适方案。
