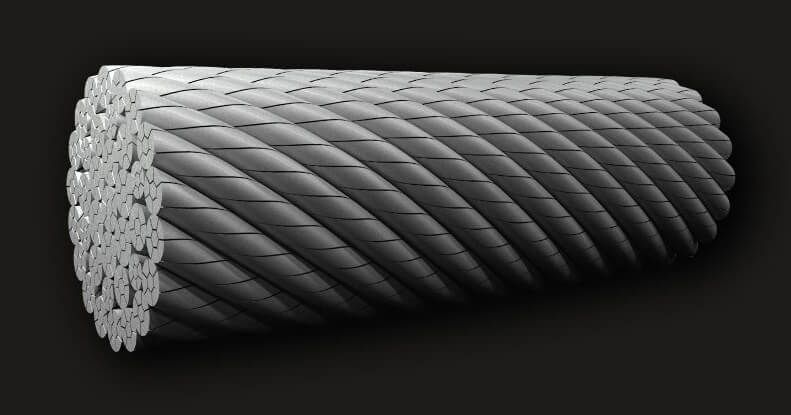

LM Compacted Non-rotating Wire Rope GB37X7 (6/1)
Please feel freely to contact with us for new price .
Product Details
37X7 is available in both galvanised and ungalvanised finish depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different finishes and lubrications as well as being available with plastic impregnated or in compacted constructions.
Surface treatment：Ungalv or Galvanized
Standard:GB/T 20118-2006
Applications
Offshore crane rope
Deck crane rope
Pillar crane rope
Whip hoist rope
Main hoist rope
Crane rope
Breaking Loads
|
|
Min Breaking Loads |
Min Breaking Loads |
Min Breaking Loads | Min Breaking Loads |
Diameter | Weight |
(1770Mpa) |
(1770Mpa) |
(1960Mpa) |
(1960Mpa) |
mm | kg/m | KN | Kg | KN | Kg |
| 14 | 0.95 | 154 | 15708 | 171 | 17442 |
| 15 | 1.09 | 177 | 18054 | 196 | 19992 |
| 16 | 1.25 | 203 | 20706 | 225 | 22950 |
| 18 | 1.58 | 257 | 26214 | 285 | 29070 |
| 19 | 1.78 | 290 | 29580 | 321 | 32742 |
| 20 | 1.95 | 318 | 32436 | 352 | 35904 |
| 21 | 2.15 | 349 | 35598 | 387 | 39474 |
| 22 | 2.37 | 385 | 39270 | 426 | 43452 |
| 23 | 2.56 | 416 | 42432 | 461 | 47022 |
| 24 | 2.81 | 457 | 46601 | 506 | 51612 |
| 25 | 3.1 | 504 | 51510 | 558 | 56916 |
| 26 | 3.3 | 537 | 54774 | 595 | 60690 |
| 28 | 3.8 | 618 | 63036 | 685 | 69870 |
| 29 | 4.1 | 667 | 68034 | 738 | 75276 |
| 30 | 4.45 | 724 | 73848 | 802 | 81804 |
| 32 | 4.96 | 806 | 82212 | 892 | 90984 |
General Engineering Ropes
GREENLOGY TEC(LM) specializes in supplying multiple strands of ungalvanised and galvanized steel wire ropes. Our products range from 0.5mm to 64mm, including 1X19, 7X7, 6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 with both Fibre Core and Steel Cores. In addition to these conventional steel wire ropes, we can also provide high-quality special steel wire ropes.
Most wire ropes are used in harsh conditions and must have resistance to extrusion, bending fatigue and abrasion. All of our wire ropes are guaranteed to achieve the highest level , maximizing the service life to increase the productivity of end users. We ensure that all materials are produced in accordance with the best standards in the wire rope industry. Each wire rope can be supplied with a thimble eyes, swaged ends and wedge sockets ,as well as many other assembly components.In addition, we also provide customized services, our team of engineers can manufacture wire ropes of your required specifications. All materials are certified, traceable, and comply with ISO9001 standards.
选型指导
请根据您的具体应用场景、所需直径、表面处理（光面或镀锌）及断裂荷载要求进行选型。我们可提供定制化的表面处理、润滑、包塑和压实服务，欢迎联系我们获取详细规格与报价。
产品优势
LM压实不旋转钢丝绳（GB37X7）具有更高的断裂荷载和更优的耐磨特性，适用于海上起重机、甲板起重、立柱吊车等严苛环境。其不旋转设计可减少吊装过程中的扭转，提升操作安全性和稳定性。
询盘引导
如需获取更多产品信息、技术参数或商务合作，请通过网站或邮箱联系我们。我们期待为您提供专业的解决方案和报价。
