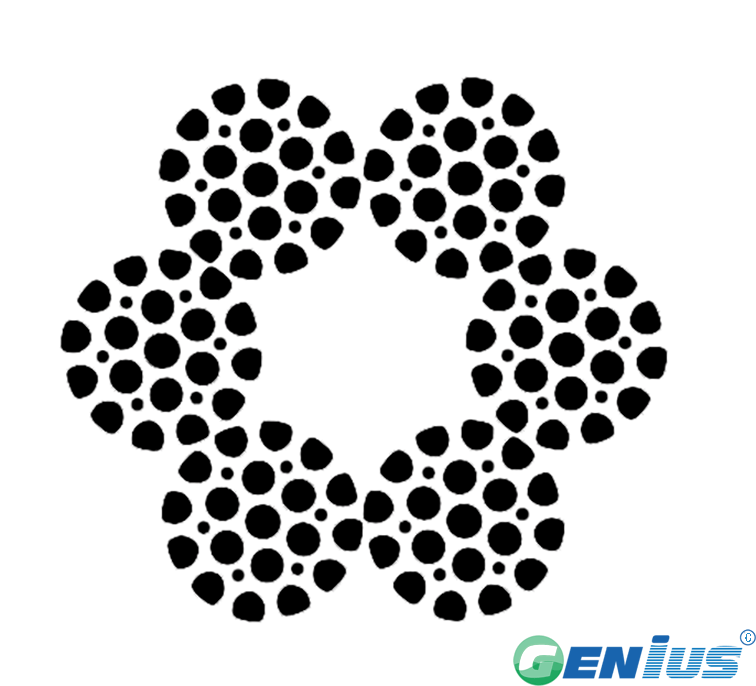

LM(Coating)Filler Compacted Wire Rope GB6X19 (12/6+6F/1) FC
Please feel freely to contact with us for new price .
Product Details

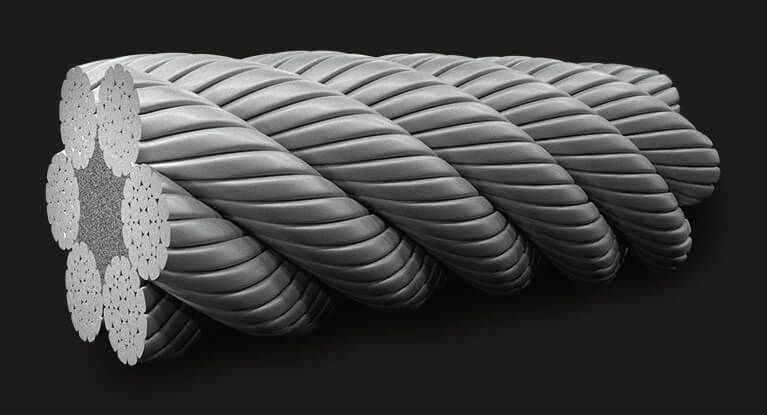

6X19 (Coating)filler compacted wire rope (often referred to as 6X25) is available with both FC (fibre core) and IWRC (independent wire rope core). 6X19 filler wire rope can work from 1 tonne load up to 5 tonnes. It is used in the North Sea Oil industry .
Surface treatment:Ungalv or Galvanized
Standard:GB/T 20118-2006

Applications
Drilling ropes
Elevator rope
Wire rope slings
Derricking ropes
Derricking ropes
Crane rope
Sand, coring and swabbing lines
Trawl wraps / Pelagic sweeps
Ground cables
Oil well / Oil field
Excavator rope / Scraper rope
Fishing rope
Drag ropes
Breaking Loads
|
|
Min Breaking Loads |
Min Breaking Loads |
Min Breaking Loads | Min Breaking Loads |
Diameter | Weight |
(1770Mpa) |
(1770Mpa) |
(1960Mpa) |
(1960Mpa) |
mm | kg/m | KN | Kg | KN | Kg |
| 14 | 0.7 | 114 | 11677 | 127 | 12930 |
| 16 | 0.92 | 150 | 15252 | 166 | 16889 |
| 18 | 1.16 | 189 | 19303 | 210 | 21375 |
| 20 | 1.44 | 234 | 23831 | 259 | 26389 |
| 22 | 1.74 | 283 | 28835 | 313 | 31931 |
| 24 | 2.07 | 336 | 34317 | 373 | 38000 |
| 26 | 2.43 | 395 | 40274 | 437 | 44598 |
| 28 | 2.82 | 458 | 46709 | 507 | 51723 |
| 30 | 3.23 | 526 | 53620 | 582 | 59376 |
| 32 | 3.68 | 598 | 61008 | 662 | 67556 |
| 34 | 4.15 | 675 | 68872 | 748 | 76265 |
| 36 | 4.65 | 757 | 77213 | 838 | 85501 |
| 38 | 5.18 | 843 | 86030 | 934 | 95265 |
| 40 | 5.74 | 935 | 95325 | 1035 | 105557 |
| 42 | 6.33 | 1030 | 105095 | 1141 | 116377 |
| 44 | 6.95 | 1131 | 115343 | 1252 | 127724 |
| 46 | 7.6 | 1236 | 126067 | 1369 | 139600 |
| 48 | 8.27 | 1346 | 137268 | 1490 | 152003 |
General Engineering Ropes
GREENLOGY TEC(LM) specializes in supplying multiple strands of ungalvanised and galvanized steel wire ropes. Our products range from 0.5mm to 64mm, including 1X19, 7X7, 6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 with both Fibre Core and Steel Cores. In addition to these conventional steel wire ropes, we can also provide high-quality special steel wire ropes.
Most wire ropes are used in harsh conditions and must have resistance to extrusion, bending fatigue and abrasion. All of our wire ropes are guaranteed to achieve the highest level , maximizing the service life to increase the productivity of end users. We ensure that all materials are produced in accordance with the best standards in the wire rope industry. Each wire rope can be supplied with a thimble eyes, swaged ends and wedge sockets ,as well as many other assembly components.In addition, we also provide customized services, our team of engineers can manufacture wire ropes of your required specifications. All materials are certified, traceable, and comply with ISO9001 standards.
选型指导
该产品为LM(Coating)Filler Compacted Wire Rope GB6X19(12/6+6F/1)FC结构,绳芯为纤维芯,适用于需要一定柔韧性与承载能力的吊装及牵引场景。选型时建议结合使用工况、所需直径、破断荷载要求及表面处理方式(光面或镀锌)进行匹配,欢迎联系我们获取详细规格与报价,由技术人员协助确认适配型号。
产品优势
该钢丝绳采用压实填料结构,在保证破断荷载的同时兼顾柔韧性与抗磨损性能,表面可做光面或镀锌处理以适应不同环境。符合GB/T 20118-2006标准,常见于钻绳、电梯升降绳、吊索及起重等多类工程应用,欢迎联系我们了解具体优势与适用方案。
询盘引导
如需了解该产品的具体直径、重量、破断荷载对应参数及表面处理选项,欢迎联系我们获取详细规格与报价。请提供使用场景、所需直径及数量等信息,我们将结合需求推荐合适规格并协助完成选型。
