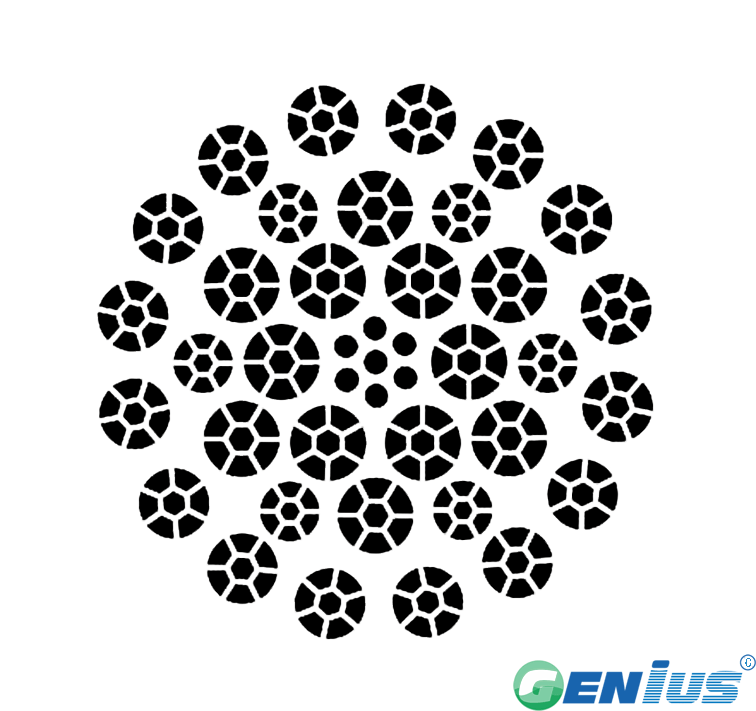

LM (Coating) Comp. Rotation Resistant Wire Rope GB35X7 (6/1)
Please feel freely to contact with us for new price .
产品详情

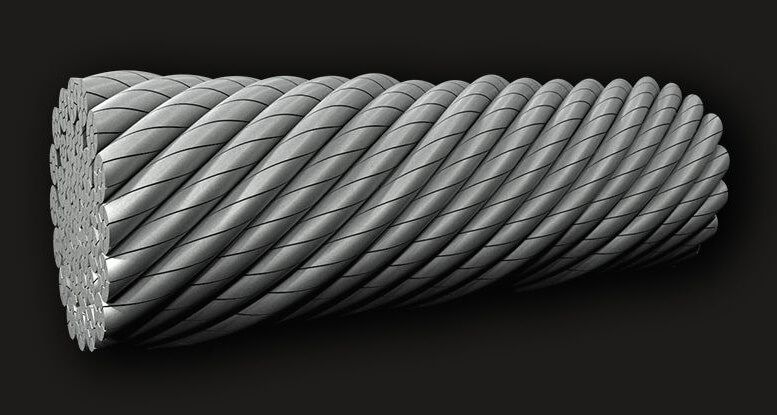

35x7 (coating) comp. rotation resistant wire rope construction is available in both galvanised and ungalvanised finish,including 32X7 and 37X7.Depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different finishes and lubrications as well as being available with plastic impregnated or in compacted constructions.
Surface treatment:Ungalv or Galvanized
Standard:GB/T 20118-2006

Applications
Offshore crane rope
Deck crane rope
Pillar crane rope
Whip hoist rope
Main hoist rope
Crane rope
Breaking Loads
|
Min Breaking Loads |
Min Breaking Loads |
Min Breaking Loads | Min Breaking Loads | |
Diameter | Weight |
(1770Mpa) |
(1770Mpa) |
(1960Mpa) |
(1960Mpa) |
mm | kg/m | KN | Kg | KN | Kg |
| 12 | 0.7 | 115 | 11699 | 127 | 12961 |
| 13 | 0.82 | 135 | 13730 | 149 | 15212 |
| 14 | 0.95 | 156 | 15924 | 173 | 17642 |
| 15 | 1.09 | 179 | 18280 | 199 | 20252 |
| 16 | 1.24 | 204 | 20798 | 226 | 23043 |
| 18 | 1.57 | 258 | 26323 | 286 | 29163 |
| 20 | 1.94 | 319 | 32497 | 353 | 36004 |
| 22 | 2.35 | 386 | 39322 | 427 | 43565 |
| 24 | 2.79 | 459 | 46796 | 508 | 51846 |
| 26 | 3.28 | 538 | 54921 | 597 | 60847 |
| 28 | 3.8 | 624 | 63695 | 692 | 70568 |
| 30 | 4.37 | 717 | 73119 | 794 | 81009 |
General Engineering Ropes
GREENLOGY TEC(LM) specializes in supplying multiple strands of ungalvanised and galvanized steel wire ropes. Our products range from 0.5mm to 64mm, including 1X19, 7X7, 6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 with both Fibre Core and Steel Cores. In addition to these conventional steel wire ropes, we can also provide high-quality special steel wire ropes.
Most wire ropes are used in harsh conditions and must have resistance to extrusion, bending fatigue and abrasion. All of our wire ropes are guaranteed to achieve the highest level , maximizing the service life to increase the productivity of end users. We ensure that all materials are produced in accordance with the best standards in the wire rope industry. Each wire rope can be supplied with a thimble eyes, swaged ends and wedge sockets ,as well as many other assembly components.In addition, we also provide customized services, our team of engineers can manufacture wire ropes of your required specifications. All materials are certified, traceable, and comply with ISO9001 standards.
选型指导
35x7(有涂层)压实型钢丝绳适用于海上起重机、甲板起重、立柱吊车、起重吊索、主提升钢丝绳和吊索等工程场景。选型时需综合考虑工作载荷、使用频率、环境腐蚀条件及滑轮与卷筒的匹配要求。我们可提供32x7、37x7等规格以及镀锌或不镀锌、表面处理、润滑、包塑和压实等选项,欢迎联系我们获取详细规格与选型支持。
产品优势
该钢丝绳采用压实型结构,具有较高的断裂荷载和良好的耐磨特性,适用于重载和频繁作业的起重场合。表面可进行光面或镀锌处理,并可根据需求进行润滑或包塑,以增强耐腐蚀性和使用寿命。具体性能数据请参考技术参数表或联系我们索取详细资料。
询盘引导
如需了解最小起订量、价格、交货期或定制方案,欢迎随时联系我们。请提供所需直径、规格、表面处理要求及数量,我们将尽快为您提供专业报价和技术支持。
