FRP structural shapes profile is made of glass fiber reinforced material, resin as adhesive, glass fiber cloth as a package reinforcement layer, through the thorough penetration, in the metal mold heating, molding, curing, drawing in the traction machine pulled A new type of composite material, with good physical properties, widely used in high strength, large span Situation.
Varieties | Size(mm) | Weight(kg/m) | Size(in)
| Weight(lbs/in) |

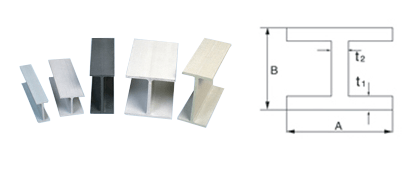

H beam | A*B*T1*T2 | A*B*T1*T2 | ||
| HB76 | 76*76*6.4*6.4 | 2.67 | 2.99*2.99*0.25*0.25 | 5.73 |
| HB102A | 102*102*6.4*6.4 | 3.59 | 4.02*4.02*0.25*0.25 | 7.91 |
| HB102B | 102*102*8*8 | 4.5 | 4.02*4.02*0.31*0.31 | 9.92 |
| HB152A | 152*152*6.4*6.4 | 5.43 | 5.98*5.98*0.25*0.25 | 11.97 |
| HB152B | 152*152*9.5*9.5 | 8.1 | 5.98*5.98*0.37*0.37 | 17.86 |
| HB203A | 203*203*9.5*9.5 | 10.8 | 7.99*7.99*0.37*0.37 | 23.81 |
| HB203B | 203*203*12.7*12.7 | 14.4 | 7.99*7.99*0.5*0.5 | 31.66 |
| HB203C | 203*203*6.4*6.4 | 7.5 | 7.99*7.99*0.25*0.25 | 16.53 |
| HB254A | 254*254*9.5*9.5 | 13.6 | 10*10*0.37*0.37 | 29.98 |
| HB254B | 254*254*12.7*12.7 | 18 | 10*10*0.5*0.5 | 39.77 |
| HB305 | 305*305*12.7*12.7 | 21.5 | 12.01*12.01*0.5*0.5 | 47.4 |
Markets
Architectural
Bridge & Highway
Chemical
Food & Beverage
Manufacturing
Metals & Mining
Microelectronics
Oil & Gsa
Pharmaceutical
Power
Pulp & Paper
Recreation
Telecommunications
Transportation
Water & Wastewater
The characteristics:
Corrosion Resistant
Low Maintenance
Fire Retardant
Low Install Cost
Heavy Metal Safe
Long Service Life
Electrically & Thermally Non Conductive
High Strength-to-Weight Ratio
Introduction of raw materials——Resin type
Code | Resin type | Flame retardant property | Standard color | Recommended usage occasions |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Grass green,Yellow, Grey, Orange | Acid, alkali and other corrosive harsh environment |
IFR-25 | Meta benzene | Oxygen index 28 or above | Grass green,Yellow, Grey | A VEFR type economy, and excellent, moderate acid alkali and solvent |
OFR-25 | Ortho type | Oxygen index 28 or above | Grass green,Yellow, Grey | General acid and alkali environment |
Application:
Genius© pultruded fiberglass structural shapes from Genius Composite Inc. are used in a wide range of applications and provide a unique combination of corrosion resistance, high strength, dimensional stability and light weight, along with thermal and electric non-conductivity. Durable Genius shapes provide years of low maintenance service in areas where steel, aluminum or wood components are traditionally specified. Today ,these shapes are often used in highly corrosive applications where stainless steel and other expensive components were once required.
Genius Shapes
Mechanical Properties | ASTM | Units | Value | Units | Value |
Tensile Stress, LW | D-638 | psi | 30000 | kgf/m² | 21092086 |
Tensile Stress, CW | D-638 | psi | 7000 | kgf/m² | 4921487 |
Tensile Modulus, LW | D-638 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Tensile Modulus, CW | D-638 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Compressive Stress, LW | D-695 | psi | 30000 | kgf/m² | 21092086 |
Compressive Stress, CW | D-695 | psi | 15000 | kgf/m² | 10546043 |
Compressive Modulus, LW | D-695 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Compressive Modulus, CW | D-695 | 10^6psi | 1 | 10^6kgf/m² | 703 |
Flexural Stress, LW | D-790 | psi | 30000 | kgf/m² | 21092086 |
Flexural Stress, CW | D-790 | psi | 10000 | kgf/m² | 7030695 |
Flexural Modulus, LW | D-790 | 10^6psi | 1.8 | 10^6kgf/m² | 1266 |
Flexural Modulus, CW | D-790 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Modulus of Elasticity | Full Section | 10^6psi | 2.8 | 10^6kgf/m² | 1969 |
Shear Modulus | --- | 10^6psi | 0.45 | 10^6kgf/m² |
316 |
Short Beam Shear | D-2344 | psi | 4500 | kgf/m² | 3163813 |
Punch Shear | D-732 | psi | 10000 | kgf/m² | 7030695 |
Notched Izod Impact,LW | D-256 | ft.-lbs./in. | 25 | kg/m | 3.46 |
Notched Izod Impact,CW | D-256 | ft.-lbs./in. | 4 | kg/m | 0.55 |
Excludes Round Rod and Square Bar
Physical Properties | ASTM | Units | Value |
Barcoal | D-495 | --- | 45 |
24 Hour Water Absorption | D-570 | %max | 0.45 |
Density | D-792 | lbs./in.³ | 0.062-0.07 |
Coefficient of Thermal Expansion,LW | D-696 | 10^-6in./in./℃ | 8 |
Flammability Properties | ASTM | Units | Value |
Tunnel test* | E-84 | Flame Spread | 25 max |
Flammability* | D-635 | --- | Non-Burning |
Electrical Properties | ASTM | Units | Value |
Arc Resistance,LW | D-495 | seconds | 120 |
Dielectric Strength,LW | D-149 | kv./in. | 35 |
Dielectric Strength,PF | D-149 | volts/mil | 200 |
Dielectric Constant,PF | D-150 | @60hz | 5 |
LW=Lengthwise, CW=Crosswise,PF=Perpendicular to Laminate Face
*Pertains to ISOFR and VEFR only
Application Scenarios
FRP H-beams are commonly used in load-bearing structures requiring strength, corrosion resistance and insulation, such as platform frames, walkway supports, cable trays, and beam-column members in corrosive environments like chemical, water treatment and marine applications. Their lightweight, high-strength characteristics suit large spans and situations requiring reduced maintenance. Contact us for detailed specifications and quotations.
Selection Guide
During selection, consider span, load conditions, installation method and service environment, and evaluate comprehensively against the A×B×T1×T2 cross-sectional dimensions and unit weight. If unsure about the suitable specification, contact us and our technical team will assist in confirming detailed specifications and quotations.
Product Advantages
FRP H-beams are pultruded from glass fiber reinforced materials and resin, featuring lightweight, high strength, corrosion resistance, insulation and ease of cutting and installation, reducing later maintenance. Compared with traditional metal profiles, they are more suitable for harsh environments such as humidity and acid-alkali conditions. Contact us for detailed specifications and quotations.
Inquiry Guide
For cross-sectional specifications, lengths, colors and matching connection solutions for FRP H-beams, contact us and we will provide detailed specifications and quotations based on your project requirements. Please inform us of the service environment and quantity so we can respond faster.
