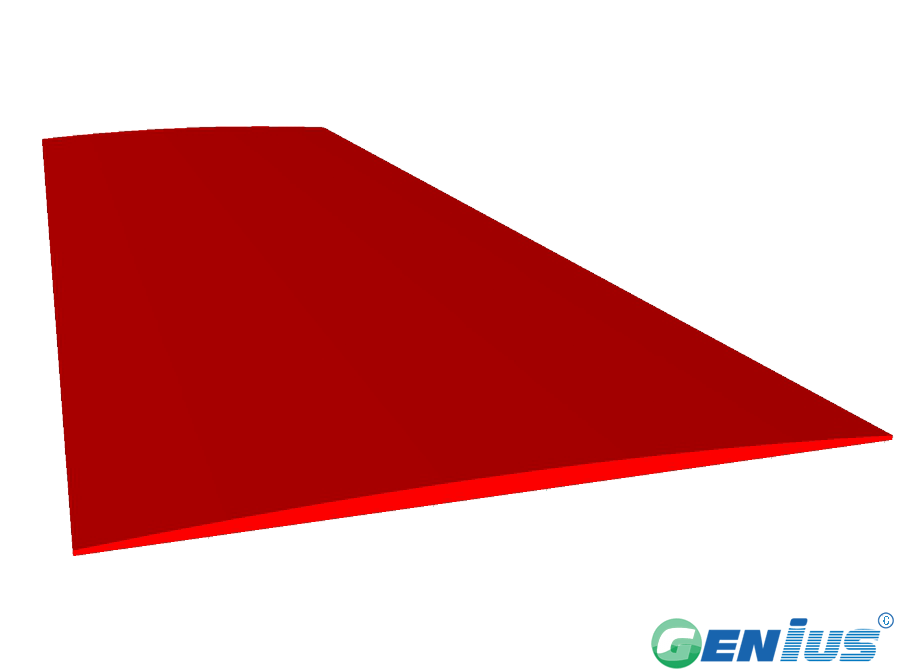

Structural Profiles - Curved Flat Bar (Vinyl Ester)
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
Pultruded FRP profiles are a new type of composite material made from glass fiber reinforcement, with resin as the binder and glass fiber cloth as the covering reinforcement layer. After thorough impregnation, the material is heated, formed and cured in a metal mold and then pulled by a pulling machine. With good physical properties, it is widely used in high-strength and long-span applications.
Type | Size (mm) | Weight (kg/m) | Size (in) | Weight (lbs/in) |
|---|---|---|---|---|
Fillet radius | Width × thickness | Width × thickness | ||
| FS50A | 50*3.2 | 0.29 | 2" x 1/8" | 0.64 |
| FS60A | 60*3.2 | 0.36 | 19/8" x 1/8" | 0.79 |
| FS70 | 70*4 | 0.54 | 19" x 3/16" | 1.19 |
| FS90A | 90*3.2 | 0.54 | 7/2" x 1/8" | 1.19 |
| FS100 | 100*3.2 | 0.6 | 4" x 1/8" | 1.32 |
| FS120 | 120*3 | 0.7 | 19/4" x 1/8" | 1.54 |
