Pultruded Grating I-4010
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
Pultruded FRP grating is made using pultruded "I"-shaped and "T"-shaped profiles as load-bearing bars and solid tubes or rods as connecting rods, assembled through a specific assembly process into grating with gaps in the panel surface.
Name | Contact Information | Type |
|---|---|---|
Resin | 25%
| OFR-25,IFR-25,VEFR-25 |
Glass Fiber | 65%
| E |
Filler |
8% | ATH,PR |
Other | 2%
| --- |
Code | Resin Type | Flame Retardant Performance | Recommended Applications |
|---|---|---|---|
MP-5 | Phenolic Type | Oxygen index up to about 80 | Low toxicity and high flame retardancy, for applications with very high fire safety requirements |
VEFR-25 | Vinyl Type | Oxygen index 28 and above | Harsh environments with strong corrosion such as acids and alkalis |
VEFR-10 | Vinyl Type | Oxygen index above 35 | Applications with high flame retardancy requirements and strong acids and alkalis that also require good performance |
IFR-25 | Isophthalic Type | Oxygen index 28 and above | VEFR economical type, good performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | styrene-based (benzene-type) food grade | oxygen index 26 | mainly used in meat processing and food processing plants |
OFR-25 | orthophthalic type | Oxygen index 28 and above | general acid and alkali environments |
OCR | orthophthalic type | oxygen index below 28 | OFR-25 economical type, no flame-retardant requirement |
coarse glass fiber option
Code | coarse grit type | Recommended Applications |
E | E-glass grit | for applications requiring high strength and high corrosion resistance |
filler type selection
Code | filler type | Recommended Applications |
|---|---|---|
ATH | aluminum hydroxide | flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | no filler, pure resin | for high corrosion-resistant applications |
Standard panel size:
1220mm, 915mm wide; 3050mm, 6100mm long

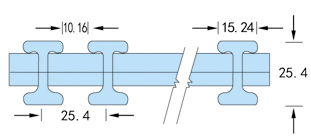

Load-bearing bar: 25mm
Open area: 50%
Approx. weight (including three cross bars): 17.8kg/m²

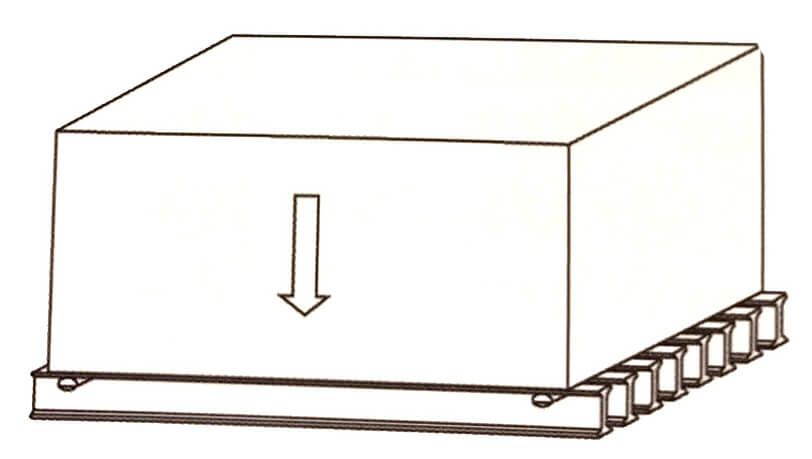

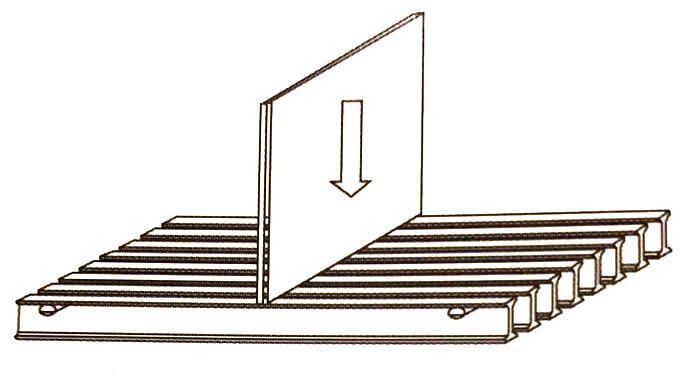

Line load (unit: mm)
Spacing |
kg/m |
kg/m |
kg/m |
kg/m |
kg/m |
kg/m | Limit value |
|---|---|---|---|---|---|---|---|
(mm) | 300 | 450 | 750 | 1500 | 3000 | 5950 | Load |
| 450 | 0.38 | 0.58 | 1.02 | 2.03 | 4.06 | 7.62 | 16593 |
| 600 | 0.95 | 1.56 | 2.54 | 4.57 | 8.89 | 17.5 | 12959 |
| 900 | 3.09 | 4.64 | 7.73 | 15.5 | 30.9 | --- | 8639 |
| 1200 | 5.84 | 8.89 | 14.7 | 29.5 | 59.2 | --- | 6420 |
Uniform load (unit: mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit value |
|---|---|---|---|---|---|---|---|
(mm) | 1000 | 1900 | 3900 | 7000 | 9500 | 19500 | Load |
| 450 | 0.85 | 1.76 | 3.22 | 5.63 | 7.25 | 12.1 | 72325 |
| 600 | 1.91 | 3.71 | 7.56 | 12.9 | 16.5 | --- | 42515 |
| 900 | 6.57 | 12.8 | 23.3 | --- | --- | --- | 18863 |
| 1200 | 14.5 | --- | --- | --- | --- | --- | 10507 |
Features:
Flame retardant
High flame retardancy
Low smoke and low toxicity emissions
High strength-to-weight ratio
Corrosion resistant
Low maintenance
Anti-slip
Electrical insulation and thermal non-conductivity
Easy to process
Impact resistance
UV resistance
Maintenance-free
Installation and accessories
Application scenarios
Pultruded Grating I-4010 is suitable for platforms, walkways, trench covers, stair treads and similar applications that require both load-bearing capacity and corrosion resistance, and is commonly used in chemical, water treatment, power and marine engineering environments. Different resin systems correspond to different media and temperature conditions; please contact us to confirm suitability based on your specific operating conditions.
Selection guide
When selecting, first define the load-bearing requirements, span, corrosive media and flame-retardant requirements, then choose the resin type, grating thickness and mesh size accordingly. The OFR, IFR, VEFR and phenolic systems in the table each have their own strengths in flame retardancy and corrosion resistance; please contact us for detailed specifications and selection advice.
Product advantages
Pultruded grating is assembled with pultruded I-shaped and T-shaped profiles as load-bearing bars and solid tubes or rods as connecting rods, giving it strong longitudinal load-bearing capacity and high stiffness, as well as light weight, corrosion resistance and easy cutting and installation. Its surface is slip-resistant and requires little maintenance, making it suitable as a replacement for metal grating.
Inquiry guidance
For detailed specifications, resin options and quotations for Pultruded Grating I-4010, please contact us and provide your operating conditions and dimensional requirements; we will recommend a suitable solution.
Operating environment
- Pultruded Grating I-4010 is assembled from pultruded "I"-shaped load-bearing bars and solid tube or rod connecting rods, with gaps in the panel surface. It is suitable for outdoor platforms, walkways and various open-air steel structures, where rainwater and wash-down water can drain quickly through the gaps and ponding is unlikely.
- This product is suitable for industrial environments with acid and alkali vapors, humidity and chemical media splashes; the specific resin type can be selected according to the media conditions, for example vinyl ester type for highly corrosive applications, and isophthalic and orthophthalic types for general acid and alkali environments. Please determine the selection based on the type and concentration of the media.
- For applications with fire safety requirements, flame-retardant resin systems can be selected, for example phenolic type for areas with low toxicity and high flame-retardant requirements, and vinyl ester and isophthalic flame-retardant types for corrosive environments with higher flame-retardant requirements.
- For areas such as food processing that require a clean surface, styrene-based food-grade resin can be selected, and the panel surface can be grit-surface, smooth or anti-slip grooved according to anti-slip needs; please contact us to confirm the specific ambient temperature, humidity and media parameters.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
