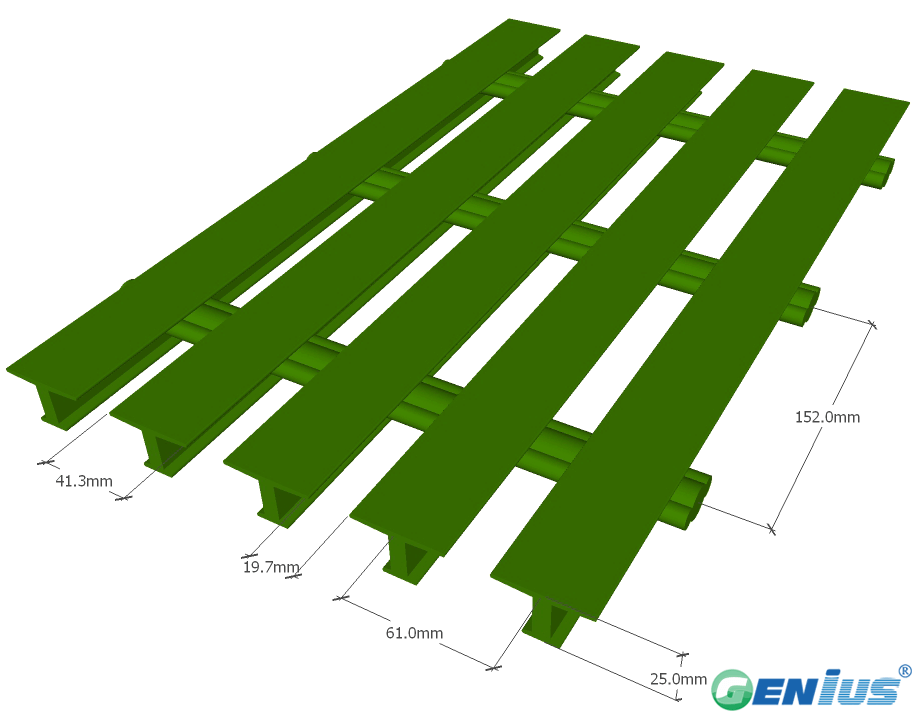

拉挤格栅 T-3310
Please feel freely to contact with us for new price .
Genius FRP
Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

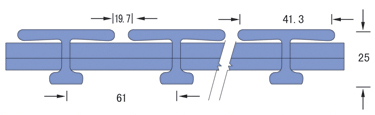

Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length
Bearing Bar: 25mm
Open Area: 33%
Approx Weight (With three-core shoots): 11.2kg/m²
Liner load（units:mm）
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
(mm) | 300 | 450 | 750 | 1500 | 3000 | 5950 | Load |
| 450 | 0.58 | 0.86 | 1.45 | 2.87 | 5.74 | --- | 10309 |
| 600 | 1.27 | 1.93 | 3.23 | 6.45 | --- | --- | 7731 |
| 900 | 4.01 | 5.99 | 10.1 | --- | --- | --- | 5024 |
| 1200 | 8.99 | --- | --- | --- | --- | --- | 3620 |
Uniform load（units：mm）
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
(mm) | 1000 | 1900 | 3900 | 7000 | 9500 | 19500 | Load |
| 450 | 0.56 | 1.07 | 2.13 | 4.04 | 5.23 | --- | 45076 |
| 600 | 1.63 | 3.23 | 6.54 | 12.1 | --- | --- | 25363 |
| 900 | 7.52 | 15 | --- | --- | --- | --- | 10971 |
| 1200 | --- | --- | --- | --- | --- | --- | 5938 |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories
应用场景
拉挤格栅 T-3310 适用于对承重、耐腐蚀与通风排水有综合要求的平台、走道、沟盖板、楼梯踏步及设备操作面，常见于化工、水处理、电镀、海洋工程与电力等存在潮湿、酸碱或盐雾环境的场合。若您的工况涉及高温、强腐蚀或特殊荷载，欢迎联系我们结合具体介质、跨度与安装方式确认适配方案。
选型指导
选型时建议先明确树脂体系（如 OFR、IFR、VEFR 或酚醛型等，对应不同阻燃与耐腐蚀取向）、承载方向与支撑跨度，再确认格栅厚度、网格间距与连接方式，以匹配实际荷载与安装条件。由于不同树脂与纤维配比会影响强度、阻燃与耐蚀表现，欢迎联系我们提供工况参数，由我方协助完成选型与规格确认。关于详细规格与报价，欢迎联系我们获取。
产品优势
拉挤格栅 T-3310 以拉挤成型的“I”形、“T”形型材作为承力条，配合实心管或棒材作为连接杆，按一定装配工艺组合并保留板面间隙，因而兼具较高的纵向承载能力与轻质、耐腐蚀、易切割安装的特点。该结构利于通风、排水与透光，且不导电、无磁，适合替代部分金属格栅用于腐蚀性环境。具体性能表现依树脂与纤维配置而不同，欢迎联系我们确认适用配置。
询盘引导
如需进一步了解拉挤格栅 T-3310 的详细规格、树脂选型建议与商务条款，欢迎联系我们并提供使用环境、承载要求与尺寸需求，我们将据此给出针对性方案与报价。欢迎联系我们获取详细规格与报价。
