Pultruded Grating I-6010
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
Pultruded FRP grating is made with pultruded "I"-shaped and "T"-shaped profiles as load-bearing bars and solid tubes or rods as connecting rods, manufactured through a certain assembly process while retaining a certain panel gap.
Name | Contact Information | Type |
|---|---|---|
Resin |
25% | OFR-25,IFR-25,VEFR-25 |
Glass Fiber |
65% | E |
Filler | 8%
| ATH,PR |
Other |
2% | --- |
Code | Resin Type | Flame Retardant Performance | Recommended Applications |
|---|---|---|---|
MP-5 | Phenolic Type | Oxygen index up to approximately 80 | Low toxicity and high flame retardancy, suitable for applications with very high fire safety requirements |
VEFR-25 | Vinyl Type | Oxygen index 28 and above | Harsh corrosive environments such as acids and alkalis |
VEFR-10 | Vinyl Type | Oxygen index 35 and above | Acid and alkali environments with high flame retardant requirements |
IFR-25 | Isophthalic Type | Oxygen index 28 and above | VEFR economical type, good performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | Benzene-type (styrene class), food grade | Oxygen index 26 | Mainly used for meat products and food processing plants |
OFR-25 | Orthophthalic type | Oxygen index 28 and above | General acid and alkali environments |
OCR | Orthophthalic type | Oxygen index below 28 | OFR-25 economical type, no flame-retardant requirement |
Coarse glass fiber selection
Code | Coarse grit type | Recommended Applications |
E | E-glass (alkali-free) grit | For applications requiring high strength and high corrosion resistance |
Filler type selection
Code | Filler type | Recommended Applications |
|---|---|---|
ATH | Aluminum hydroxide | Flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | No filler, pure resin | For high corrosion resistance applications |
Sand surface
Smooth surface
Anti-slip gritted surface
Standard panel size:
1220mm, 915mm (width) 3050mm, 6100mm (length)

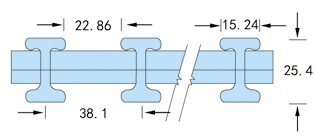

Load-bearing bar: 25mm
Open area: 60%
Approx. weight (incl. three-strand core): 12.2kg/m²
Line load (unit: mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Ultimate |
|---|---|---|---|---|---|---|---|
(mm) | 300 | 450 | 750 | 1500 | 3000 | 5950 | Load |
| 450 | 0.59 | 0.89 | 1.52 | 2.94 | 5.83 | 11 | 11067 |
| 600 | 1.41 | 2.12 | 3.52 | 5.59 | 14.2 | 27.6 | 8639 |
| 900 | 4.75 | 7.13 | 11.9 | 23.7 | --- | --- | 5750 |
| 1200 | 11.2 | 16.9 | 28.2 | --- | --- | --- | 4275 |
Uniform load (unit: mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Ultimate |
|---|---|---|---|---|---|---|---|
(mm) | 1000 | 1900 | 4000 | 7000 | 9500 | 19500 | Load |
| 450 | 1.23 | 2.36 | 4.95 | 8.67 | 11.9 | 22.2 | 48380 |
| 600 | 2.93 | 5.35 | 11.7 | --- | --- | --- | 28344 |
| 900 | 9.91 | 19.52 | --- | --- | --- | --- | 12559 |
| 1200 | 23.5 | --- | --- | --- | --- | --- | 6988 |
Features:
Flame retardant
High flame retardancy
Low smoke and low toxicity emissions
High strength-to-weight ratio
Corrosion resistant
Low maintenance
Anti-slip
Electrical and thermal non-conductivity
Easy to process
Impact resistance
UV resistance
Maintenance-free
Installation and accessories
Application scenarios
Pultruded grating I-6010 is suited to platforms, walkways, trench covers and various industrial working surfaces that require both load-bearing capacity and corrosion resistance. Its structure uses pultruded "I" profiles as load-bearing bars and solid tubes or rods as connecting rods, helping to maintain stability in damp, chemically aggressive or outdoor environments. For specific application suitability and installation methods, please contact us to confirm based on your operating conditions.
Selection guide
When selecting, first clarify the corrosive media and fire protection requirements of the service environment, then choose the resin system accordingly. For example, phenolic types are suited to applications with low toxicity, high flame retardance and stringent fire safety requirements, while vinyl ester types are suited to general corrosion-resistant conditions. Also consider the load-bearing direction of the grating, the support span and the installation fixing method. We can assist you with selection; please provide your operating parameters to receive recommendations.
Product advantages
Pultruded grating I-6010 is made from fiberglass and a resin system, formed by a profile assembly process, and combines light weight, high strength, corrosion resistance and ease of cutting and installation. The surface can be treated for slip resistance according to requirements, and the combined structure of connecting rods and load-bearing bars helps distribute loads. Compared with conventional metal grating, it offers advantages in chemical corrosion resistance and electrical insulation.
Inquiry guidance
To obtain detailed specifications, resin type options, load data and commercial terms for pultruded grating I-6010, please contact our sales team. Please provide your application environment, dimensional requirements and quantity, and we will provide a tailored solution and quotation.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
