Pultruded Grating I-4020
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC

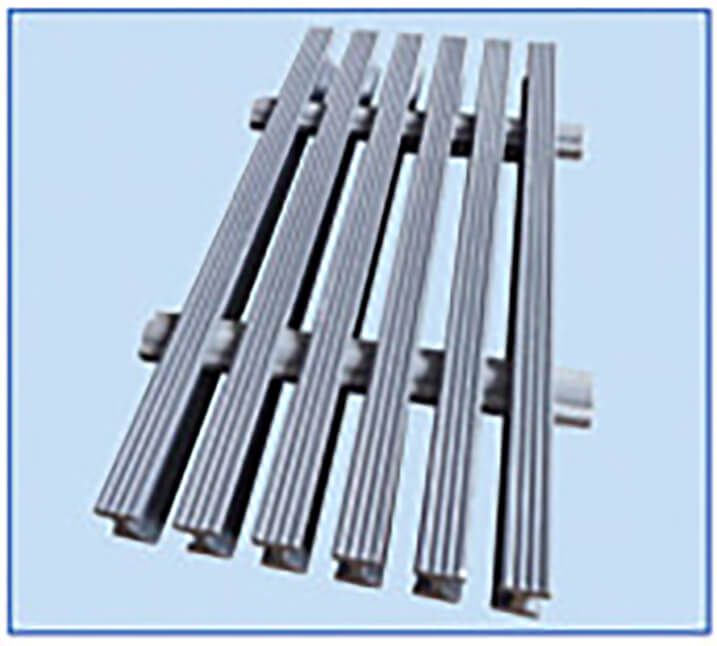

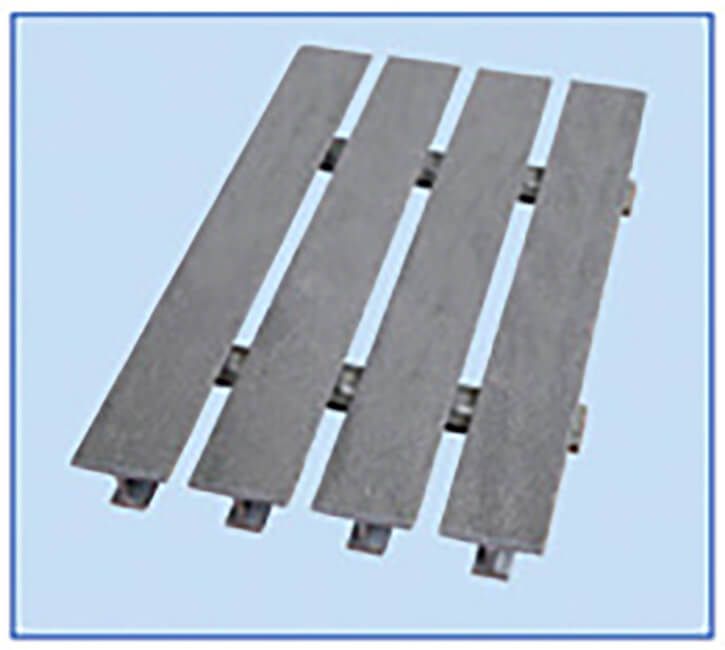

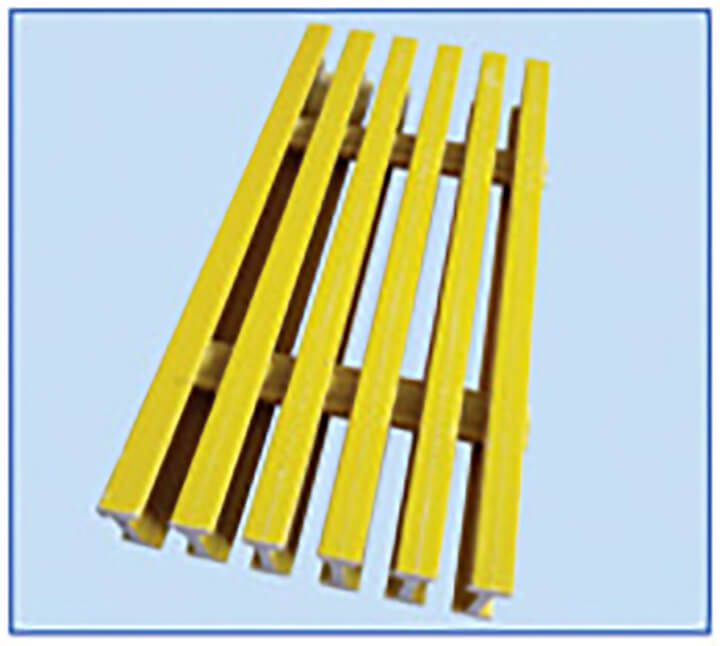

Pultruded FRP grating is made using pultruded "I"-shaped and "T"-shaped profiles as load-bearing bars and solid tubes or rods as connecting rods, assembled by a specific process into grating with gaps left between the bars on the panel surface.
Name | Contact Information | Type |
|---|---|---|
Resin | 25% | OFR-25,IFR-25,VEFR-25 |
Glass Fiber | 65% | E |
Filler | 8% | ATH,PR |
Other | 2% | --- |
Code | Resin Type | Flame Retardant Performance | Recommended Applications |
|---|---|---|---|
MP-5 | Phenolic Type | Oxygen index up to about 80 | Low toxicity and high flame retardancy, suitable for applications with high fire safety requirements |
VEFR-25 | Vinyl Type | Oxygen index 28 and above | Suitable for harsh environments with strong corrosion such as acids and alkalis |
VEFR-10 | Vinyl Type | Oxygen index 35 and above | Suitable for strong acids, strong alkalis and applications with better service conditions where high flame retardancy is required |
IFR-25 | Isophthalic Type | Oxygen index 28 and above | VEFR economical grade, good performance, resistant to medium-strength acids, alkalis and solvents |
IFGR-30 | Benzene/food grade | Oxygen index 26 | Mainly used in meat processing and food processing plants |
OFR-25 | Orthophthalic type | Oxygen index 28 and above | General acid and alkali environments |
OCR | Orthophthalic type | Oxygen index below 28 | OFR-25 economical grade, no flame-retardant requirement |
Coarse glass fiber selection
Code | Coarse sand type | Recommended Applications |
E | E-glass sand | For applications requiring high strength and high corrosion resistance |
Select filler type
Code | Filler type | Recommended Applications |
|---|---|---|
ATH | Aluminum hydroxide | Flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | No filler, pure resin | For high corrosion resistance applications |
Standard panel size:
1220mm、915mm宽 3050mm、6100mm长
Load-bearing flat bar: 50mm
Open area: 40%
Approximate weight (including three core bars): 28.5kg/m²

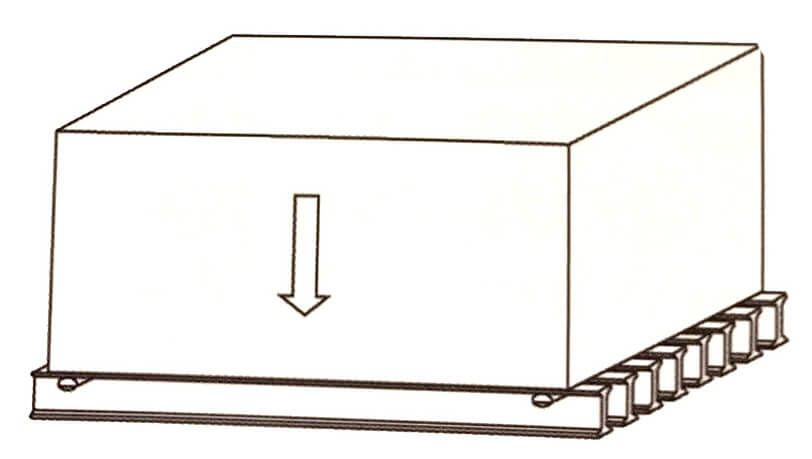

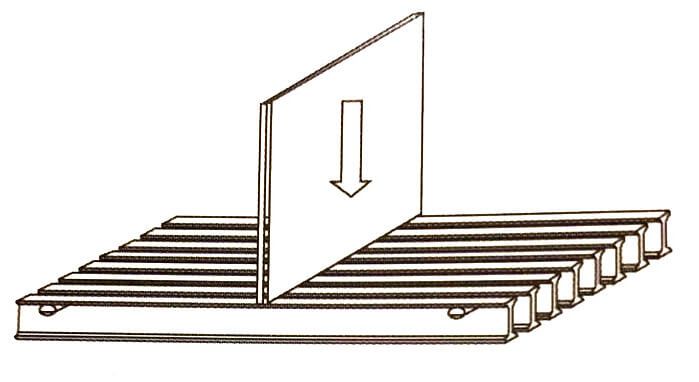

Line load (unit: mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m |
|---|---|---|---|---|---|---|---|
(mm) | 450 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| 450 | 0.09 | 0.15 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 |
| 600 | 0.21 | 0.35 | 0.47 | 0.71 | 0.94 | 1.18 | 1.42 |
| 900 | 0.72 | 1.2 | 1.65 | 2.45 | 3.22 | 4.02 | 4.83 |
| 1200 | 1.71 | 2.84 | 3.79 | 5.69 | 7.58 | 9.48 | 11.4 |
Uniform load (unit: mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² |
|---|---|---|---|---|---|---|---|
(mm) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 |
| 450 | 0.12 | 0.25 | 0.37 | 0.55 | 0.62 | 0.75 | 1.09 |
| 600 | 0.29 | 0.59 | 0.88 | 1.18 | 1.48 | 1.77 | 2.37 |
| 900 | 1.05 | 2.02 | 3.03 | 4.05 | 5.02 | 6 | 8.15 |
| 1200 | 2.37 | 4.74 | 7.11 | 9.48 | 6.86 | 8.23 | 11 |
| 1500 | 4.63 | 9.26 | 13.8 | 18.6 | 11.9 | 14.2 | --- |
Features:
Flame retardant
High fire resistance
Low smoke and low toxic gas emission
High strength-to-weight ratio
Corrosion resistant
Low maintenance cost
Anti-slip
Non-conductive and non-thermal-conductive
Easy to fabricate
Impact resistant
UV resistant
Maintenance-free

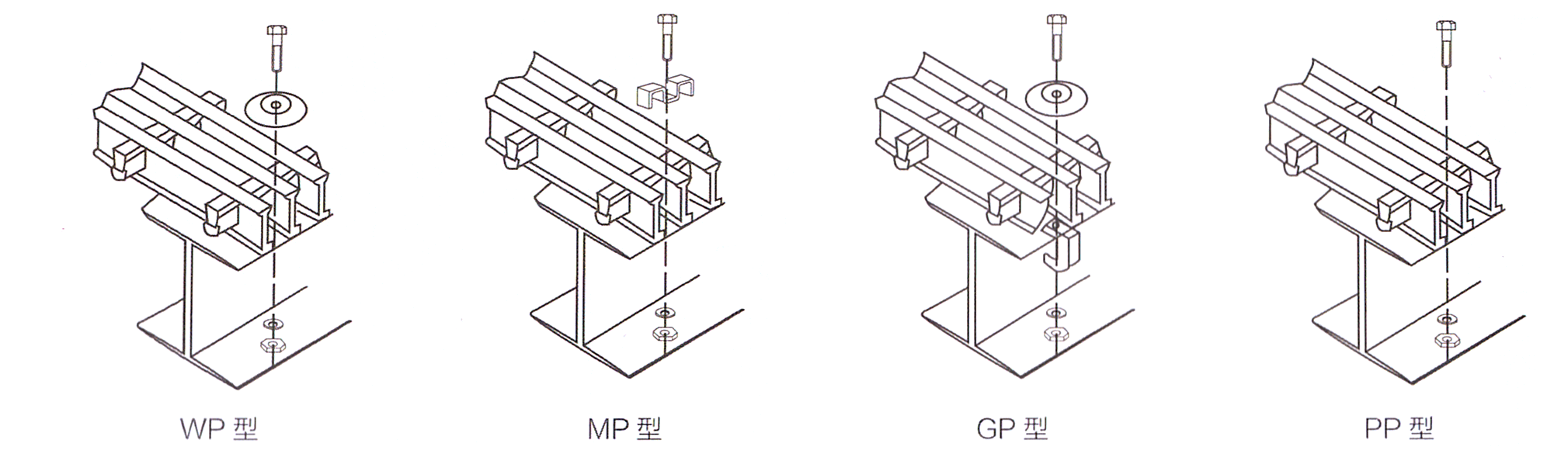

Installation and accessories
Application Scenarios
Pultruded grating I-4020 is commonly used for platforms, walkways, trench covers and various industrial operating surfaces that require both load-bearing capacity and corrosion resistance, and is particularly suitable for wet, acid/alkali or washdown environments. If your project involves special media or load conditions, contact us for detailed specifications and a quotation, and our technical team will help confirm suitability.
Selection Guide
When selecting, consider load requirements, span, the corrosion level of the service environment and fire protection requirements, and match these with differences in resin systems (such as OFR-25, IFR-25 and VEFR-25) and connection methods. Because specific parameters must be calculated per project, contact us for detailed specifications and a quotation, and we will provide targeted recommendations based on your service conditions.
Product Advantages
This product is assembled with pultruded I-profiles as load-bearing bars and solid tubes or rods as connecting rods. It combines light weight, high strength, corrosion resistance and ease of cutting and installation, with a slip-resistant surface and low maintenance cost. For more complete performance information and comparison data, contact us for detailed specifications and a quotation.
Inquiry Guide
If you are looking for a suitable grating solution for your project, tell us the service environment, dimensional requirements and load requirements so we can respond quickly. Contact us for detailed specifications and a quotation, and we will arrange a dedicated contact to follow up and provide selection support.
Service Environment
- Pultruded FRP grating with I-shaped load-bearing bars and tubular or rod-shaped connecting rods is suitable for indoor and outdoor use, and its moisture resistance, salt spray resistance and weather resistance are better than those of untreated steel.
- Its corrosion resistance makes it suitable for areas with strong chemical corrosion such as electroplating and pickling lines, wastewater treatment and pulp and paper mills, where steel grating would corrode.
- The selected resin systems (OFR, IFR, VEFR and phenolic MP-5 grade) support use in damp, wet and fire-sensitive locations; the phenolic type has low toxicity and high flame retardancy, making it suitable for fire-critical applications.
- Typical applications include walkways, platforms, stair treads and trench covers in process plants and other industrial environments; please confirm resin type and temperature range with us before specifying on site.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
