Pultruded Grating HL-4020
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC

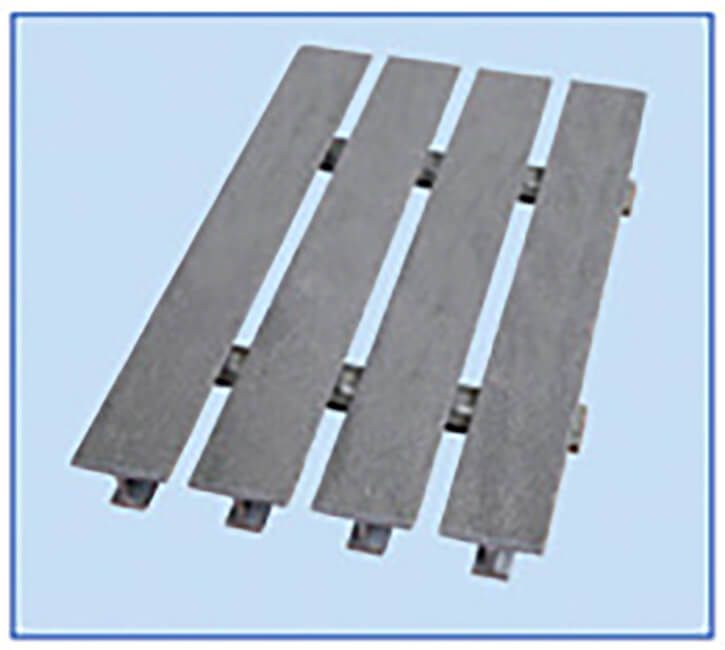

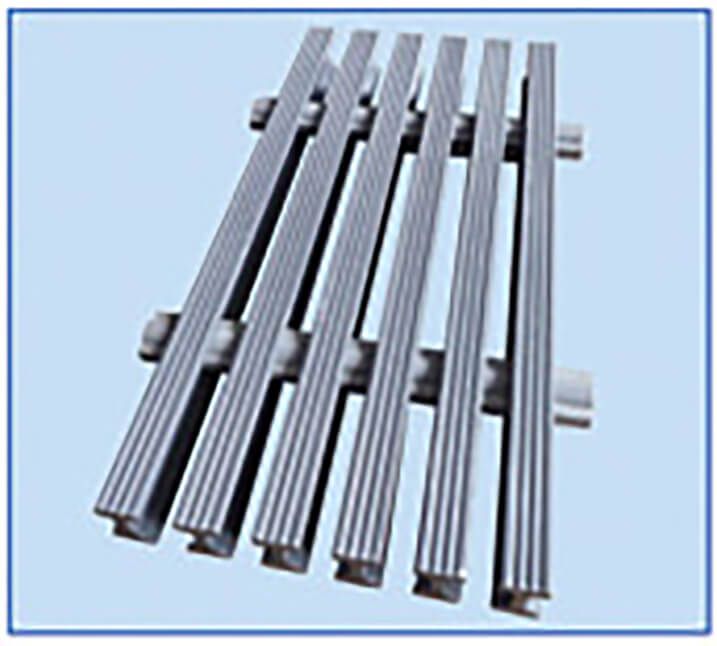

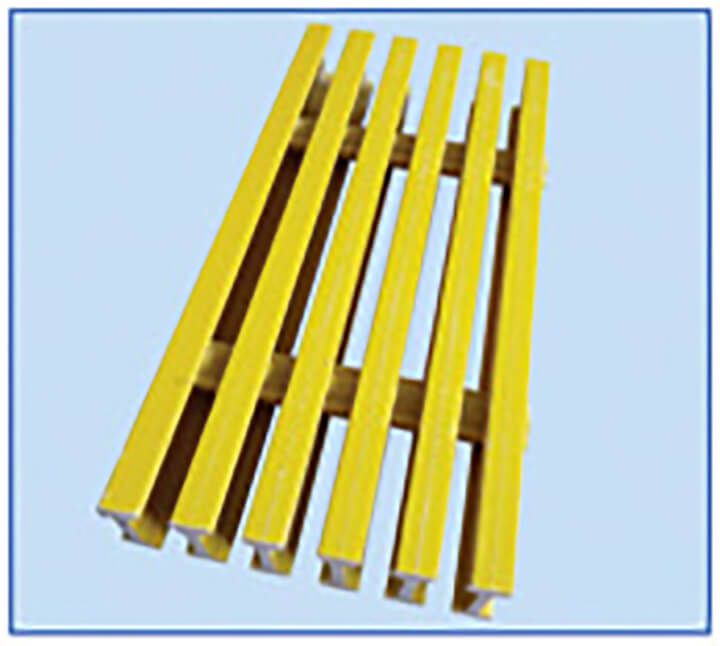

Pultruded FRP grating is made of pultruded "I"- and "T"-shaped profiles as load-bearing bars, with solid tubes or rods as connecting rods, assembled according to a certain assembly process, with gaps left in the panel surface.
Name | Contact Information | Type |
|---|---|---|
Resin | 25% | OFR-25,IFR-25,VEFR-25 |
Glass Fiber | 65% | E |
Filler | 8% | ATH,PR |
Other | 2% | --- |
Code | Resin Type | Flame Retardant Performance | Recommended Applications |
|---|---|---|---|
MP-5 | Phenolic Type | Oxygen Index up to approximately 80 | Low toxicity, high flame retardancy, suitable for applications with critical fire-safety requirements |
VEFR-25 | Vinyl Type | Oxygen Index 28 and above | Harsh environments with strong acid, alkali and other corrosive media |
VEFR-10 | Vinyl Type | Oxygen Index 35 and above | Applications requiring high flame retardancy and good acid and alkali resistance |
IFR-25 | Isophthalic Type | Oxygen Index 28 and above | VEFR type, economical, good performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | benzene type, food grade | oxygen index 26 | mainly used in meat products and food processing plants |
OFR-25 | orthophthalic type | Oxygen Index 28 and above | general acid and alkali environments |
OCR | orthophthalic type | oxygen index below 28 | OFR-25 economical type, no flame retardancy requirement |
selection of coarse glass fiber type
Code | coarse sand type | Recommended Applications |
E | E-glass sand | used in applications requiring high strength and high corrosion resistance |
selected filler type
Code | filler type | Recommended Applications |
|---|---|---|
ATH | aluminum hydroxide | flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | no filler, pure resin | used for high corrosion resistance applications |
Standard panel size:
1220mm, 915mm - width; 3050mm, 6100mm - length
Load-bearing flat bar: 50mm
Open area: 40%
Approximate weight (including three cross bars): 70.37kg/m²

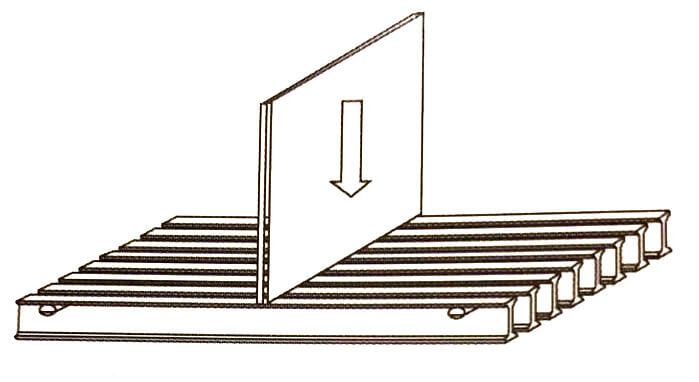

Line load (unit: mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m |
|---|---|---|---|---|---|---|---|---|---|
(mm) | 150 | 300 | 450 | 750 | 1500 | 3000 | 4500 | 6000 | 7500 |
| 600 | 0.03 | 0.07 | 0.09 | 0.15 | 0.31 | 0.6 | 0.9 | 1.19 | 1.5 |
| 750 | 0.05 | 0.1 | 0.17 | 0.27 | 0.54 | 1.09 | 1.63 | 2.2 | 2.74 |
| 900 | 0.09 | 0.19 | 0.27 | 0.46 | 0.92 | 1.84 | 2.74 | 3.66 | 4.58 |
| 1200 | 0.22 | 0.43 | 0.77 | 1.07 | 2.14 | 4.29 | 6.43 | 8.58 | 10.7 |

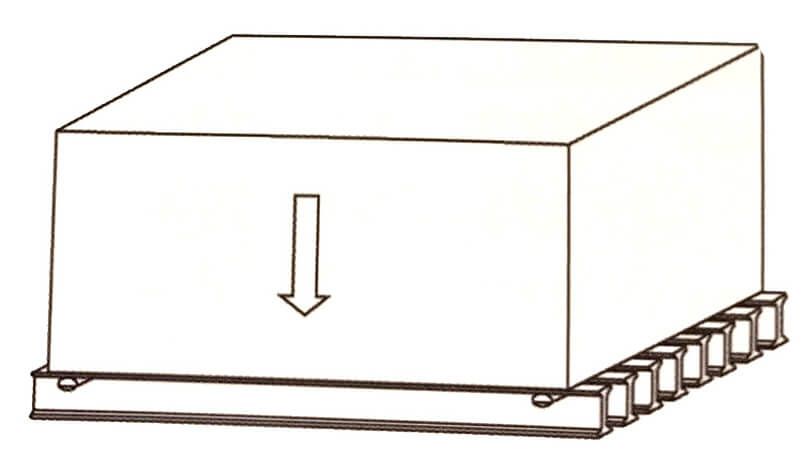

Uniformly distributed load (unit: mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² |
|---|---|---|---|---|---|---|---|---|---|
(mm) | 450 | 950 | 1450 | 2450 | 4850 | 9800 | 14500 | 19500 | 24400 |
| 600 | 0.03 | 0.07 | 0.12 | 0.19 | 0.37 | 0.75 | 1.12 | 1.5 | 1.85 |
| 750 | 0.09 | 0.17 | 0.26 | 0.43 | 0.85 | 1.7 | 2.57 | 3.42 | 4.27 |
| 900 | 0.17 | 0.34 | 0.51 | 0.85 | 1.72 | 3.44 | 5.14 | 6.86 | 8.58 |
| 1200 | 0.54 | 1.07 | 1.62 | 2.69 | 5.36 | 10.7 | --- | --- | --- |
Features:
Flame retardant
High fire resistance
Low smoke and low toxic gas emission
High specific strength
Corrosion resistant
Low maintenance
Anti-slip
Electrically and thermally non-conductive
Easy to process
Impact resistant
UV resistant
Maintenance-free

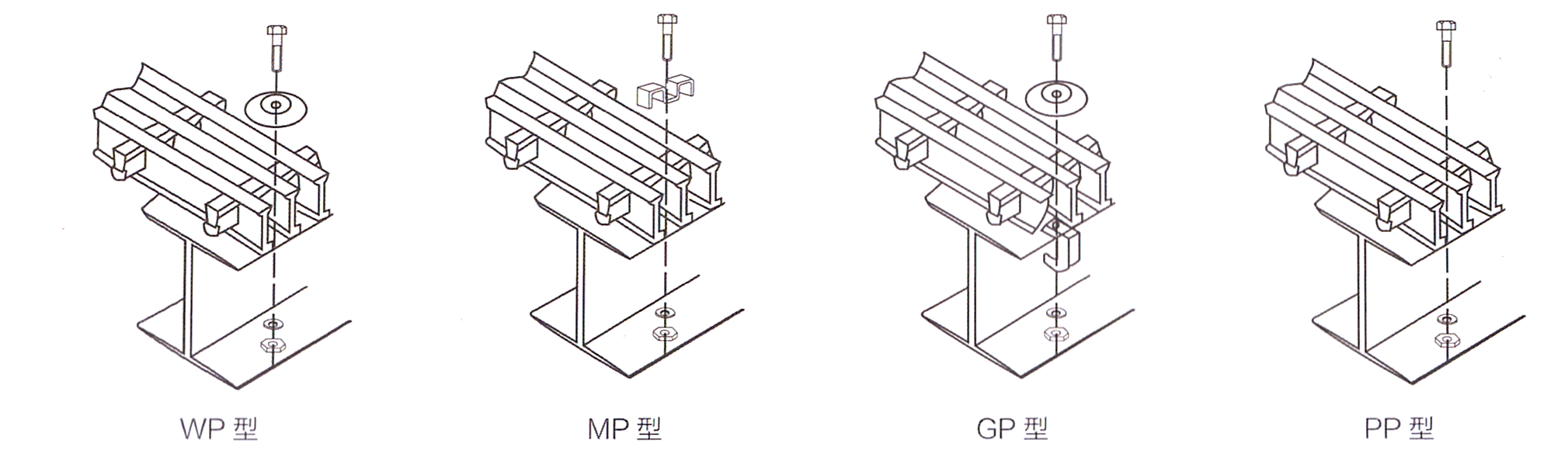

Installation and accessories
Application Scenarios
Pultruded Grating HL-4020 uses pultruded profiles as bearing bars and solid tubes or rods as connecting rods. It is suitable for platforms, walkways, trench covers and various industrial operating surfaces that require both load-bearing capacity and corrosion resistance. In working conditions involving acid and alkali media, moisture or frequent washing, FRP material is more conducive to long-term use than metal. For specific application suitability, please contact us to confirm based on your working conditions.
Selection Guide
When selecting, it is necessary to take into account the resin type, grating thickness, bearing bar spacing and the corrosion level of the service environment; different resins place different emphasis on flame retardancy and corrosion resistance. Please provide the service environment, load requirements and installation method, and we can assist in recommending a suitable specification combination. For detailed specifications and quotations, please contact us.
Product Advantages
Pultruded grating uses pultruded profiles as the load-bearing structure, featuring high longitudinal strength and stiffness, while also offering the characteristics common to FRP such as light weight, corrosion resistance and ease of cutting and installation. The surface can be treated for slip resistance, making it suitable for use in wet or oily environments. For specific performance parameters, please contact us.
Inquiry Guide
If you need to know the detailed specifications, resin options, colors and commercial terms of pultruded grating HL-4020, please contact us. Please provide information such as the service environment, size requirements and quantity, and we will reply as soon as possible and provide the corresponding solution and quotation.
Service Environment
- This pultruded FRP grating is composed of pultruded "I"-shaped and "T"-shaped bearing bars and solid tube or rod-shaped connecting rods. This structure enables it to be used as walkways, platforms and stair tread surfacing in damp industrial plants requiring frequent washing.
- Because the bearing bars are made of pultruded FRP rather than steel, the grating is suitable for indoor and outdoor installation where the surrounding media are corrosive or chemically aggressive, including areas exposed to acids, alkalis and salt-containing air.
- With the choice of phenolic, vinyl ester resin and other flame-retardant resin systems, the grating can be used in environments where fire safety and low toxicity are valued and corrosion resistance is also required.
- For projects with specific temperature, humidity or chemical exposure conditions, please contact Nantong Greenlogy Electronic Technology Co., Ltd. (Greenlogy TEC) and provide the service environment so that the resin system and grating configuration can be checked accordingly.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
