FRP Molded Grating 38*38H13
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC

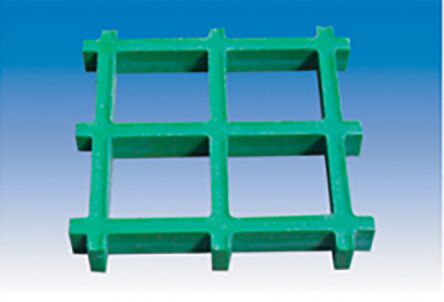

FRP molded grating is a panel with a certain open area, made with unsaturated polyester resin (including isophthalic, orthophthalic, phenolic and bisphenol types) as the framework and produced in custom molds.
Name | Content | Type |
|---|---|---|
Resin | 35% | OFR-25,IFR-25,VEFR-25 |
Glass fiber | 33% | E |
Filler | 31% | ATH,PR |
Others | 1% | --- |
Raw material introduction
Code | Resin type | Flame retardant performance |
Recommended applications |
|---|---|---|---|
MP-5 | Phenolic type | Oxygen index up to about 80 | Low toxicity and high flame retardancy, for applications with very high fire safety requirements |
VEFR-25 | Vinyl ester type | Oxygen index 28 and above | Harsh corrosive environments such as acids and alkalis |
VEFR-10 | Vinyl ester type | Oxygen index above 35 | Strong acids and strong alkalis with high flame retardant requirements and applications requiring good performance |
IFR-25 | Isophthalic type | Oxygen index 28 and above | VEFR economical type, good performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | Benzene-type, food grade | Oxygen index 26 | Mainly used in meat processing and food processing plants |
OFR-25 | Orthophthalic type | Oxygen index 28 and above | General acid and alkali environments |
OCR | Orthophthalic type | Oxygen index below 28 | OFR-25 economical type, no flame retardancy requirement |
Coarse glass fiber selection
Code | Coarse grit type | Recommended applications |
E | E-glass grit | For applications requiring high strength and high corrosion resistance |
Filler type selection
Code | Filler type | Recommended applications |
|---|---|---|
ATH | Aluminum hydroxide | Flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | No filler, pure resin | For high corrosion resistance applications |

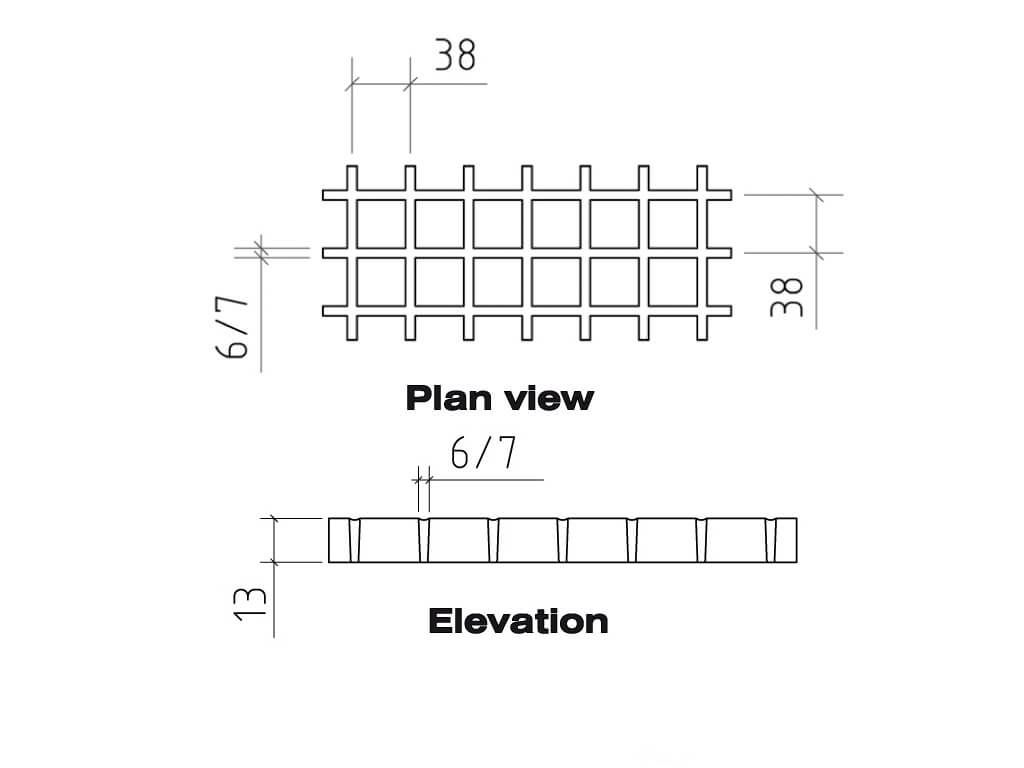

38*38*30(mm)
Available panel sizes:
1220*4000,1220*3660,1220*2440,
915*3050 Bidirectional load bearing.
Load-bearing flat bar thickness (top/bottom): 6.0/5.0
Load-bearing flat bar center distance: 38
Open area: 78%
Approximate weight: 6.00 kgs/m²
Linear load (unit: mm)
Span (mm) | Load, unit kN/m width (concentrated) |
Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
|---|---|---|---|
| 400 | 24 | 19 | 7.14 |
| 600 | 6.8 | 13 | 8.55 |
| 800 | 15.4 | 10 | 9.02 |
Uniform load (unit: mm)
Span (mm) |
Load, unit kN/m² (uniform) |
Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
|---|---|---|---|
| 400 | 0.6 | 100 | 7.14 |
| 600 | 2.6 | 45 | 8.55 |
| 800 | 7.7 | 26 | 9.02 |
Features:
Corrosion resistant
Slip resistant
Superior ergonomic design
Low installation cost
Flame retardant
Lightweight with high bidirectional strength; cutting makes piping easier to install.
Uniform color inside and out; colors can be selected freely.
Delivers good social and economic benefits.
Designable, flexible and diverse in size, and dimensionally stable
Widely used in:

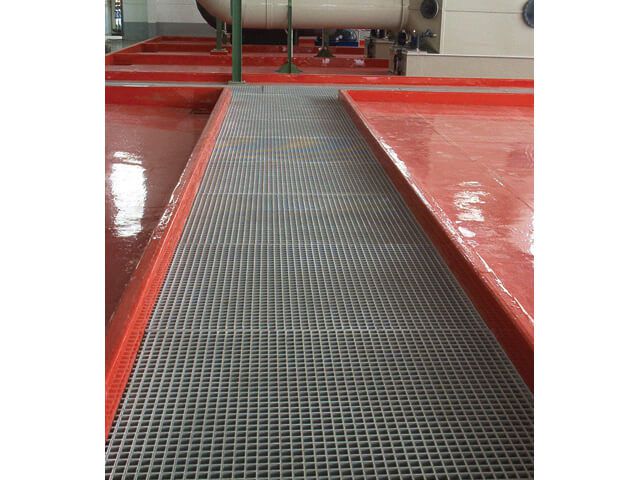

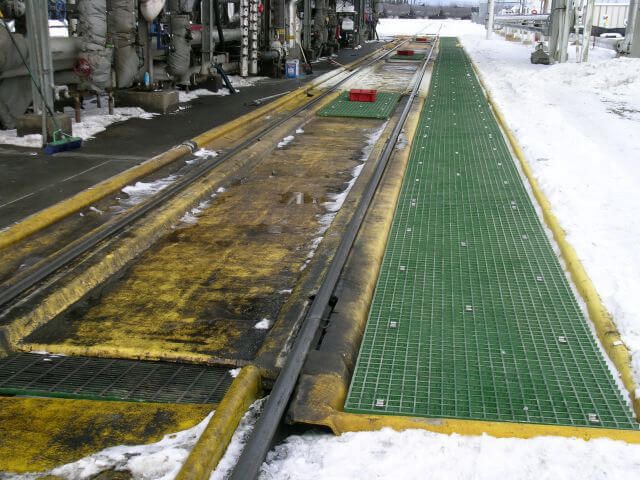

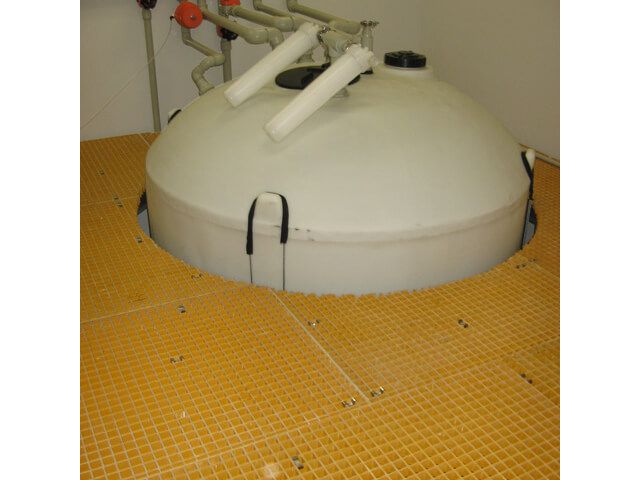

Greenlogy TEC FRP grating is widely used for platform (industrial) flooring, stairways, walkways and platforms. Using FRP grating offers many advantages: good weather resistance, low maintenance cost, long service life and good anti-slip performance. In addition, FRP grating is simple, fast and flexible to process and assemble.
Application scenarios
FRP molded grating 38*38H13 uses a 38 mm × 38 mm mesh with a 13 mm thick structure, suitable for platform walkways, trench covers, stair treads and various industrial and civil applications requiring anti-slip, corrosion resistance and water permeability. For specific solutions under different media and load environments, please contact us to evaluate against your operating conditions.
Selection guide
Selection should comprehensively consider resin type (such as orthophthalic, isophthalic, vinyl ester, phenolic, etc.), load requirements, corrosive media and installation method. The 38*38H13 specification has defined mesh size and thickness, making it easy to fit with other structural components. To determine the most suitable resin system and panel type, please contact us for detailed specifications and selection advice.
Product advantages
Molded grating uses unsaturated polyester resin as the matrix and glass fiber as reinforcement, molded in a single operation. It features light weight, high strength, corrosion resistance, anti-slip performance and easy cutting and installation; the 38*38H13 mesh and thickness combination balances water permeability and load performance. Specific performance advantages can be further explained based on your operating environment; please contact us to discuss.
Inquiry guide
To learn about the detailed specifications, resin options, colors, packaging and delivery methods of FRP molded grating 38*38H13, please contact us for detailed specifications and a quotation. We will provide a targeted solution based on your project requirements.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
