玻璃钢模塑格栅38*152H38楼梯踏板
Please feel freely to contact with us for new price .
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

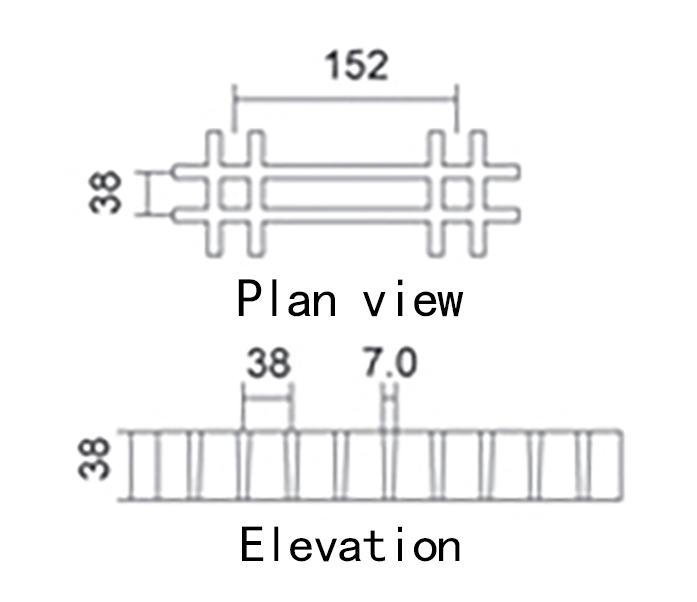

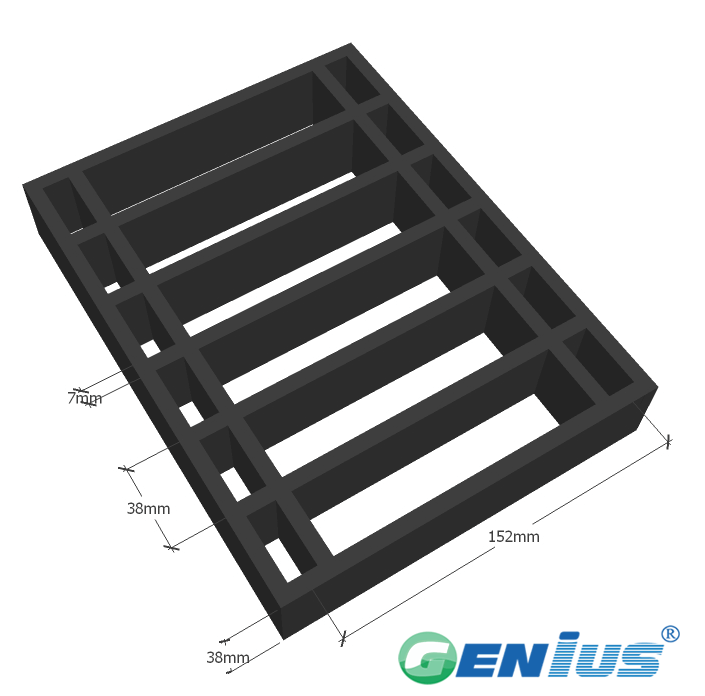

38*152*38(mm)
Panel size available:
580*3660,610*3660 Bidirectional force
Bearing bar thickness (Top/Bottom)：7.0/5.0
Bearing bar center：38
Open Aera：65%
Approx Weight：17kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
本产品适用于楼梯踏步、平台、走道等需要防滑、耐腐蚀和承重的场合，常见于化工、电力、水处理、海洋工程等行业。玻璃钢模塑格栅的轻质高强特性使其也适合对重量敏感或需频繁拆卸的作业环境。
选型指导
选型时需考虑承载要求、使用环境的腐蚀性、防滑需求及安装方式等因素。不同树脂类型在耐腐蚀和阻燃性能上各有侧重，可根据具体工况选择。欢迎联系我们获取详细规格与选型建议。
产品优势
玻璃钢模塑格栅具有重量轻、强度高、耐腐蚀、防滑、绝缘及免维护等优点，其表面凹槽设计能有效防滑，且可定制颜色以匹配现场环境。与传统金属格栅相比，在腐蚀性环境中使用寿命更长，综合成本更低。
询盘引导
如需了解更多产品信息、获取样品或定制方案，欢迎联系我们，我们将根据您的需求提供详细规格与报价。
