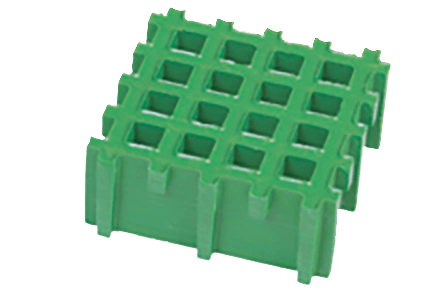

玻璃钢模塑格栅20*20H40
Please feel freely to contact with us for new price .
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type |
Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

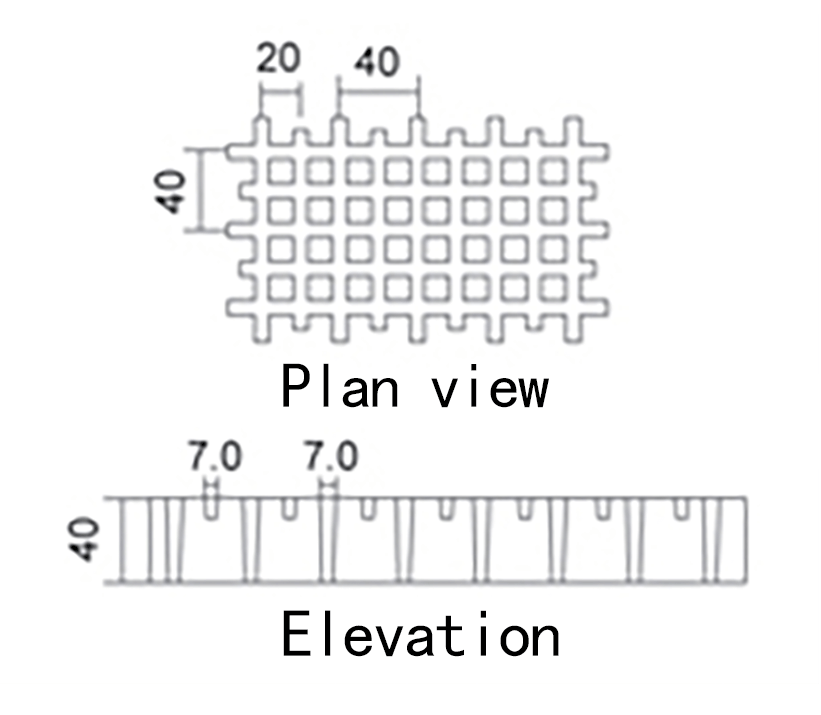

20*20*40(mm)
Panel size available:
1007*4047,1007*3007 Bidirectional force.
Bearing bar thickness (Top/Bottom)：7.0/5.0
Bearing bar center：20
Open Aera：42%
Approx Weight：23.7kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅20*20H40适用于对防滑、耐腐蚀和承载有要求的平台、走道、沟盖板及各类操作面，常见于化工、水处理、电力和海洋工程等环境。其网格开孔结构利于排水、透气和透光，也便于现场切割安装。具体场景的适配性欢迎联系我们沟通确认。
选型指导
选型时建议先明确使用环境的腐蚀介质、承载需求和安装方式，再据此确认格栅的网格尺寸、厚度与树脂体系。本页所列树脂类型在阻燃与耐蚀表现上各有侧重，可结合实际工况选择。欢迎联系我们获取详细规格与选型建议。
产品优势
模塑成型使格栅整体性好、纤维与树脂分布均匀，具备轻质高强、耐腐蚀和防滑等特点，且维护成本较低。表面可做防滑处理，长期使用不易锈蚀。具体性能指标欢迎联系我们索取资料。
询盘引导
如需了解玻璃钢模塑格栅20*20H40的详细规格、树脂选项及商务条款，欢迎联系我们获取详细规格与报价。请告知使用环境与需求数量，我们将为您提供针对性的方案与样品支持。
