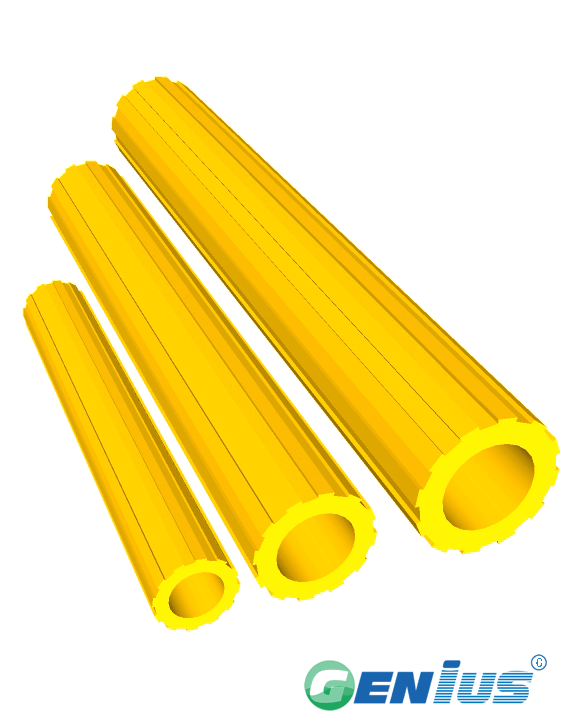

Structural Profiles - Plum Tube (Orthophthalic)
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
FRP pultruded profiles are a new type of composite material made with glass fiber reinforcement as the base material, resin as the adhesive, and glass fiber cloth as the covering reinforcement layer; after full impregnation, they are heated, formed and cured in a metal mold and then pulled and drawn by a pulling machine. With good physical properties, they are widely used in high-strength and long-span applications.
Type | Size (mm) | Weight (kg/m) | Size (in) | Weight (lbs/in) |
|---|---|---|---|---|
Quatrefoil Tube | D1*D2*T | D1*D2*T | ||
CT32A | 19*32*6.4 | 1.11 |
3/4" x 5/4" x 1/4" | 2.45 |
CT34A | 19*34*7.5 | 1.3 | 3/4" x 5/4" x 5/16" | 2.87 |
CT32B | 25*32*3.5 | 0.66 | 1" x 5/4" x 1/8" | 1.46 |
CT42 | 29*42*6.4 | 1.35 | 9/8" x 13/8" x 1/4" | 2.98 |
CT45A | 28*45*8.5 | 1.86 | 9/8" x 7/4" x 5/16" | 4.1 |
CT45B | 32*45*6.4 | 1.1 | 5/4" x 7/4" x 1/4" | 2.43 |
CT51 | 51*36*7 | 1.75 | 2" x 3/2" x 1/4" | 3.86 |
CT90B | 71*90*9.5 | 5.7 | 11/4" x 7/2" x 3/8" | 12.6 |
Market
Construction
Bridges and highways
Chemical
Food and beverage
Manufacturing
Metals and mining
Microelectronics
Oil and gas
Pharmaceutical
Power
Pulp and paper
Recreation
Telecommunications
Transportation
Water and wastewater treatment
Features:
Corrosion resistance
Low maintenance
Flame retardant
Low installation cost
Resistant to heavy metal corrosion
Long service life
Non-conductive, non-thermal-conductive
High strength-to-weight ratio
Raw material introduction—resin types
Code | Resin type | Flame retardancy | Recommended applications |
|---|---|---|---|
VEFR-25 | Vinyl ester type | Oxygen index 28 and above | Harsh corrosive environments such as acids, alkalis and others |
IFR-25 | Isophthalic type | Oxygen index 28 and above | VEFR type: economical, good performance, resistant to moderate acids, alkalis and solvents |
OFR-25 | Orthophthalic type | Oxygen index 28 and above | General acid and alkali environments |
Application:
Greenlogy TEC pultruded fiberglass structural profiles are widely used in various applications, combining corrosion resistance, high strength, dimensional stability and light weight, with thermal insulation and electrical insulation properties. Durable Greenlogy TEC profiles provide years of low-maintenance service where steel, aluminum or wood components have traditionally been used. Today, these profiles are often used in highly corrosive applications that previously required stainless steel and other costly components.
Greenlogy TEC profiles
Mechanical properties | ASTM | Unit | Value | Unit | Value |
|---|---|---|---|---|---|
Tensile stress, LW | D-638 | psi | 30000 | kgf/m² | 21092086 |
Tensile stress, CW | D-638 | psi | 7000 | kgf/m² | 4921487 |
Tensile modulus, LW | D-638 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Tensile modulus, CW | D-638 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Compressive stress, LW | D-695 | psi | 30000 | kgf/m² | 21092086 |
Compressive stress, CW | D-695 | psi | 15000 | kgf/m² | 10546043 |
Compressive modulus, LW | D-695 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Compressive modulus, CW | D-695 | 10^6psi | 1 | 10^6kgf/m² | 703 |
Flexural stress, LW | D-790 | psi | 30000 | kgf/m² | 21092086 |
Flexural stress, CW | D-790 | psi | 10000 | kgf/m² | 7030695 |
Flexural modulus, LW | D-790 | 10^6psi | 1.8 | 10^6kgf/m² | 1266 |
Flexural modulus, CW | D-790 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Modulus of elasticity | Full section | 10^6psi | 2.8 | 10^6kgf/m² | 1969 |
Shear modulus | --- | 10^6psi | 0.45 | 10^6kgf/m² | 316 |
Short-beam shear | D-2344 | psi | 4500 | kgf/m² | 3163813 |
Punch shear | D-732 | psi | 10000 | kgf/m² | 7030695 |
Notched Izod impact strength, LW | D-256 | ft.-lbs./in. | 25 | kg/m | 3.46 |
Notched Izod impact strength, CW | D-256 | ft.-lbs./in. | 4 | kg/m | 0.55 |
Excluding round rods and square rods
Physical properties | ASTM | Unit | Value |
|---|---|---|---|
Barcol hardness | D-495 | --- | 45 |
24-hour water absorption | D-570 | %max | 0.45 |
Density | D-792 | lbs./in.³ | 0.062-0.07 |
Coefficient of thermal expansion, LW | D-696 | 10^-6in./in./℃ | 8 |
Flame retardancy | ASTM | Unit | Value |
|---|---|---|---|
Tunnel test* | E-84 | Flame spread | Max 25 |
Ignitability* | D-635 | --- | Non-combustible |
Electrical properties | ASTM | Unit | Value |
|---|---|---|---|
Arc resistance, LW | D-495 | 秒（s） | 120 |
Dielectric strength, LW | D-149 | kv./in. | 35 |
Dielectric strength, PF | D-149 | Volts/mil | 200 |
Dielectric constant, PF | D-150 | @60hz | 5 |
LW=lengthwise, CW=crosswise, PF=perpendicular to laminate surface
*Applies to ISOFR and VEFR only
Applications
The quincunx tube structural profile combines strength and corrosion resistance, making it suitable for load-bearing supports and walkway frameworks in chemical plant platforms, wastewater treatment, power facilities, and marine engineering, with stable performance in humid, acidic/alkaline, or salt spray environments. For specific application recommendations, contact us for technical selection assistance.
Selection Guide
When selecting, consider load type, span, support spacing and environmental corrosion level, and confirm whether the cross-sectional dimensions (D1*D2*T) and wall thickness match the installation requirements; weight parameters can also be referenced to estimate structural load. If you have questions about dimensions or mechanical properties, please contact us for detailed specification sheets and selection advice.
Product Advantages
This quatrefoil tube is pultruded from glass fiber reinforced resin, offering advantages such as light weight and high strength, corrosion resistance, insulation and non-magnetic properties, and maintenance-free operation; it is also easy to install and can effectively reduce long-term use costs. To learn more about technical features, please contact us to request samples and documentation.
Inquiry Guidance
For detailed specifications, bulk pricing, delivery lead times or customization requirements, please contact us; we will provide professional advice and a quotation based on your application scenario.
Operating Environment
- Orthophthalic resin profiles (orthophthalic resin) are glass fiber reinforced plastic structural profiles pultruded by bonding glass fiber reinforcement with orthophthalic resin, and are therefore suitable for general indoor and outdoor structural frameworks where moisture and weathering are present.
- Because the orthophthalic resin matrix and glass fiber reinforcement can resist corrosion from a variety of common industrial media, these profiles are typically used in chemical plants, water treatment areas and other installations with damp or mildly corrosive conditions.
- They are commonly selected for outdoor walkways, platforms and support frames exposed to rain, moisture and temperature fluctuations, where corrosion-resistant, non-conductive structural components are preferred over steel.
- Typical operating conditions are conventional industrial environments; for temperature, load or chemical resistance limits in specific installations, please contact us for the full parameter table.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
