拉挤格栅 T-2510
欢迎询价。
Genius FRP

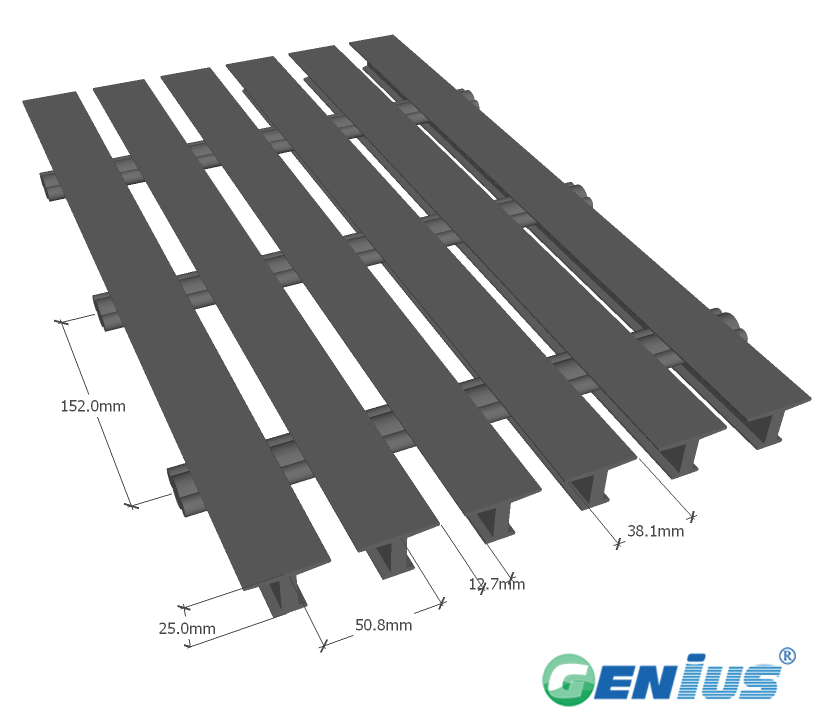

Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length

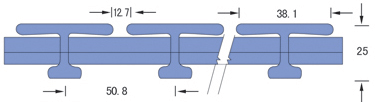

Bearing Bar: 25mm
Open Area: 25%
Approx Weight (With three-core shoots): 13.6kg/m²
Liner load（units:mm）
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
(mm) | 150 | 300 | 450 | 750 | 1500 | 3000 | Load |
| 450 | 0.25 | 0.51 | 0.76 | 1.27 | 2.79 | 5.59 | 4619 |
| 600 | 0.51 | 1.02 | 1.78 | 2.79 | 5.59 | 11.4 | 3472 |
| 900 | 1.78 | 3.56 | 5.59 | 9.14 | --- | --- | 2310 |
| 1200 | 2.03 | 4.32 | 8.38 | 12.7 | --- | --- | 1728 |
Uniform load（units：mm）
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
(mm) | 450 | 950 | 1450 | 2400 | 4850 | 9500 | Load |
| 450 | 0.25 | 0.51 | 0.76 | 1.27 | 2.54 | 5.08 | 10638 |
| 600 | 0.76 | 1.52 | 2.03 | 3.56 | 7.11 | --- | 8003 |
| 900 | 3.56 | 6.86 | 10.4 | --- | --- | --- | 5075 |
| 1200 | 10.7 | --- | --- | --- | --- | --- | 2830 |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories
应用场景
拉挤格栅 T-2510 常用于对承载与耐腐蚀同时有要求的平台、走道、地沟盖板及设备操作面等场合，尤其适合潮湿、酸碱或需减轻自重的工业环境。具体工况的适配性建议结合荷载、跨距与介质条件与我们沟通确认。
选型指导
选型时需重点考虑承载方向、支撑跨距、使用环境与阻燃要求，并根据树脂体系（如邻苯、间苯、乙烯基或酚醛型）选择对应耐蚀与防火等级。欢迎联系我们提供工况参数，由技术人员协助完成规格匹配与选型建议。
产品优势
以拉挤“I”“T”型材作承力条、实心管或棒作连接杆组装而成，具有轻质高强、耐腐蚀、易切割安装及维护成本低等特点，且表面可做防滑处理。相比传统金属格栅，其在腐蚀性环境中使用寿命更长，且不导电、无磁性。
询盘引导
如需获取 T-2510 的详细规格、树脂体系选项、承载数据及报价，欢迎联系我们，我们将根据您的项目需求提供针对性方案与商业条款。
