拉挤格栅 T-1215
欢迎询价。
Genius FRP

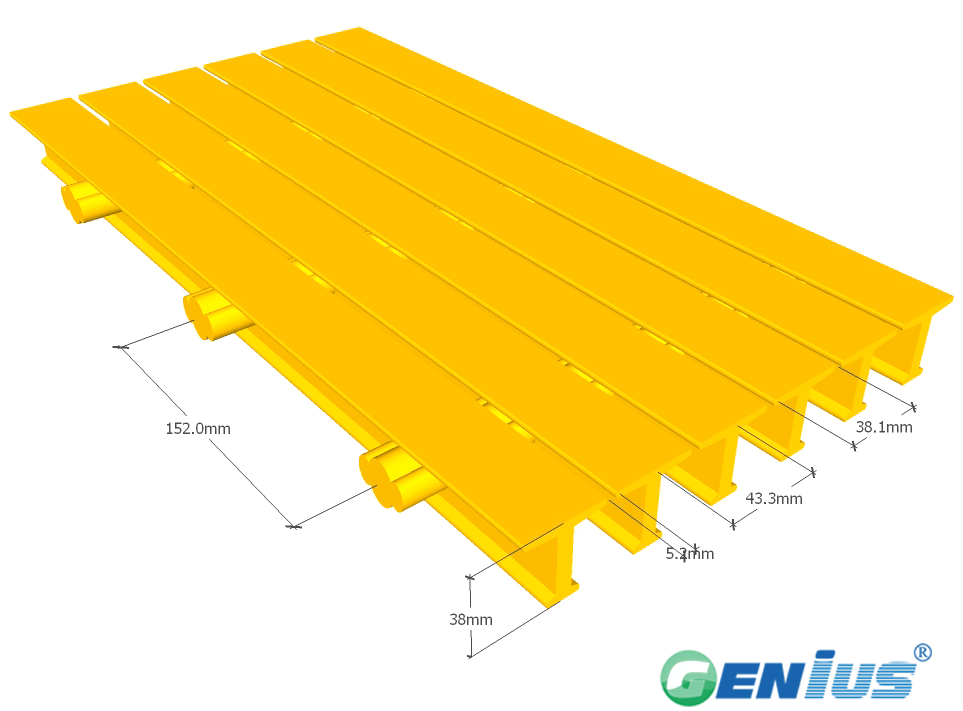

Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length
Bearing Bar: 38mm
Open Area: 12%
Approx Weight (With three-core shoots): 19.6kg/m²
Liner load（units:mm）
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
(mm) | 150 | 300 | 450 | 750 | 1500 | 3000 | Load |
| 450 | <0.25 | 0.25 | 0.25 | 0.51 | 1.02 | 1.78 | 8791 |
| 600 | <0.25 | 0.25 | 0.51 | 0.76 | 1.78 | 3.56 | 7033 |
| 900 | 0.51 | 1.02 | 1.52 | 2.79 | 5.33 | 10.7 | 4679 |
| 1200 | 1.27 | 2.54 | 3.56 | 6.1 | 12.2 | --- | 3516 |
Uniform load（units：mm）
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
(mm) | 450 | 950 | 1450 | 2400 | 4850 | 9500 | Load |
| 450 | <0.25 | 0.25 | 0.25 | 0.51 | 1.02 | 1.78 | 19227 |
| 600 | 0.25 | 0.51 | 0.76 | 1.02 | 2.29 | 4.32 | 14396 |
| 900 | 1.02 | 2.03 | 3.05 | 5.08 | 10.2 | --- | 9614 |
| 1200 | 3.05 | 6.1 | 9.14 | --- | --- | --- | 5758 |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories
应用场景
拉挤格栅 T-1215 以拉挤 I 型、T 型型材作承重条，实心管或棒材作连接杆，适用于对承载与耐腐蚀同时有要求的平台、走道、沟盖及楼梯踏步等场合。在化工、水处理、电镀、海洋工程等潮湿或腐蚀性环境中，可作为传统金属格栅的替代方案。具体工况下的适用性，欢迎联系我们结合您的使用环境进行确认。
选型指导
选型时可从树脂体系、承载方向、跨距与安装方式几个方面考虑：树脂类型需匹配环境的腐蚀性与阻燃要求，承重条的规格与间距决定承载能力，连接杆形式影响整体刚度。不同树脂与纤维配比对应不同的耐腐蚀和阻燃表现，建议提供使用介质、温度范围与荷载条件，由我们协助推荐合适配置。
产品优势
拉挤工艺使纤维沿受力方向连续排列，制品在承载方向上具有较高的强度与刚度，同时具备 FRP 材料轻质、耐腐蚀、免维护的共同特点。格栅表面可做成防滑形式，安装时便于切割和现场调整，长期使用不易锈蚀。与模塑格栅相比，拉挤格栅更适合对承载和跨度有要求的场合。
询盘引导
如需了解拉挤格栅 T-1215 的详细规格、树脂选项及供货信息，欢迎联系我们获取详细规格与报价。请提供使用环境、承载要求、尺寸及数量等信息，我们将据此给出针对性建议与商务条款。
