玻璃钢模塑格栅 38*38H13
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Introduction of raw materials
Code | Resin type | Flame retardant property |
Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

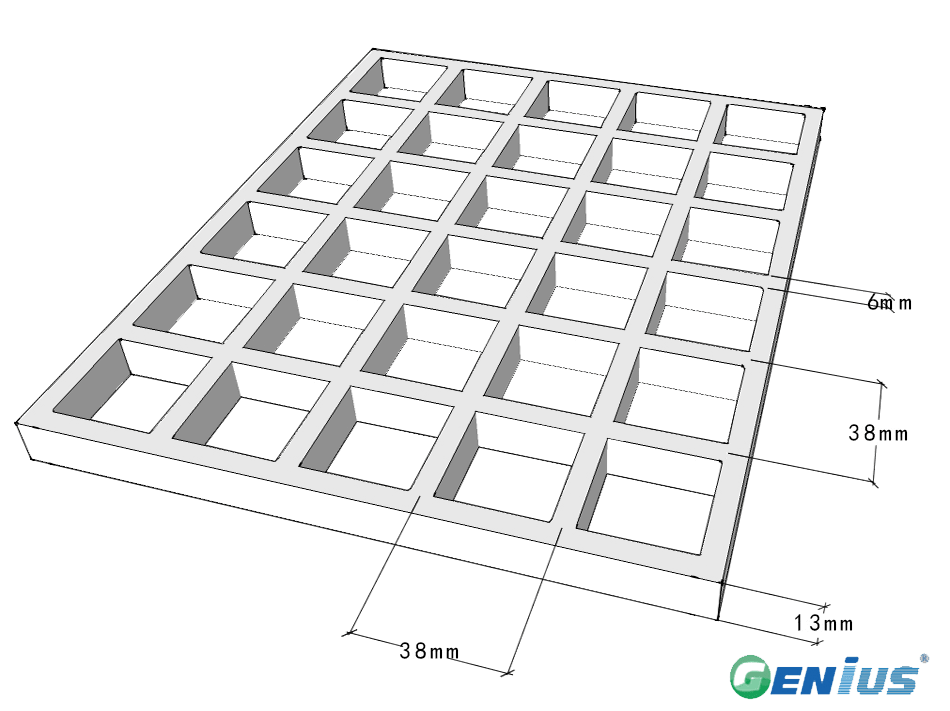

38*38*30(mm)
Panel size available:
1220*4000,1220*3660,1220*2440,
915*3050 Bidirectional force.
Bearing bar thickness (Top/Bottom)：6.0/5.0
Bearing bar center：38
Open Aera：78%
Approx Weight：6.00kgs/m²
Liner load（units:mm）
Span in (mm) | Load in kn/m of widht (concentrated) |
Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
| 400 | 24 | 19 | 7.14 |
| 600 | 6.8 | 13 | 8.55 |
| 800 | 15.4 | 10 | 9.02 |
Uniform load（units：mm）
Span in (mm) |
Load in kn/sqm (uniformed) |
Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
| 400 | 0.6 | 100 | 7.14 |
| 600 | 2.6 | 45 | 8.55 |
| 800 | 7.7 | 26 | 9.02 |
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅38*38H13采用38mm×38mm网格与13mm厚度结构，适用于平台走道、地沟盖板、楼梯踏步及各类需要防滑、耐腐蚀与透水的工业与民用场合。不同介质与载荷环境下的具体适配方案，欢迎联系我们结合工况进行评估。
选型指导
选型时需综合考虑树脂类型（如邻苯型、间苯型、乙烯基酯型、酚醛型等）、承载需求、腐蚀介质及安装方式，38*38H13规格对应网格尺寸与厚度已明确，便于与其他结构件配合。如需确定最适合的树脂体系与板型，欢迎联系我们获取详细规格与选型建议。
产品优势
模塑格栅以不饱和聚酯树脂为基体、玻璃纤维为增强材料，经模具一次成型，具有轻质高强、耐腐蚀、防滑及便于切割安装的特点，38*38H13的网格与厚度组合兼顾透水性与承载表现。具体性能优势可结合您的使用环境进一步说明，欢迎联系我们交流。
询盘引导
如需了解玻璃钢模塑格栅38*38H13的详细规格、树脂选项、颜色、包装及交付方式，欢迎联系我们获取详细规格与报价，我们将根据您的项目需求提供针对性方案。
