玻璃钢模塑格栅25*25H50
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Introduction of raw materials
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
Polished type

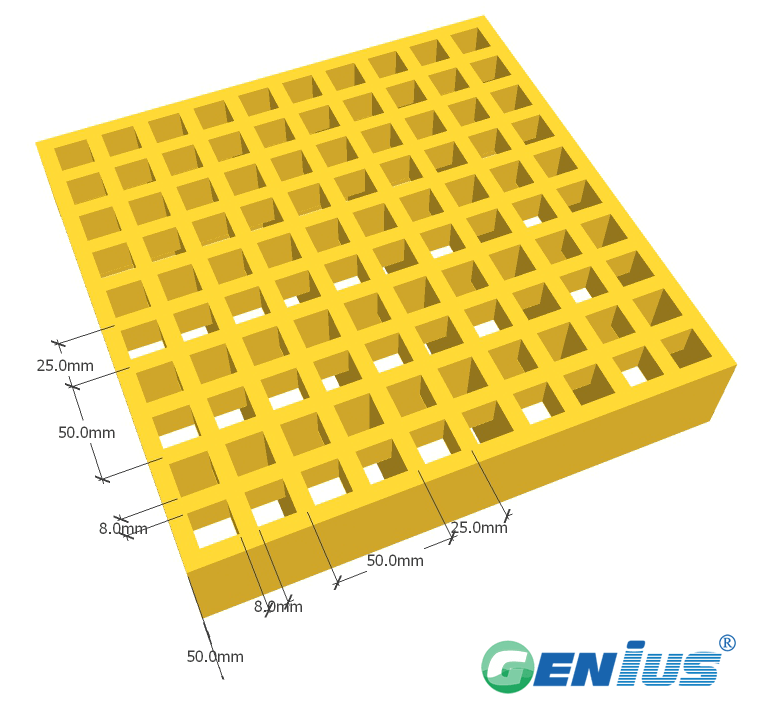

25*25*50(mm)
Panel size available:
1524*4000 Bidirectional force.
Bearing bar thickness (Top/Bottom)：8.0/6.0
Bearing bar center：25
Open Aera：55%
Approx Weight：28.5kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅25*25H50具有耐腐蚀、轻质高强、防滑等特性，适用于化工、电镀、水处理、海洋工程等行业的操作平台、走道、楼梯踏板及地沟盖板。其25mm网格与50mm厚度在承重与透水性之间取得平衡，适合中等荷载的工业环境。具体场景选型欢迎联系我们获取详细建议。
选型指导
选型时需确认树脂类型（如邻苯、间苯、乙烯基酯或双酚A型）以匹配耐腐蚀要求，并根据荷载、跨距选择格栅厚度与网格尺寸（本产品为25*25H50）。同时可考虑表面防滑处理（如加砂）及颜色定制。如需技术选型支持，欢迎联系我们获取详细规格与报价。
产品优势
本产品采用不饱和聚酯树脂与无碱玻璃纤维模压成型，具有优异的耐腐蚀性、抗老化性和电绝缘性，且重量轻、安装便捷、维护成本低。其结构设计兼顾承载与排水，适用于多种工业环境。欢迎联系我们获取详细规格与报价。
询盘引导
如需了解玻璃钢模塑格栅25*25H50的详细规格、技术参数、定制选项及商业条款，请通过网站或电话联系我们。我们将根据您的具体需求提供专业的技术支持和报价方案。
