玻璃钢模塑格栅25*152H38
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

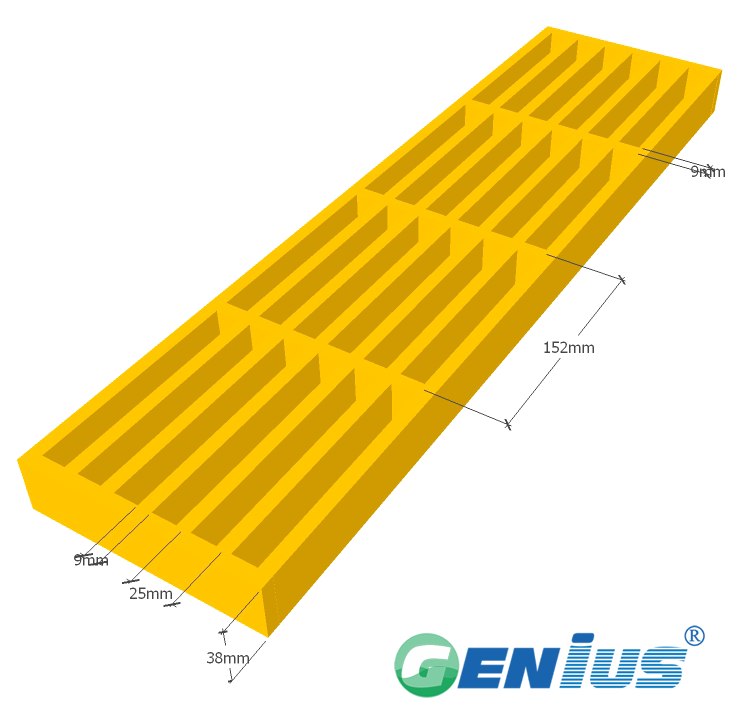

25*152*38(mm)
Panel size available:
1220*3660,1220*2440,915*3050 Length stress
Bearing bar thickness (Top/Bottom)：9.0/6.5
Bearing bar center：25
Open Aera：63%
Approx Weight：22.5kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅25*152H38适用于对防滑、耐腐蚀和承载有要求的走道、平台、沟盖及设备操作面，常见于化工、水处理、电力和海洋工程等环境。具体场景是否适配，欢迎联系我们的技术团队沟通确认。
选型指导
选型时需关注树脂体系（如邻苯、间苯、乙烯基或双酚A型）、格栅厚度与网孔尺寸是否匹配荷载与介质条件，并可结合是否需阻燃、防滑面或特殊颜色来确认。由于涉及具体工况参数，建议您提供使用环境信息，由我们协助完成规格选择。
产品优势
该模塑格栅以不饱和聚酯树脂为基体、玻璃纤维增强，具有轻质高强、耐化学腐蚀、绝缘无磁及便于切割安装的特点，表面可做防滑处理。相比传统金属格栅，其在潮湿或腐蚀性环境中更利于长期使用与维护，具体性能表现视树脂与配方而定。
询盘引导
如需了解玻璃钢模塑格栅25*152H38的详细规格、适配方案与商务条款，欢迎联系我们获取详细规格与报价。请告知您的应用环境、所需尺寸与数量，我们将尽快为您提供选型建议与产品资料。
