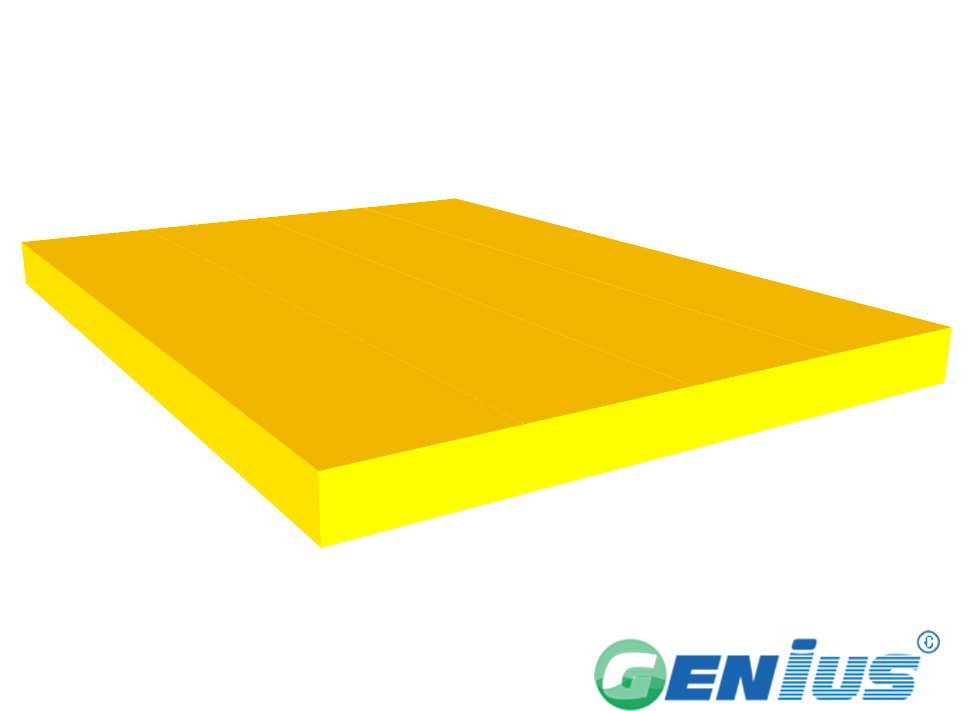

结构型材-平条(邻苯)
欢迎询价。
Genius FRP
FRP structural shapes profile is made of glass fiber reinforced material, resin as adhesive, glass fiber cloth as a package reinforcement layer, through the thorough penetration, in the metal mold heating, molding, curing, drawing in the traction machine pulled A new type of composite material, with good physical properties, widely used in high strength, large span Situation.
Varieties | Size(mm) | Weight(kg/m) | Size(in) | Weight(lbs/in) |
Riglet | Width*Thickness | Width*Thickness |
| |
FS19 | 19*6.4 | 0.25 | 3/4" x 1/4" | 0.55 |
FS30A | 30*3 | 0.18 | 19/16" x 1/8" | 0.4 |
FS30B | 30*6.4 | 0.37 | 19/16" x 1/4" | 0.82 |
FS35 | 35*8 | 0.54 | 11/8" x 5/16" | 1.19 |
FS38 | 38*5 | 0.37 | 3/2" x 3/16" | 0.82 |
FS40A | 40*8 | 0.62 | 25/16" x 5/16" | 1.37 |
FS40B | 40*10 | 0.79 | 25/16" x 3/8" | 1.74 |
FS46B | 46*6.4 | 0.58 | 29/16" x 1/4" | 1.28 |
FS50A | 50*2 | 0.25 | 2" x 1/16" | 0.55 |
FS50B | 50*4 | 0.38 | 2" x 3/16" | 0.84 |
FS50C | 50*6 | 0.59 | 2" x 1/4" | 1.3 |
FS50D | 50*8 | 0.76 | 2" x 5/16" | 1.68 |
FS50E | 50*15 | 1.43 | 2" x 9/16" | 3.15 |
FS60A | 60*2 | 0.24 | 19/8" x 1/16" | 0.53 |
FS60B | 60*4 | 0.48 | 19/8" x 3/16" | 1.06 |
FS64 | 64*4.8 | 0.6 | 5/2" x 3/16" | 1.32 |
FS70 | 70*4 | 0.55 | 11/4" x 3/16" | 1.21 |
FS76 | 76*9.5 | 1.42 | 3" x 3/8" | 3.13 |
FS100A | 100*10 | 1.95 | 4" x 3/8" | 4.3 |
FS100B | 100*25 | 4.85 | 4" x 1" | 10.7 |
FS102A | 102*3.2 | 0.63 | 4" x 1/8" | 1.39 |
FS102B | 102*5 | 0.97 | 4" x 3/16" | 2.4 |
FS102C | 102*6.4 | 1.3 | 4" x 1/4" | 2.87 |
FS120 | 120*10 | 2.4 | 19/4" x 3/8" | 5.29 |
FS152A | 152*10 | 2.92 | 6" x 3/8" | 6.44 |
FS152B | 152*20 | 5.9 | 6" x 13/16" | 13 |
FS190 | 190*15 | 5.42 | 15/2" x 9/16" | 12 |
FS280 | 280*10 | 5.32 | 11" x 3/8" | 11.7 |
FS300 | 300*24 | 14.4 | 12" x 15/16" | 31.8 |
FS355 | 355*5 | 3.5 | 14" x 3/16" | 7.72 |
FS555 | 555*5 | 5.4 | 22" x 3/16" | 11.9 |
FS751 | 751*5 | 7.2 | 30" x 3/16" | 15.9 |
Markets
Architectural
Bridge & Highway
Chemical
Food & Beverage
Manufacturing
Metals & Mining
Microelectronics
Oil & Gsa
Pharmaceutical
Power
Pulp & Paper
Recreation
Telecommunications
Transportation
Water & Wastewater
The characteristics:
Corrosion Resistant
Low Maintenance
Fire Retardant
Low Install Cost
Heavy Metal Safe
Long Service Life
Electrically & Thermally Non Conductive
High Strength-to-Weight Ratio
Introduction of raw materials——Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
Application:
Genius© pultruded fiberglass structural shapes from Genius Composite Inc. are used in a wide range of applications and provide a unique combination of corrosion resistance, high strength, dimensional stability and light weight, along with thermal and electric non-conductivity. Durable Genius shapes provide years of low maintenance service in areas where steel, aluminum or wood components are traditionally specified. Today ,these shapes are often used in highly corrosive applications where stainless steel and other expensive components were once required.
Genius Shapes
Mechanical Properties | ASTM | Units | Value | Units | Value |
Tensile Stress, LW | D-638 | psi | 30000 | kgf/m² | 21092086 |
Tensile Stress, CW | D-638 | psi | 7000 | kgf/m² | 4921487 |
Tensile Modulus, LW | D-638 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Tensile Modulus, CW | D-638 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Compressive Stress, LW | D-695 | psi | 30000 | kgf/m² | 21092086 |
Compressive Stress, CW | D-695 | psi | 15000 | kgf/m² | 10546043 |
Compressive Modulus, LW | D-695 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Compressive Modulus, CW | D-695 | 10^6psi | 1 | 10^6kgf/m² | 703 |
Flexural Stress, LW | D-790 | psi | 30000 | kgf/m² | 21092086 |
Flexural Stress, CW | D-790 | psi | 10000 | kgf/m² | 7030695 |
Flexural Modulus, LW | D-790 | 10^6psi | 1.8 | 10^6kgf/m² | 1266 |
Flexural Modulus, CW | D-790 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Modulus of Elasticity | Full Section | 10^6psi | 2.8 | 10^6kgf/m² | 1969 |
Shear Modulus | --- | 10^6psi | 0.45 | 10^6kgf/m² | 316 |
Short Beam Shear | D-2344 | psi | 4500 | kgf/m² | 3163813 |
Punch Shear | D-732 | psi | 10000 | kgf/m² | 7030695 |
Notched Izod Impact,LW | D-256 | ft.-lbs./in. | 25 | kg/m | 3.46 |
Notched Izod Impact,CW | D-256 | ft.-lbs./in. | 4 | kg/m | 0.55 |
Excludes Round Rod and Square Bar
Physical Properties | ASTM | Units | Value |
Barcoal | D-495 | --- | 45 |
24 Hour Water Absorption | D-570 | %max | 0.45 |
Density | D-792 | lbs./in.³ | 0.062-0.07 |
Coefficient of Thermal Expansion,LW | D-696 | 10^-6in./in./℃ | 8 |
Flammability Properties | ASTM | Units | Value |
Tunnel test* | E-84 | Flame Spread | 25 max |
Flammability* | D-635 | --- | Non-Burning |
Electrical Properties | ASTM | Units | Value |
Arc Resistance,LW | D-495 | seconds | 120 |
Dielectric Strength,LW | D-149 | kv./in. | 35 |
Dielectric Strength,PF | D-149 | volts/mil | 200 |
Dielectric Constant,PF | D-150 | @60hz | 5 |
LW=Lengthwise, CW=Crosswise,PF=Perpendicular to Laminate Face
*Pertains to ISOFR and VEFR only
应用场景
结构型材-平条（邻苯）广泛应用于化工、电力、海洋工程、建筑等领域的结构支撑、平台格栅、护栏系统等。其优异的耐腐蚀性和高强度特性使其适用于高湿度、腐蚀性介质等恶劣环境。
选型指导
选型时需考虑负载要求、跨度、腐蚀环境及安装方式等因素。不同规格的平条具有不同的承载能力，建议根据实际工程需求选择合适的尺寸和厚度。欢迎联系我们获取详细规格与选型建议。
产品优势
该产品采用邻苯树脂基体，具有优异的耐腐蚀性、高强度和轻质特点。其表面光滑，易于清洁和维护，且绝缘性能好，使用寿命长，是传统金属材料的理想替代品。
询盘引导
如需了解更多产品信息、技术参数或获取报价，欢迎随时联系我们。我们的专业团队将根据您的需求提供定制化解决方案。请通过网站或电话与我们联系。
