Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Introduction of raw materials
Resin type Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
![Odoo - Sample 1 for three columns](https://cdn.niteck.com/web/image/7273/10439.jpg?access_token=1526fa94-8e2b-427a-bcd0-ebe38bcaaff1)

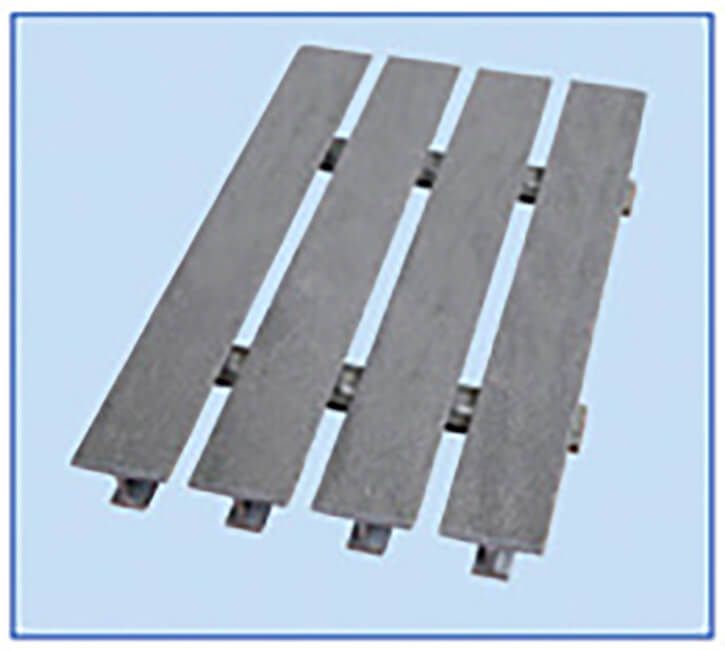

Sand surface
![Odoo - Sample 2 for three columns](https://cdn.niteck.com/web/image/7274/10440.jpg?access_token=4e385e71-109b-4e32-9d7f-7e2261ff6e19)

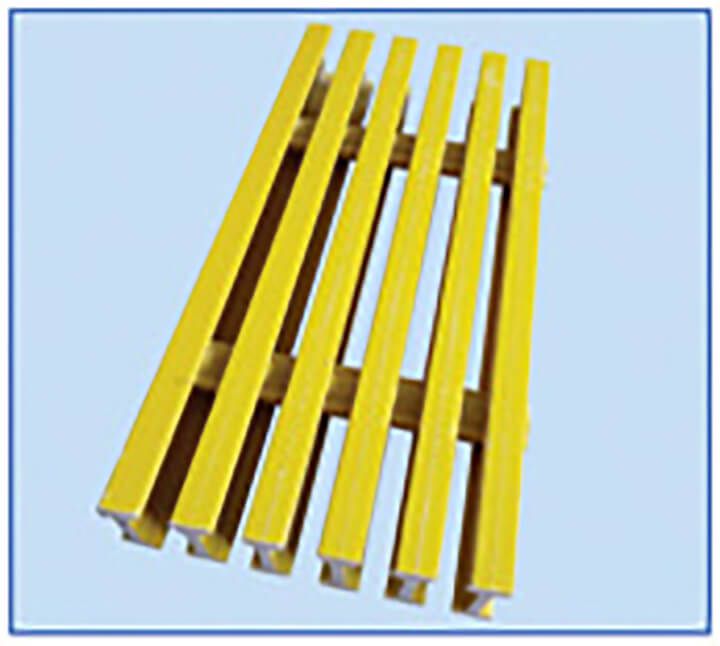

Smooth surface
![Odoo - Sample 3 for three columns](https://cdn.niteck.com/web/image/7275/10441.jpg?access_token=727464a9-e79b-4645-8b36-c31ee80b2b17)

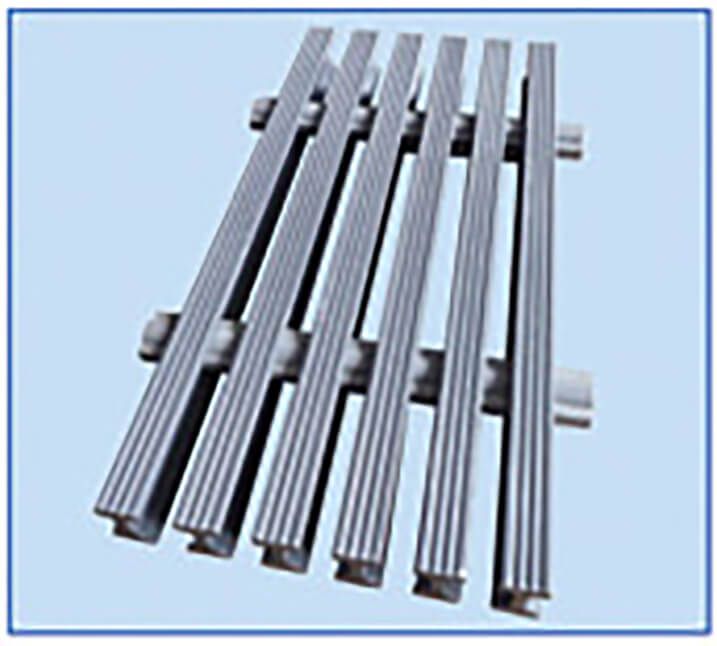

Antiskid groove surface

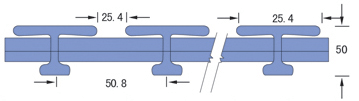

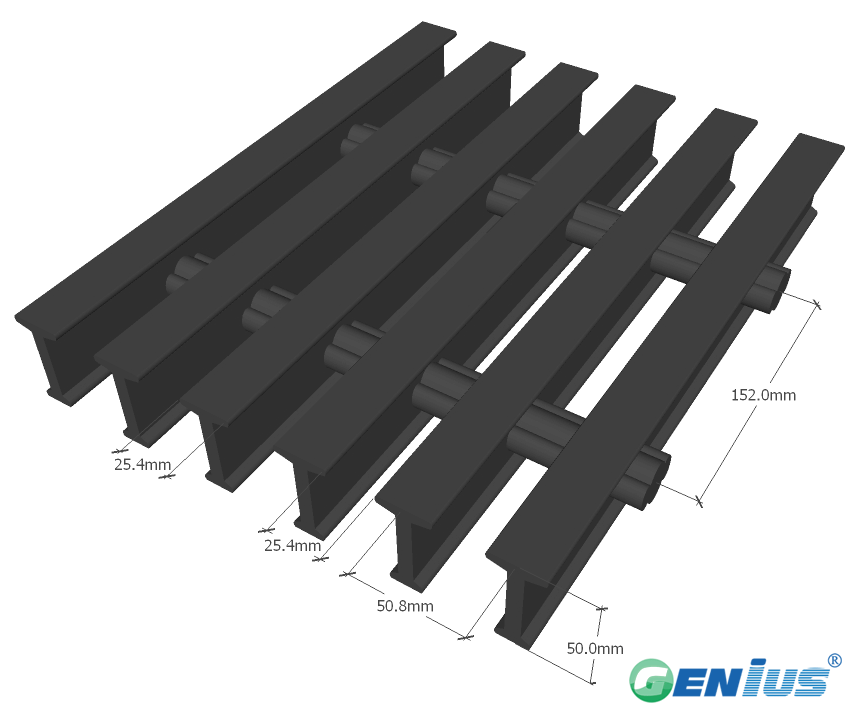

![T5020 T5020](https://cdn.niteck.com/web/image/7276/10574.png?access_token=8804b30e-1195-446b-83da-c68f23a8bac4)
Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length
Bearing Bar: 50mm
Open Area: 50%
Approx Weight (With three-core shoots): 15.66kg/m²

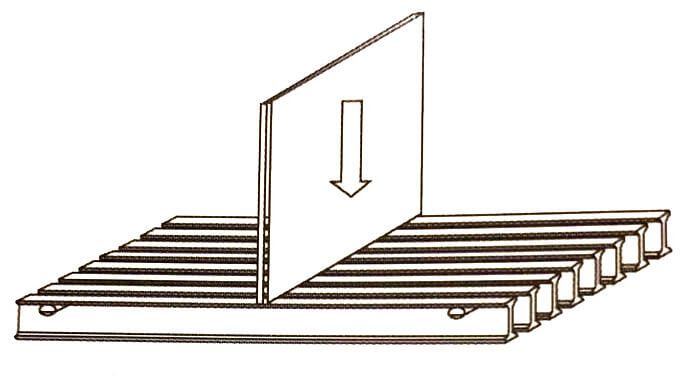

![Liner load Liner load](https://cdn.niteck.com/web/image/7277/8609.jpg?access_token=c7ef34ca-2b2e-4228-b20e-05df5e97fb9f)
Liner load(units:mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
(mm) | 300 | 450 | 750 | 1500 | 3000 | 5950 | Load |
600 | 0.25 | 0.51 | 0.76 | 1.27 | 2.29 | 4.57 | --- |
900 | 0.76 | 1.27 | 1.78 | 3.3 | 6.1 | 12.2 | --- |
1200 | 1.52 | 2.29 | 3.56 | 6.6 | 13.5 | 27.2 | --- |
1500 | 2.54 | 3.81 | 6.35 | 12.5 | 24.6 | 49.5 | --- |

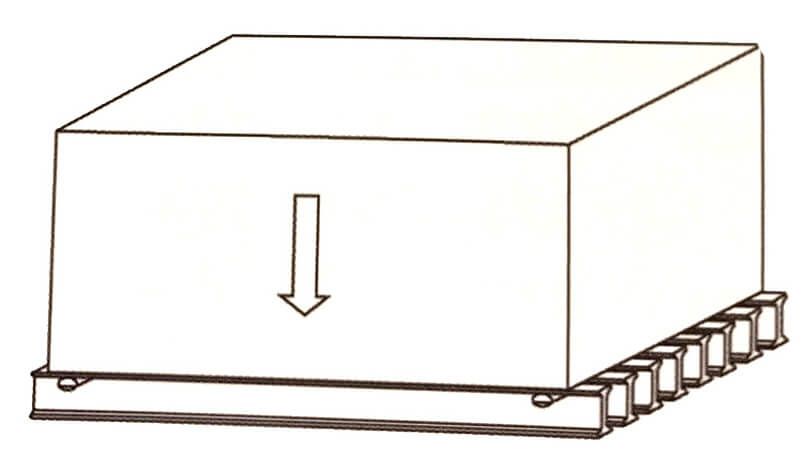

![Uniform load Uniform load](https://cdn.niteck.com/web/image/7278/8610.jpg?access_token=cd87bb8f-e370-4d45-9780-872e5ad81e7d)
Uniform load(units:mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
(mm) | 1000 | 1900 | 3900 | 7000 | 9500 | 19500 | Load |
600 | 0.51 | 0.76 | 1.27 | 2.29 | 3.05 | 6.35 | --- |
900 | 1.02 | 2.03 | 3.81 | 6.86 | 9.4 | --- | --- |
1200 | 3.3 | 6.35 | 12.5 | --- | --- | --- | --- |
1500 | 6.86 | 13.5 | --- | --- | --- | --- | --- |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories

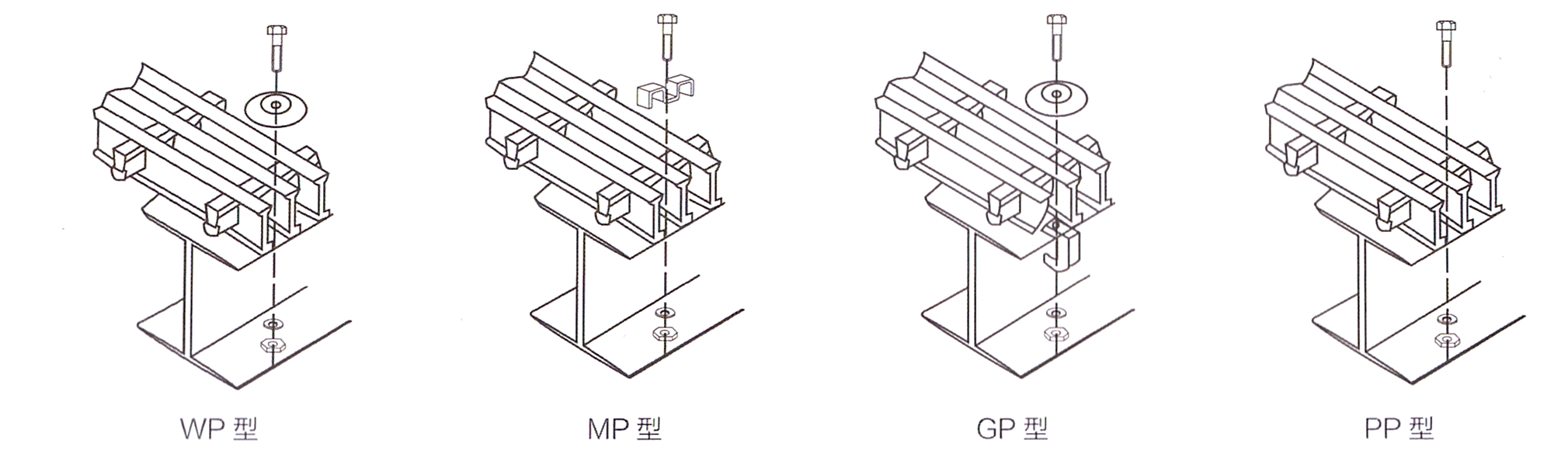

![Installation and accessories](https://cdn.niteck.com/web/image/7279/10456.png?access_token=db53ee24-0d70-4b7d-8d6a-1ea36a21e539)
