拉挤格栅 T-3815
欢迎询价。
Genius FRP

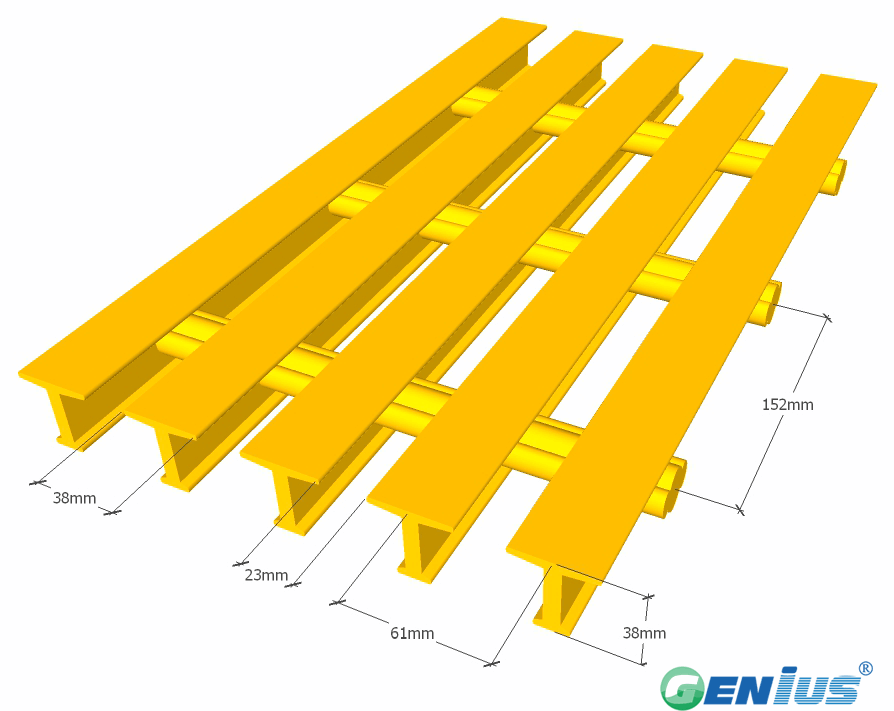

Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length

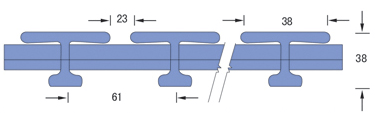

Bearing Bar: 38mm
Open Area: 38%
Approx Weight (With three-core shoots): 14.2kg/m²
Liner load（units:mm）
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
(mm) | 150 | 300 | 450 | 750 | 1500 | 3000 | Load |
| 450 | 0.25 | 0.25 | 0.51 | 0.76 | 1.27 | 2.54 | 6288 |
| 600 | 0.25 | 0.51 | 0.76 | 1.27 | 2.29 | 4.83 | 5021 |
| 900 | 0.76 | 1.52 | 2.29 | 3.81 | 7.62 | --- | 3353 |
| 1200 | 1.78 | 3.3 | 5.08 | 8.38 | --- | --- | 2503 |
Uniform load（units：mm）
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
(mm) | 450 | 950 | 1450 | 2400 | 4850 | 9500 | Load |
| 450 | <0.25 | 0.25 | 0.25 | 0.51 | 1.27 | 2.54 | 13713 |
| 600 | 0.25 | 0.51 | 1.01 | 1.52 | 3.05 | 6.1 | 10297 |
| 900 | 1.52 | 2.79 | 4.32 | 7.11 | --- | --- | 6881 |
| 1200 | 4.32 | 8.38 | 12.7 | --- | --- | --- | 4099 |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories
应用场景
拉挤格栅 T-3815 适用于对承载与耐腐蚀同时有要求的平台、走道、沟盖及操作面，常见于化工、水处理、电力与海洋工程等存在腐蚀介质或潮湿环境的场合。若需确认在具体介质、温度或荷载条件下的适用性，欢迎联系我们沟通工况细节。
选型指导
本产品以拉挤“I”“T”型材作承力条、实心管或棒作连接杆组装而成，选型时建议结合承载跨度、使用环境与树脂体系（如 OFR、IFR、VEFR 或酚醛型）综合判断。不同树脂类型对应不同的阻燃与耐腐蚀表现，欢迎提供工况条件，由我们协助推荐合适的配置。
产品优势
相比传统金属格栅，拉挤格栅具有轻质高强、耐腐蚀、免维护等特点，长期使用不易锈蚀，且便于现场切割与安装。其纵向承力条结构使板材在跨度方向具备良好的承载能力，适合需要频繁检修或长期暴露于腐蚀环境的场所。
询盘引导
如需了解拉挤格栅 T-3815 的详细规格、树脂体系选择及商务条件，欢迎联系我们获取详细规格与报价。请提供使用环境、承载要求与尺寸需求，我们将据此给出针对性的方案与供货信息。
