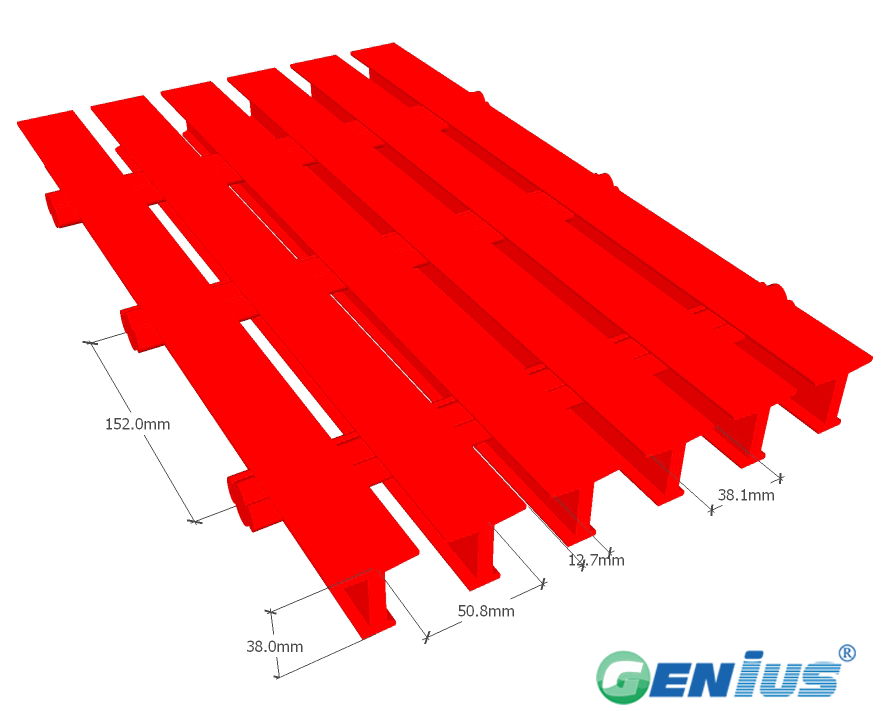

拉挤格栅 T-2515
欢迎询价。
Genius FRP
Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length

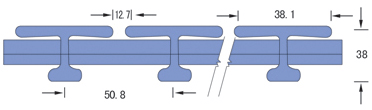

Bearing Bar: 38mm
Open Area: 25%
Approx Weight (With three-core shoots): 16.7kg/m²
Liner load（units:mm）
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
(mm) | 150 | 300 | 450 | 750 | 1500 | 3000 | Load |
| 450 | <0.25 | 0.25 | 0.25 | 0.51 | 1.02 | 2.29 | 7539 |
| 600 | 0.25 | 0.51 | 0.51 | 1.02 | 2.03 | 4.06 | 6020 |
| 900 | 0.51 | 1.27 | 1.78 | 3.05 | 6.35 | 12.4 | 4023 |
| 1200 | 1.52 | 2.79 | 4.32 | 7.11 | --- | --- | 3010 |
Uniform load（units：mm）
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
(mm) | 450 | 950 | 1450 | 2400 | 4850 | 9500 | Load |
| 450 | <0.25 | 0.25 | 0.25 | 0.51 | 1.02 | 2.03 | 16494 |
| 600 | 0.25 | 0.51 | 0.76 | 1.27 | 2.54 | 5.08 | 12346 |
| 900 | 1.27 | 2.29 | 3.56 | 5.84 | 11.7 | --- | 8247 |
| 1200 | 3.56 | 7.11 | 10.7 | --- | --- | --- | 4929 |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories
应用场景
拉挤格栅 T-2515 采用拉挤 I/T 型承载条与实心管或棒作为连接杆组装而成，适用于对承载、耐腐蚀与透水透气有要求的平台、走道、沟盖及各类工业操作面。具体场景的载荷与跨距要求，欢迎联系我们结合工况确认选型。
选型指导
选型时可从树脂体系（如邻苯、间苯、乙烯基或酚醛等）、承载条规格与格栅间隙三方面匹配使用环境与承载需求；腐蚀性强或防火要求高的场合可优先考虑对应树脂类型。请提供使用环境、跨距与载荷条件，我们将协助您确定合适配置。
产品优势
拉挤格栅以连续拉挤型材为承载单元，纤维沿受力方向连续分布，兼具较高的纵向强度、轻质与耐腐蚀特性，且组装式结构便于切割与现场安装。表面可做防滑处理，适合潮湿或易滑环境使用。
询盘引导
如需了解拉挤格栅 T-2515 的详细规格、树脂与颜色选项、供货形式及商务条款，欢迎联系我们获取详细规格与报价。请告知使用场景与数量需求，我们将尽快为您提供选型建议与方案。
