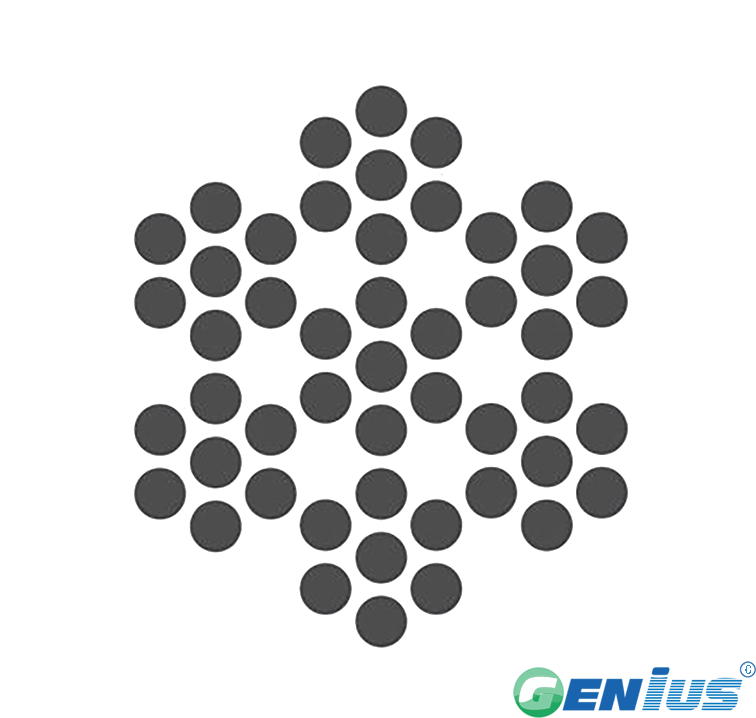

LM Marine Grade stainless steel Wire Rope GB7x7 (6/1)
Request a Quote
Please feel freely to contact with us for new price .
Product Details
7x7 Stainless Steel Wire RopeMore flexible than 1x19, stronger than 7x19.In smaller diameters,7x7it offers excellent breaking load and flexibility,and is widely used throughout the marine industry and general engineering applications.
Surface finish: bright or galvanized
Standard: GB/T 20118-2006
Engineering Applications
Control anchor cables
Guardrails
Fixed guy wires
Running ropes
Steering cables
Marine environments
Wastewater treatment projects
Wire rope slings
Boat hoist ropes
Breaking load
Diameter
| Weight
|
Minimum breaking load (1570MPa)
|
Minimum breaking load (1570MPa)
|
|---|---|---|---|
mm | kg/m | KN |
Kg |
| 1 | 0.004 | 0.59 | 60 |
| 2 | 0.016 | 2.37 | 241 |
| 2.5 | 0.023 | 3.71 | 378 |
| 3 | 0.034 | 5.34 | 544 |
| 4 | 0.06 | 9.49 | 967 |
| 5 | 0.1 | 14.8 | 1509 |
| 6 | 0.14 | 21.4 | 2182 |
| 7 | 0.19 | 29.1 | 2967 |
| 8 | 0.24 | 38 | 3874 |
| 10 | 0.38 | 59.3 | 6046 |
| 12 | 0.55 | 85.4 | 8708 |
| 14 | 0.74 | 117 | 11930 |
General engineering wire rope
Greenlogy TEC (LM) specializes in supplying multi-strand bright or galvanized wire ropes. Our products range from 0.5mm to 64mm in diameter, including 1X19, 7X7, 6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 specifications with fiber core and steel core. In addition to these standard wire ropes, we can also provide high-quality special wire ropes.
Most wire ropes work under demanding conditions and must resist crushing, bending fatigue and abrasion. All our wire ropes are engineered to achieve a high level of performance in order to extend service life and thereby improve end-user productivity. We therefore ensure that all materials are produced in accordance with wire rope industry standards. Every wire rope can be supplied with assembly components such as thimbles, swaged terminals and wedge sockets, as well as many others. In addition, we offer customization services: our engineering team can manufacture wire ropes to the specifications you require. All materials are certified, traceable and conform to ISO9001.
Selection Guide
Greenlogy TEC marine-grade stainless steel wire rope 7x7 (6/1) is suitable for general engineering and marine environments. When selecting, the required diameter, surface finish (bright or galvanized) and construction must be confirmed according to the actual working conditions. Different specifications vary in flexibility and load-bearing characteristics. Please contact us for detailed specifications, quotations and selection advice.
Product Advantages
The 7x7 construction combines excellent breaking load and flexibility within a smaller diameter. It is more flexible than 1x19 and stronger than 7x19, making it suitable for applications such as control cables, guardrails, guy wires and running rigging. The product conforms to the national standard GB/T 20118-2006 and is available in bright or galvanized finish.
Inquiry Guide
For detailed parameters such as diameter range, weight and minimum breaking load (1570MPa), or for customized special wire ropes, please contact us for detailed specifications and quotations. Please provide the required diameter, surface finish, application and quantity, and we will recommend a suitable solution.
Operating Environment
- In marine environments, this 7x7 stainless steel wire rope is used for control anchor cables, guardrails, fixed guy wires, running ropes, steering cables and boat hoist ropes where salt-laden air and constant moisture demand corrosion-resistant wire rope.
- For wastewater treatment projects, the rope can be deployed in areas of high humidity and exposure to corrosive media, where stainless steel construction helps maintain performance.
- General engineering applications may require indoor or outdoor installation; the bright or galvanized surface finish can be selected to suit the specific atmospheric conditions.
- With a minimum breaking load based on 1570MPa, the rope is suitable for operating temperatures typical of marine and industrial settings; contact us for detailed environmental parameters and application-specific guidance.
