拉挤格栅 I-5015
欢迎询价。
Genius FRP
Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Introduction of raw materials
Resin type Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
![Odoo - Sample 1 for three columns](https://cdn.niteck.com/web/image/7196/10439.jpg?access_token=216d2051-197c-4510-bf61-fea7fc2f0900)
Sand surface
![Odoo - Sample 2 for three columns](https://cdn.niteck.com/web/image/7197/10440.jpg?access_token=4745dd85-17ca-4f6f-87d3-4ff404a9a07e)
Smooth surface
![Odoo - Sample 3 for three columns](https://cdn.niteck.com/web/image/7198/10441.jpg?access_token=07ca7e57-e515-4eae-b406-dd632693f7c4)
Antiskid groove surface

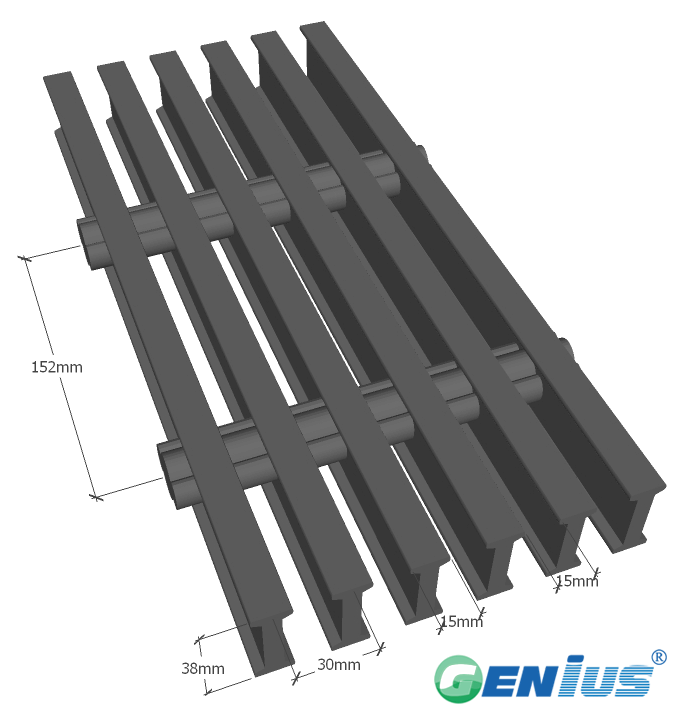

![I 5015 I 5015](https://cdn.niteck.com/web/image/7199/10496.png?access_token=1f711796-f5fe-4f38-90f7-89b4adde514d)
Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length
Bearing Bar: 38mm
Open Area: 50%
Approx Weight (With three-core shoots): 19.1kg/m²
![Liner load Liner load](https://cdn.niteck.com/web/image/7200/8609.jpg?access_token=f492b58c-2165-41db-aa06-fecac8f1732e)
Liner load(units:mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
(mm) | 300 | 450 | 750 | 1500 | 3000 | 5950 | Load |
450 | 0.15 | 0.25 | 0.51 | 1.02 | 1.78 | 3.3 | 21836 |
600 | 0.31 | 0.51 | 1.02 | 1.78 | 3.56 | 6.86 | 16385 |
900 | 1.02 | 1.52 | 2.54 | 6.08 | 11.9 | 20.9 | 10576 |
1200 | 2.89 | 4.56 | 7.84 | 14.9 | 28.4 | --- | 7567 |
![Uniform load Uniform load](https://cdn.niteck.com/web/image/7201/8610.jpg?access_token=675d5951-0a89-4a85-8c33-4183b0816c3c)
Uniform load(units:mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
(mm) | 1000 | 1900 | 3900 | 7000 | 9500 | 19500 | Load |
450 | 0.25 | 0.51 | 0.96 | 2.27 | 2.97 | 4.56 | 95537 |
600 | 0.81 | 1.52 | 2.61 | 4.95 | 6.96 | 12.9 | 53755 |
900 | 2.58 | 4.93 | 9.15 | 17.7 | --- | --- | 23164 |
1200 | 6.59 | 12.7 | --- | --- | --- | --- | 12422 |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories
![Installation and accessories Installation and accessories](https://cdn.niteck.com/web/image/7202/10456.png?access_token=ae890401-4cfa-4453-a867-5566b58f683e)
