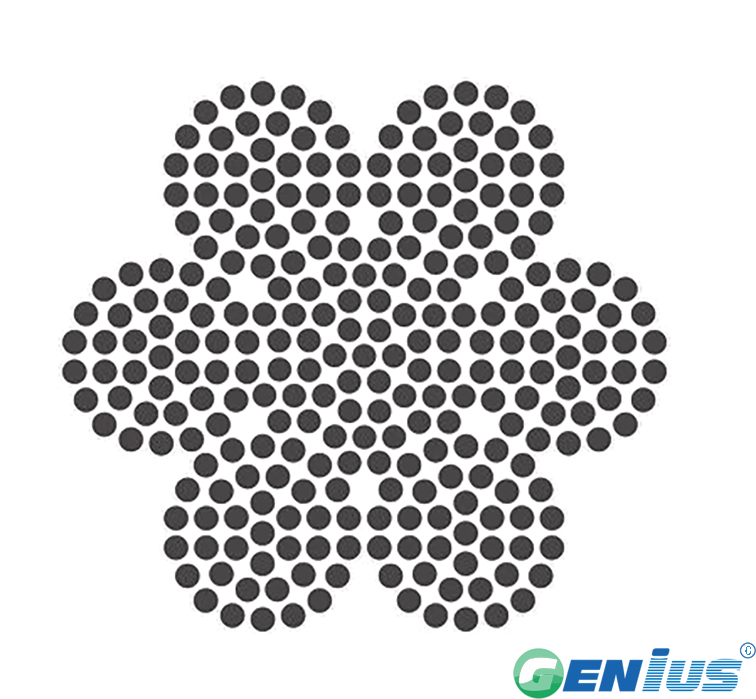

绿盟GB(有涂层)钢丝绳6X37 IWRC
发起询价
欢迎询价。
Product Details
The 6x37 specification is generally used for cross-lay applications in engineering, and IWRC (Independent Wire Rope Core) is also available. 6x36 is more popular in the UK, while in continental Europe, the 6x37 specification is generally used.
Surface treatment: bright or galvanized
Standard: GB/T 20118-2006
Engineering Applications
General Engineering Wire Rope
Crane Wire Rope
Sling
Breaking Load
|
|
Minimum Breaking Load |
Minimum Breaking Load |
Minimum Breaking Load | Minimum Breaking Load |
|---|---|---|---|---|---|
Diameter | Weight |
(1770Mpa) |
(1770Mpa) |
(1960Mpa) |
(1960Mpa) |
mm | kg/m | KN | Kg | KN | Kg |
| 12 | 0.55 | 81.3 | 8293 | 90 | 9183 |
| 13 | 0.64 | 95.4 | 9733 | 106 | 10777 |
| 14 | 0.75 | 111 | 11288 | 123 | 12499 |
| 16 | 0.98 | 145 | 14743 | 160 | 16326 |
| 18 | 1.23 | 183 | 18659 | 203 | 20662 |
| 20 | 1.52 | 226 | 23036 | 250 | 25509 |
| 22 | 1.84 | 273 | 27874 | 302 | 30866 |
| 24 | 2.2 | 325 | 33173 | 360 | 36734 |
| 26 | 2.58 | 382 | 38932 | 423 | 43111 |
| 28 | 2.99 | 443 | 45152 | 490 | 49999 |
| 30 | 3.43 | 508 | 51833 | 563 | 57397 |
| 32 | 3.9 | 578 | 58974 | 640 | 65305 |
| 34 | 4.4 | 653 | 66576 | 723 | 73723 |
| 36 | 4.94 | 732 | 74639 | 810 | 82651 |
| 38 | 5.5 | 815 | 83163 | 903 | 92090 |
| 40 | 6.1 | 903 | 92147 | 1000 | 102039 |
| 42 | 6.72 | 996 | 101592 | 1103 | 112498 |
| 44 | 7.38 | 1093 | 111498 | 1211 | 123467 |
| 46 | 8.06 | 1195 | 121865 | 1323 | 134946 |
| 48 | 8.78 | 1301 | 132692 | 1441 | 146936 |
General Engineering Wire Rope
Greenlogy TEC specializes in supplying multi-strand bright or galvanized wire rope. Our products range in diameter from 0.5mm to 64mm, including 1X19, 7X7, 6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 specifications with fiber core and steel core. In addition to these standard wire ropes, we can also supply high-quality special wire ropes.
Most wire ropes work under demanding conditions and must be resistant to crushing, bending fatigue and abrasion. All our wire ropes aim to achieve a high level of performance to extend service life and thereby improve end-user productivity. We therefore ensure that all materials are produced in accordance with wire rope industry standards. Each wire rope can be supplied with fittings such as thimbles, swaged ends and wedge sockets, as well as many other assembly components. We also offer customization services; our engineering team can manufacture wire ropes to your required specifications. All materials are certified, traceable and compliant with ISO9001.
Selection Guide
LM (coated) wire rope GB6X37.IWRC is suitable for general engineering, lifting and slinging applications. When selecting, please confirm the diameter, surface treatment (bright or galvanized) and required minimum breaking load grade according to actual working conditions. Different diameters correspond to different weights and load capacities, so it is recommended to evaluate comprehensively in combination with equipment sheave groove dimensions, safety factor and frequency of use. Please contact us for detailed specifications and selection advice.
Product Advantages
This product adopts a 6x37 structure with optional IWRC (Independent Wire Rope Core), balancing flexibility and abrasion resistance, making it suitable for cross-lay and frequently bending engineering applications. Surface treatment can be bright or galvanized to suit different corrosive environments; it complies with the GB/T 20118-2006 standard, with stable and reliable quality. For specific performance, please refer to actual testing and working conditions. Inquiries are welcome.
Inquiry Guide
For detailed specifications, surface treatment options, packaging methods and supply capability of LM (coated) wire rope GB6X37.IWRC, please contact us for detailed specifications and quotations. Please provide the required diameter, core type, surface treatment and estimated quantity, and we will recommend a suitable solution as soon as possible.
Operating Environment
- This LM (Coating) wire rope in GB6X37.IWRC construction is intended for general engineering, crane and sling duties, where it operates in the open air as well as under plant roofs.
- The coating on this wire rope, together with the bright or galvanized surface treatment stated on this page, is selected to suit sites exposed to moisture, humidity and atmospheric corrosion.
- Typical working conditions include repeated load cycling and abrasion over sheaves, drums and terminations, with the IWRC (Independent Wire Rope Core) supporting the outer 6x37 strands.
- For service in corrosive media or at elevated or low temperatures, confirm the coating and surface treatment choice with Greenlogy TEC before ordering.
