LM (Coating) Sealed Wire Rope GB6X19(9/9/1) FC
Please feel freely to contact with us for new price .
Product Details

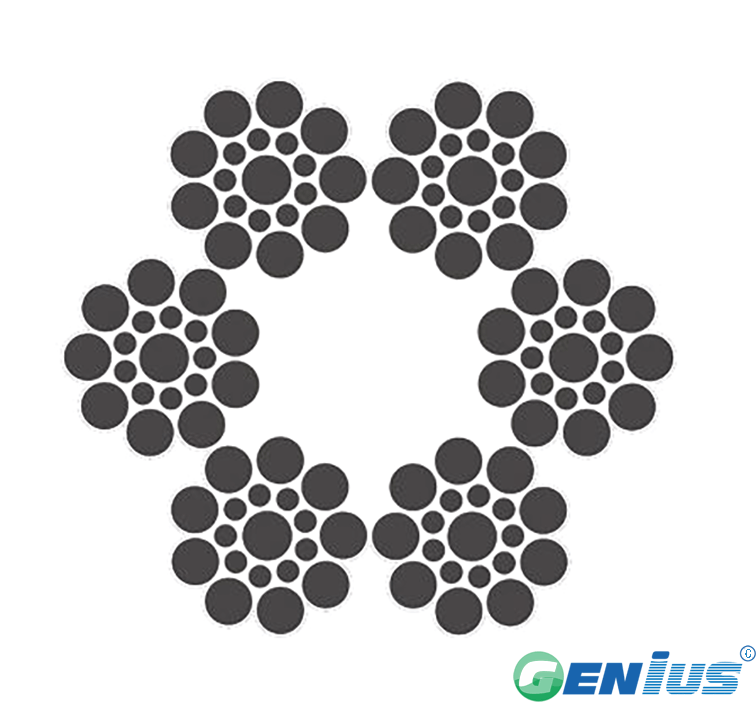

6x19 (coating) sealed construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). For applications that require higher wear resistance, 6x19 sealed wire ropes are more suitable than other 6x19 wire ropes.
Surface treatment：Ungalv or Galvanized
Standard:GB/T 20118-2006
Applications
Drilling ropes
Elevator rope
Wire rope slings
Derricking ropes
Pendant ropes
Crane rope
Sand, coring and swabbing lines
Trawl wraps / Pelagic sweeps
Ground cables
Oil well / Oil field
Excavator rope / Scraper rope
Fishing rope
Drag ropes
Breaking Loads
|
|
Min Breaking Loads |
Min Breaking Loads |
Min Breaking Loads | Min Breaking Loads |
Diameter | Weight |
(1770Mpa) |
(1770Mpa) |
(1960Mpa) |
(1960Mpa) |
mm | kg/m | KN | Kg | KN | Kg |
| 10 | 0.36 | 58.4 | 5957 | 64.7 | 6597 |
| 11 | 0.43 | 70.7 | 7209 | 78.3 | 7982 |
| 12 | 0.52 | 84.1 | 8579 | 93.1 | 9500 |
| 13 | 0.61 | 98.7 | 10068 | 109 | 11149 |
| 14 | 0.7 | 115 | 11677 | 127 | 12930 |
| 16 | 0.92 | 150 | 15252 | 166 | 16889 |
| 18 | 1.16 | 189 | 19303 | 210 | 21375 |
| 20 | 1.44 | 234 | 23831 | 259 | 26389 |
| 22 | 1.74 | 283 | 28835 | 313 | 31931 |
| 24 | 2.07 | 336 | 34317 | 373 | 38000 |
| 26 | 2.43 | 395 | 40274 | 437 | 44598 |
| 28 | 2.82 | 458 | 46709 | 507 | 51723 |
| 30 | 3.23 | 526 | 53620 | 582 | 59376 |
| 32 | 3.68 | 598 | 61008 | 662 | 67557 |
| 34 | 4.15 | 675 | 68872 | 748 | 76265 |
| 36 | 4.65 | 757 | 77213 | 838 | 85501 |
| 38 | 5.18 | 843 | 86030 | 934 | 95265 |
| 40 | 5.74 | 935 | 95235 | 1035 | 105557 |
| 42 | 6.33 | 1030 | 105095 | 1141 | 116377 |
General Engineering Ropes
GREENLOGY TEC(LM) specializes in supplying multiple strands of ungalvanised and galvanized steel wire ropes. Our products range from 0.5mm to 64mm, including 1X19, 7X7, 6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 with both Fibre Core and Steel Cores. In addition to these conventional steel wire ropes, we can also provide high-quality special steel wire ropes.
Most wire ropes are used in harsh conditions and must have resistance to extrusion, bending fatigue and abrasion. All of our wire ropes are guaranteed to achieve the highest level , maximizing the service life to increase the productivity of end users. We ensure that all materials are produced in accordance with the best standards in the wire rope industry. Each wire rope can be supplied with a thimble eyes, swaged ends and wedge sockets ,as well as many other assembly components.In addition, we also provide customized services, our team of engineers can manufacture wire ropes of your required specifications. All materials are certified, traceable, and comply with ISO9001 standards.
选型指导
选型时请先确认使用场景，是钻绳、电梯绳还是吊索等，不同工况对耐磨性和柔韧性要求不同。请结合所需直径、断裂荷载等级以及表面处理（光面或镀锌）进行匹配。若不确定具体型号，欢迎联系我们，由技术人员协助选型。
产品优势
该钢丝绳采用6x19结构，可提供FC（纤维芯）与IWRC（独立钢丝绳芯），具有较高的断裂荷载特性。相较于其他6x19钢丝绳，它在耐磨性要求高的场合更为适用，并有光面或镀锌表面可供选择。具体性能表现可结合您的工况进一步评估。
询盘引导
如需了解直径范围、芯型选择、表面处理方式及批量供应等详细商业条款，欢迎联系我们获取详细规格与报价。请告知您的应用场景与所需参数，我们将为您提供针对性的产品建议。
