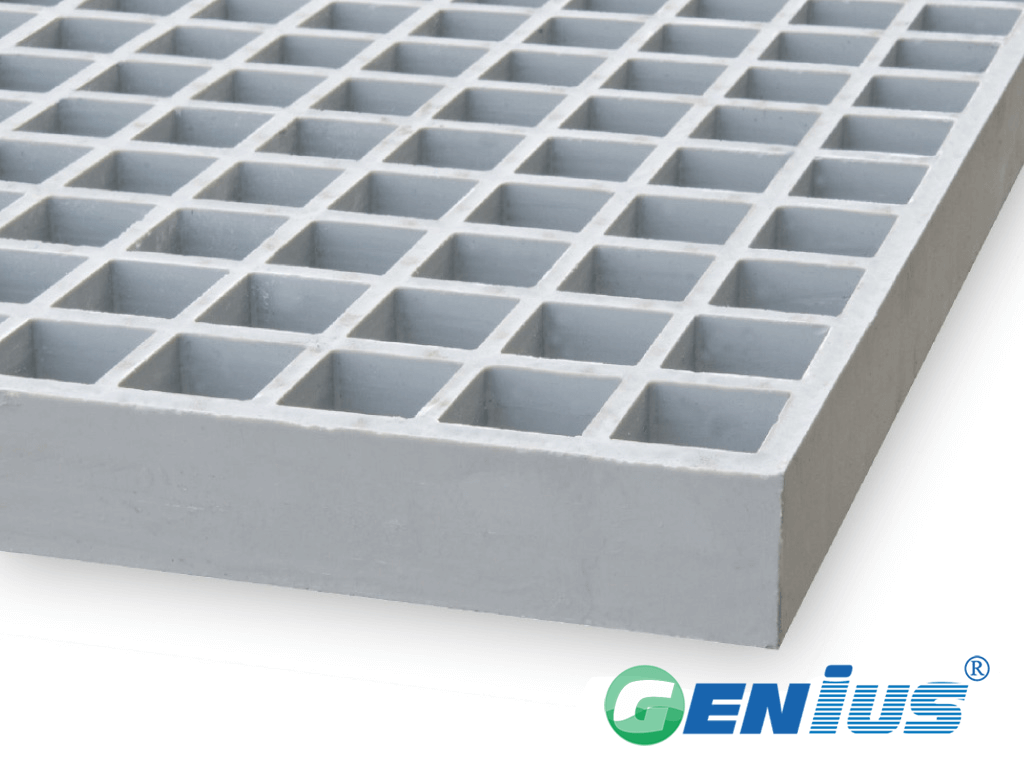

玻璃钢模塑格栅 50*50H50轻载
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

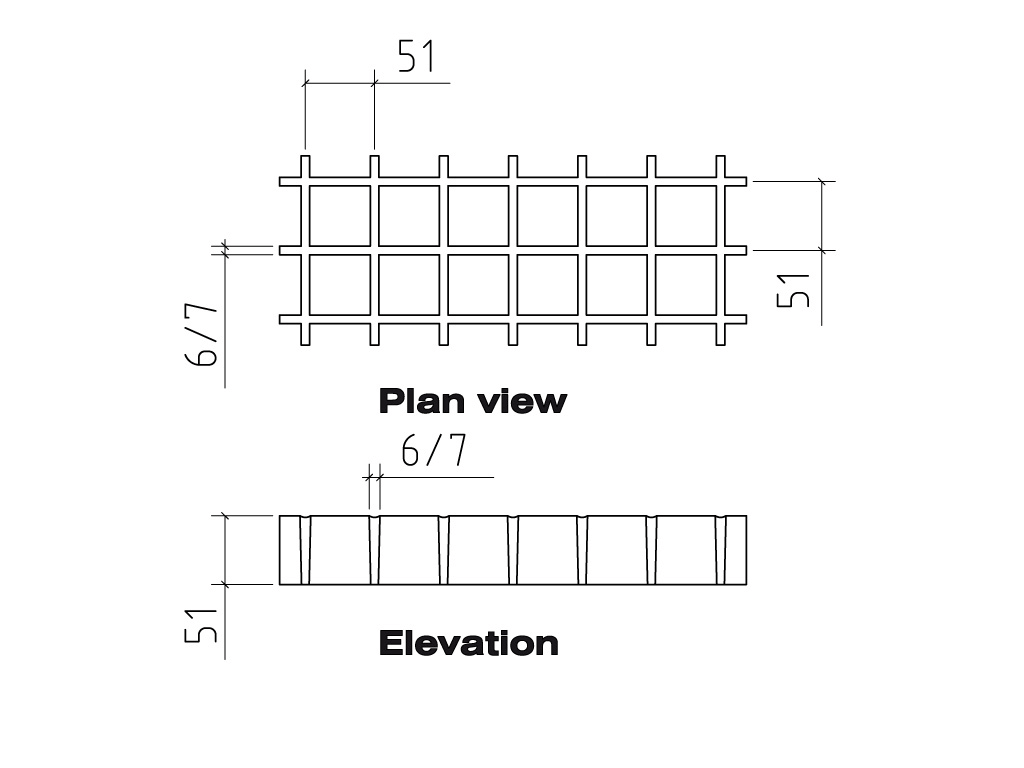

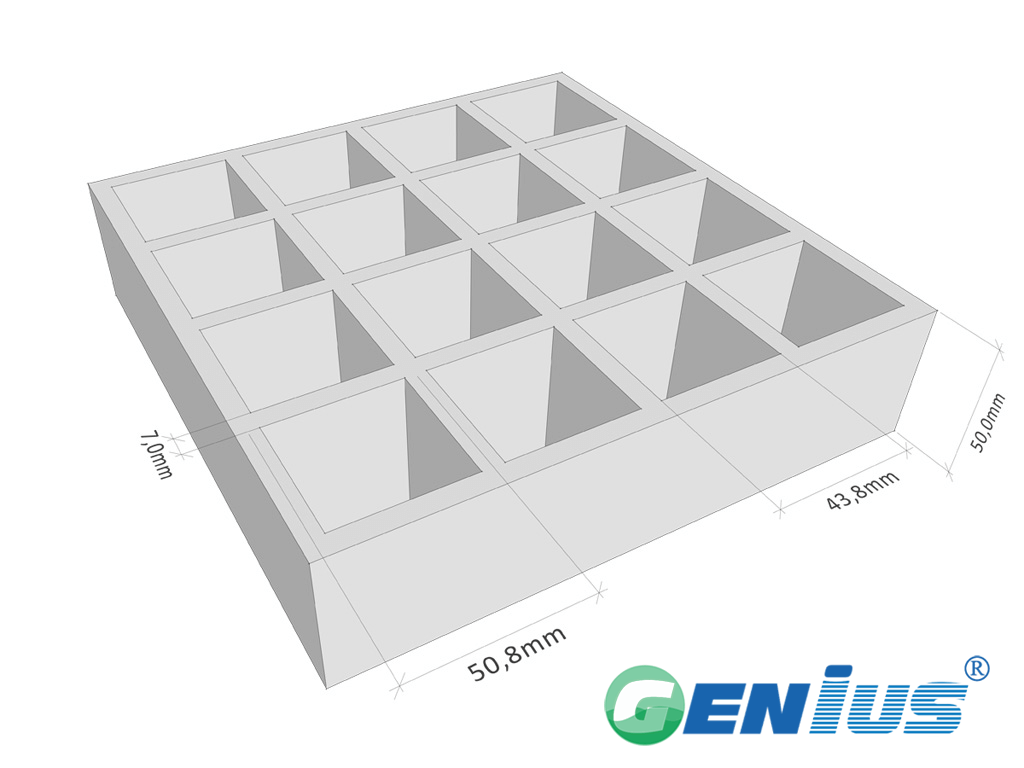

50*50*50(mm)
Panel size available:
1800*4000,1524*4000,1220*3660,
1220*2440,915*3050 Bidirectional force.
Bearing bar thickness (Top/Bottom)：7.0/5.0
Bearing bar center：50
Open Aera：78%
Approx Weight：20.8kgs/m²
Liner load（units:mm）
Span in (mm) | Load in kn/m of widht (concentrated) | Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
| 400 | 5.7 | 30 | 11.8 |
| 600 | 15.1 | 21 | 14.9 |
Uniform load（units：mm）
Span in (mm) | Load in kn/sqm (uniformed) | Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
| 400 | 1.4 | 154 | 11.8 |
| 600 | 5.7 | 73 | 14.9 |
| 800 | 1.6 | 35 | 16.5 |
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:

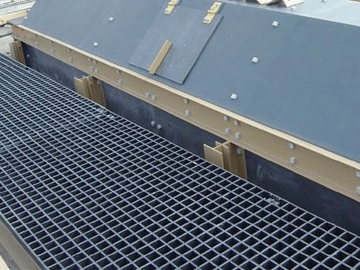

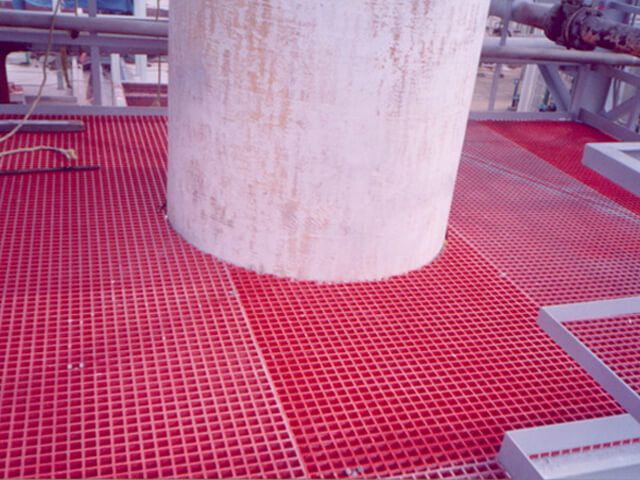

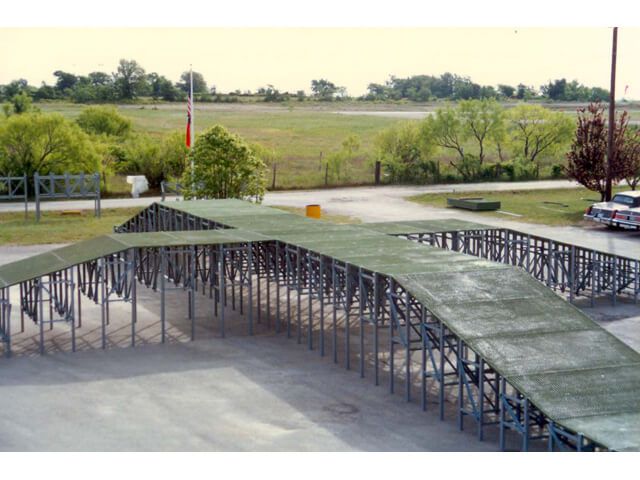

Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅 50×50H50 轻载型适用于人行通道、操作平台、地沟盖板、楼梯踏步及各类腐蚀性环境中的轻载荷支撑场合。其网格结构与轻载设计便于切割安装，可根据现场尺寸灵活调整。具体适用工况欢迎联系我们确认。
选型指导
选型时请结合承载需求、跨距、使用环境的腐蚀性与阻燃要求，以及安装方式综合判断。本产品为 50×50mm 网格、50mm 厚度轻载规格，如需不同载荷等级、树脂体系或颜色，欢迎联系我们获取详细规格与选型建议。
产品优势
采用不饱和聚酯树脂与玻璃纤维模压成型，具有耐腐蚀、轻质高强、防滑绝缘、免维护等特点，且透水透光、便于现场加工。不同树脂体系在阻燃与耐化学性上各有侧重，可按需选择。更多性能细节欢迎咨询。
询盘引导
如需了解本产品的详细规格、树脂选项、颜色定制、包装及交付安排，欢迎联系我们获取详细报价与技术支持。请提供使用场景与数量需求，我们将为您推荐合适方案。
