玻璃钢模塑格栅50*50H40
欢迎询价。
Genius FRP

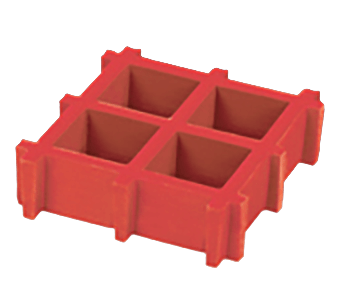

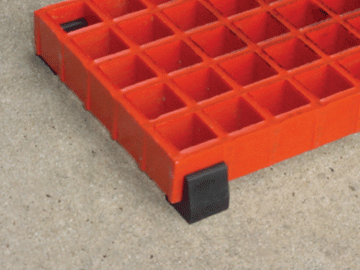

Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Introduction of raw materials
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

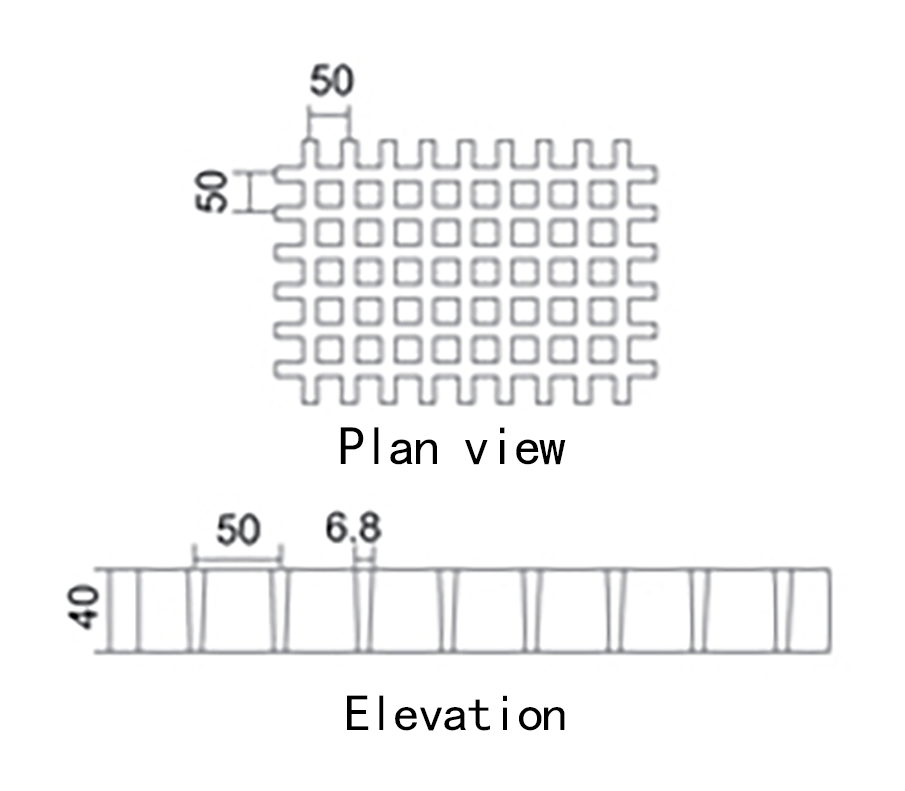

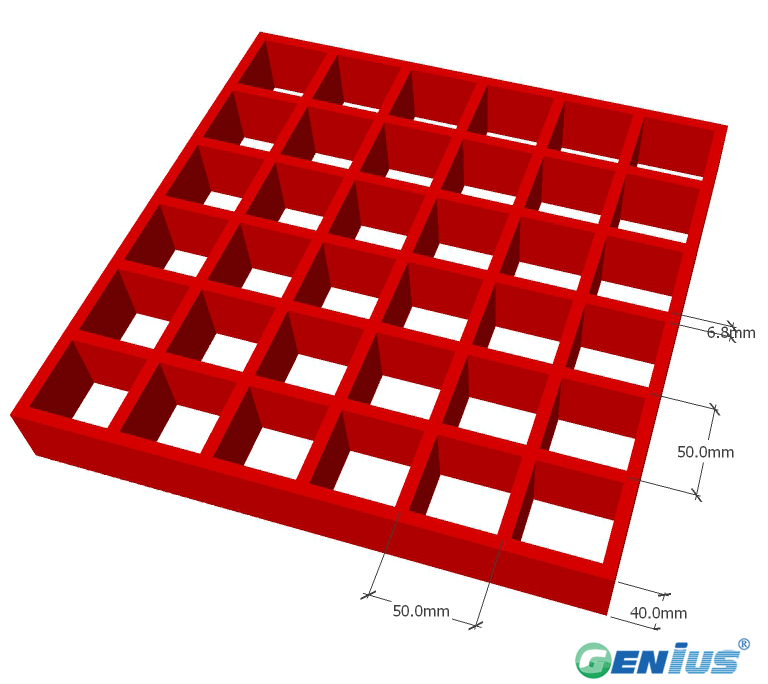

50*50*40(mm)
Panel size available:
1788*4531,1225*5035 Bidirectional force.
Bearing bar thickness (Top/Bottom)：6.8/5.0
Bearing bar center：50
Open Aera：80%
Approx Weight：15.82kgs/m²
Liner load（units:mm）
Span in (mm) | Load in kn/m of widht (concentrated) | Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
| 400 | 4.4 | 30 | 11.8 |
| 600 | 11.8 | 21 | 14.9 |
Uniform load（units：mm）
Span in (mm) | Load in kn/sqm (uniformed) | Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
| 400 | 1.1 | 154 | 11.8 |
| 600 | 4.4 | 73 | 14.9 |
| 800 | 1.3 | 35 | 16.6 |
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:

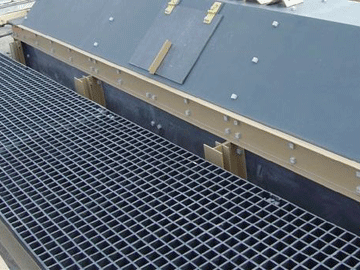

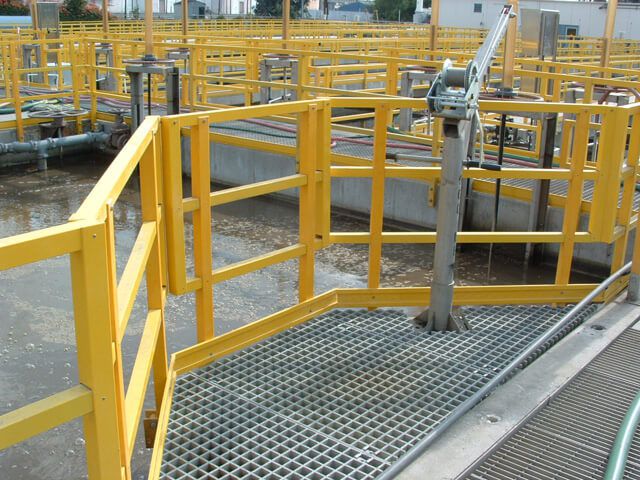

Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅50*50H40常用于对防滑、耐腐蚀与承重有要求的作业平台、走道、地沟盖板、楼梯踏步及设备操作面。其50mm网格与40mm高度适合需要通透排水、通风或减轻自重的场合。具体工况的适配性欢迎联系我们结合现场条件评估。
选型指导
选型时可先明确承载需求、跨距、腐蚀介质与防火要求，再据此确定树脂体系与格栅厚度、网格尺寸。不同树脂类型在耐化学性与阻燃表现上各有侧重，需与使用环境匹配。欢迎联系我们获取详细规格与选型建议。
产品优势
模塑格栅整体成型，纤维与树脂分布均匀，兼具轻质高强、耐腐蚀和双向承载特点，表面防滑且便于切割安装。相比传统金属格栅，它更适合潮湿、酸碱或盐雾环境。关于具体性能表现，欢迎联系我们获取更多资料。
询盘引导
如需确认玻璃钢模塑格栅50*50H40是否适用于您的项目，请提供使用环境、承载要求与尺寸需求，我们将协助匹配方案。欢迎联系我们获取详细规格与报价。
