Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.

Name

Content

Type

Resin

35%

OFR-25、IFR-25、VEFR-25

Fiberglass

33%

E

Filler

31%

ATH、PR

Others

1%

---

Introduction of raw materials

 Resin type

Code

Resin type

Flame retardant property

Standard color

Recommended usage occasions

MP-5

Phenolic type

Oxygen index can reach about 80

Brown

Low toxicity and high flame retardant, fire safety is very important for the occasion

VEFR-25

Vinyl type

Oxygen index 28 or above

Grass green,Yellow, Grey, Orange

Acid, alkali and other corrosive harsh environment

VEFR-10

Vinyl type

Oxygen index 35 or above

Dark grey, Black

Flame retardant requirements of high acid, alkali and good occasions

IFR-25

Meta benzene

Oxygen index 28 or above

Grass green,Yellow, Grey

A VEFR type economy, and excellent, moderate acid alkali and solvent

IFGR-30

Benzene food grade

Oxygen index 26

Yellow

Mainly used in meat products and food processing plants

OFR-25

Ortho type

Oxygen index 28 or above

Grass green,Yellow, Grey

General acid and alkali environment

OCR

Ortho type

Oxygen index below 28

 Green,Yellow, Grey

OFR-25 economy, no flame retardant requirements

The type selection of coarse glass fiber

CodeCoarse sand typeRecommended usage occasions

E

Non alkali sand

For high strength requirements and high corrosion resistance of the occasion

Selected filler type

Code

Filler type

Recommended usage occasions

ATH

Aluminum hydroxide

Retardant, smoke suppression, corrosion-resistant occasions

PR

No filler, pure resin

For high corrosion-resistant applications

Software - Sample 1 for three columns

Groove type
Software - Sample 2 for three columns

Polished type
Software - Sample 3 for three columns

Shop sand type

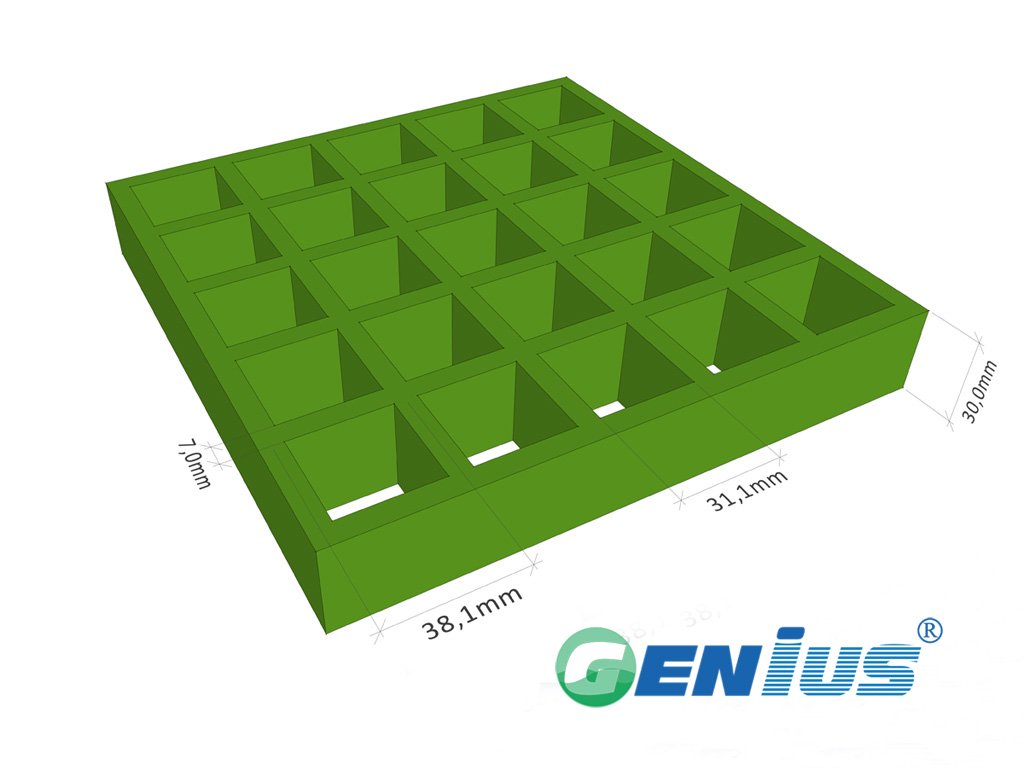

FRP 38*38*30

38*38*30(mm)

Panel size available:

1524*4000,1220*4000,1220*3660,1220*2440,915*3050 Bidirectional force.

Bearing bar thickness (Top/Bottom):6.0/5.0

Bearing bar center:38

Open Aera:68%

Approx Weight:14.6kgs/m²

Liner load

Liner load(units:mm)

Deflection

kg/m

kg/m

kg/m

kg/m

kg/m

kg/m

Limit

Span(mm)

751503004507501500

load

300<0.25<0.250.250.510.761.529923.4
4500.250.511.021.522.543.924827.6
6000.511.272.293.565.847.384112.4
7501.272.544.837.3712.516.03173.7
9002.274.549.0813.618.722.12637.3
Uniform load

Uniform load(units:mm)

Deflection

kg/m²

kg/m²

kg/m²

kg/m²

kg/m²

kg/m²

Span(mm)

350500750100015002500
3000.290.480.570.751.151.82
4500.781.191.812.473.544.95
6001.762.664.285.568.4113.2
7503.485.128.2111.016.42---
9005.898.8114.218.9------
Software image and text block

The characteristics:

  1. Corrosion Resistant

  2. Slip Resistant

  3. Superior Ergonomics

  4. Low Install Cost

  5. Fire Retardant

  6. Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.

  7. The internal and external uniform color and color can be arbitrary choice.

  8. It has good social and economic benefits.

  9. Can design , flexible and varied size, size stability



                                                                      Widely used in:

Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
