玻璃钢模塑格栅38*38H25

玻璃钢模塑格栅38*38H25

¥ 1.00 1.0 CNY

¥ 1.00

加入购物车


30 天退款保证
美国境内免运费
现在购买,2 天内到货

Genius FRP

    Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.

            Introduction of raw materials

            Resin type

            Code

            Resin type

            Flame retardant property

            Recommended usage occasions

            MP-5

            Phenolic type

            Oxygen index can reach about 80

            Low toxicity and high flame retardant, fire safety is very important for the occasion

            VEFR-5

            Vinyl type

            Oxygen index 28 or above

            Acid, alkali and other corrosive harsh environment

            VEFR-10

            Vinyl type

            Oxygen index 35 or above

            Flame retardant requirements of high acid, alkali and good occasions

            IFR-25

            Meta benzene

            Oxygen index 28 or above

            A VEFR type economy, and excellent, moderate acid alkali and solvent

            IFGR-30

            Benzene food grade

            Oxygen index 26

            Mainly used in meat products and food processing plants

            OFR-25

            Ortho type

            Oxygen index 28 or above

            General acid and alkali environment

            OCR

            Ortho type

            Oxygen index below 28

            OFR-25 economy, no flame retardant requirements

            The type selection of coarse glass fiber

            Code

            Coarse sand type

            Recommended usage occasions

            E

            Non alkali sand

            For high strength requirements and high corrosion resistance of the occasion

            Selected filler type

            Code

            Filler type

            Recommended usage occasions

            ATH

            Aluminum hydroxide

            Retardant, smoke suppression, corrosion-resistant occasions

            PR

            No filler, pure resin

            For high corrosion-resistant applications

            Software - Sample 1 for three columns

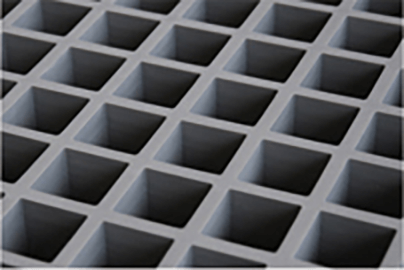

            Groove type
            Software - Sample 2 for three columns

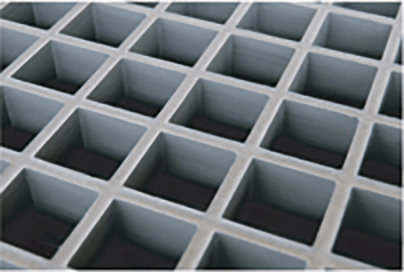

            Polished type
            Software - Sample 3 for three columns

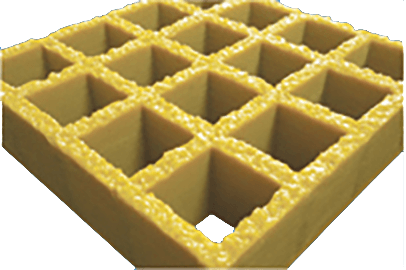

            Shop sand type

            Software image and text block

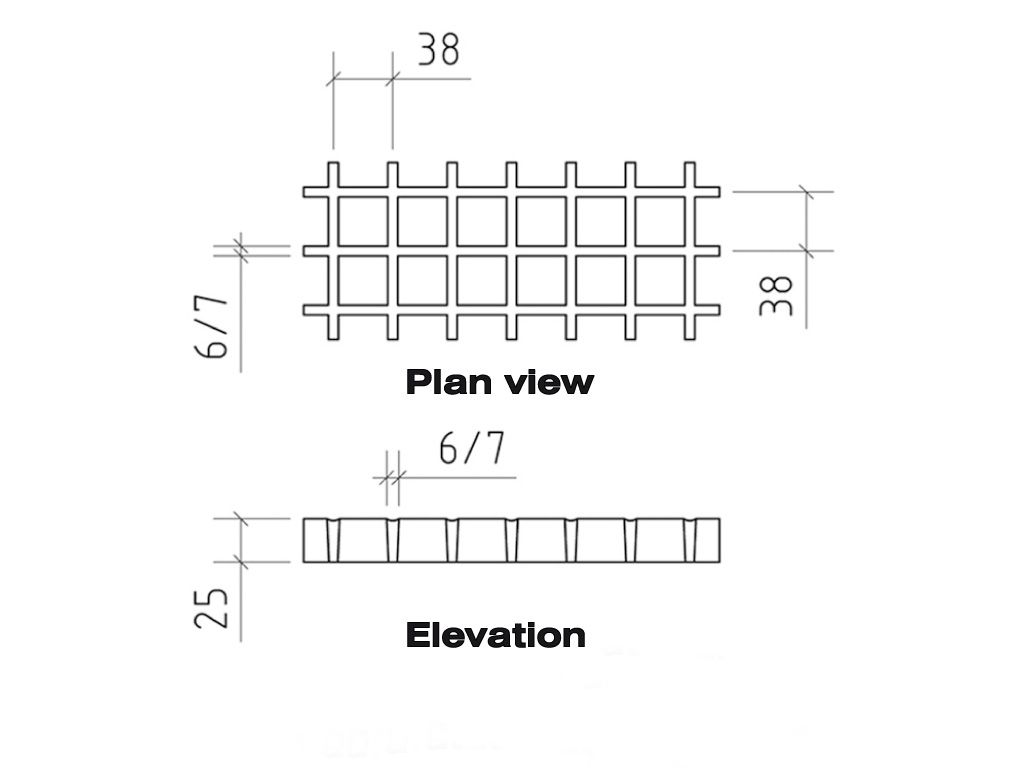

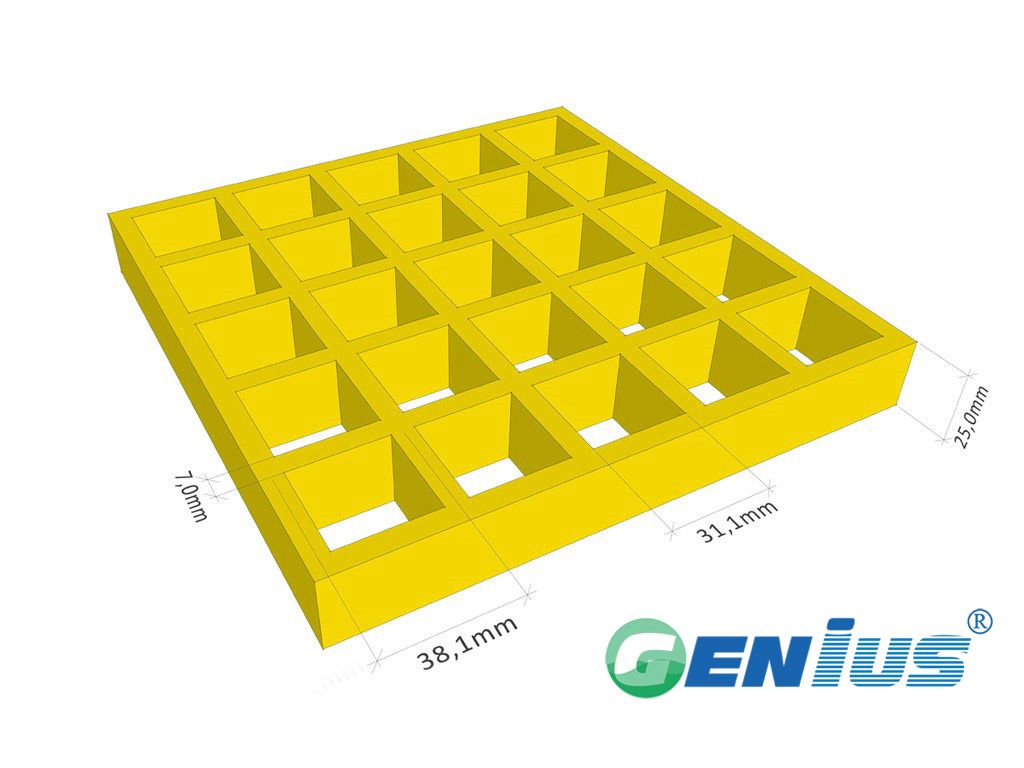

            38*38*25(mm)

            Panel size available:

            1220*4010,1220*3660,1524*4010,

            997*3012,915*3050Bidirectional force.

            Bearing bar thickness (Top/Bottom):6.4/5.0

            Bearing bar center:38

            Opea Area:68%

            Approx Weight:12.3kg/㎡

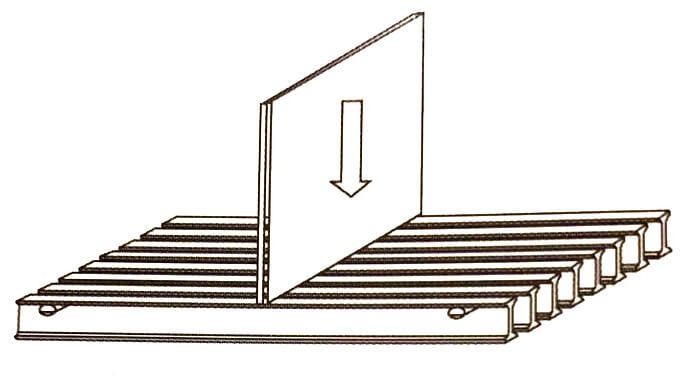

             Liner load

            Liner load(units:mm)

            Deflcvtion




            kg/m




            Limit

            Span
            (mm)
            75150300450600750Load
            450
            0.561.1563.074.114.753910
            6000.861.703.505.161 8.18 2924
            9002.905.9212.118.4   ---   --- 1948
            12005.72111    ---   ---   ---   ---  1461

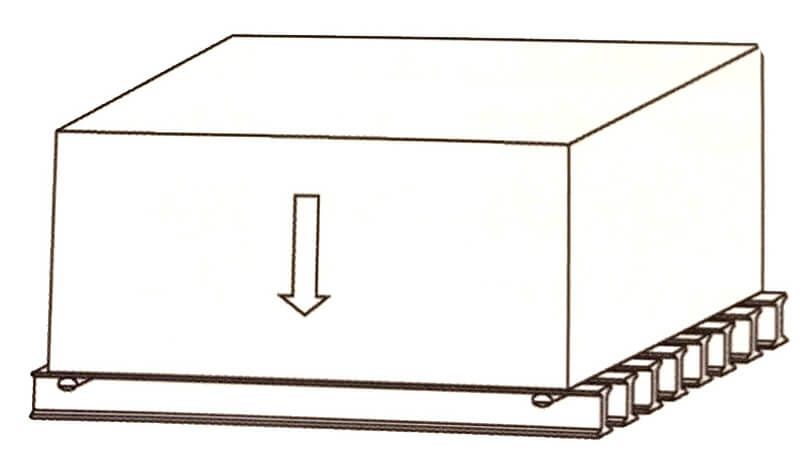

             Uniform load


            Uniform load(units:mm)

            Deflcvtion





            kg/m²



            Limit

            Span
            (mm)
            240480980145024503650Load
            450
            0.661.11.932.774.476.58---
            6001.122.14.146.1710.215.3   ---
            7502.675.3910.816.3   ---   --- ---
            9005.5411.221.7   ---   ---   ---  ---
            38 38 25

            The characteristics:

            1. Corrosion Resistant

            2. Slip Resistant

            3. Superior Ergonomics

            4. Low Install Cost

            5. Fire Retardant

            6. Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.

            7. The internal and external uniform color and color can be arbitrary choice.

            8. It has good social and economic benefits.

            9. Can design , flexible and varied size, size stability



            Widely used in:

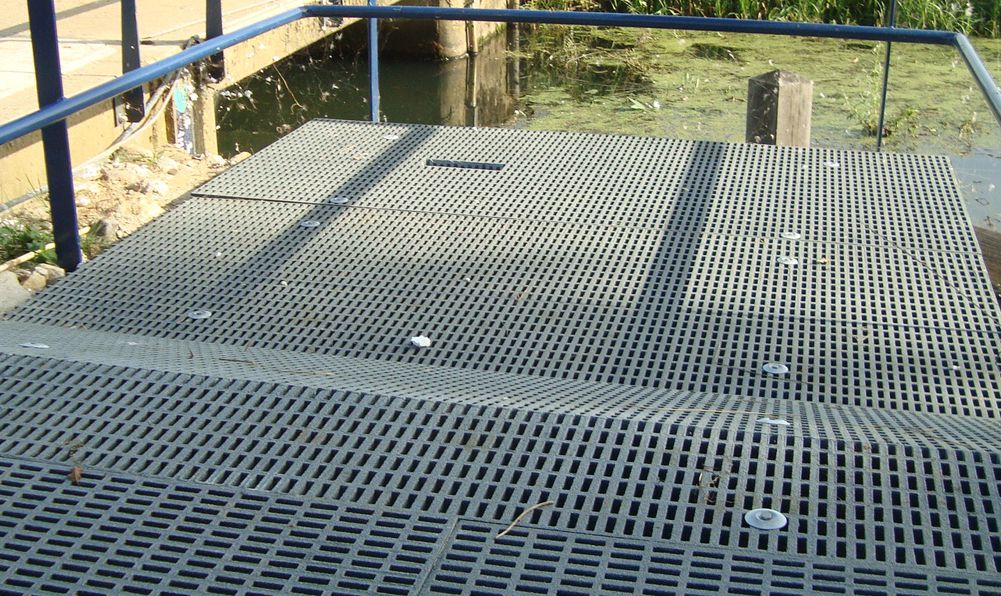

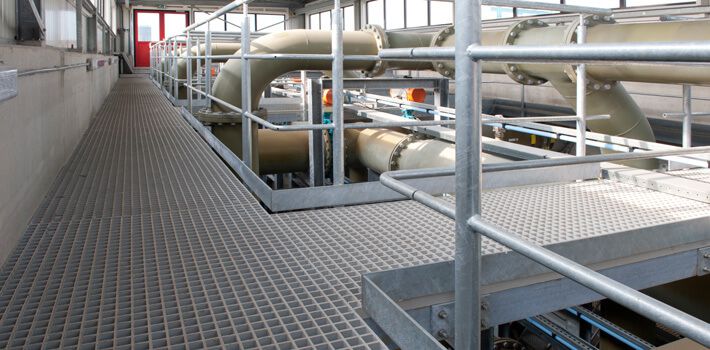

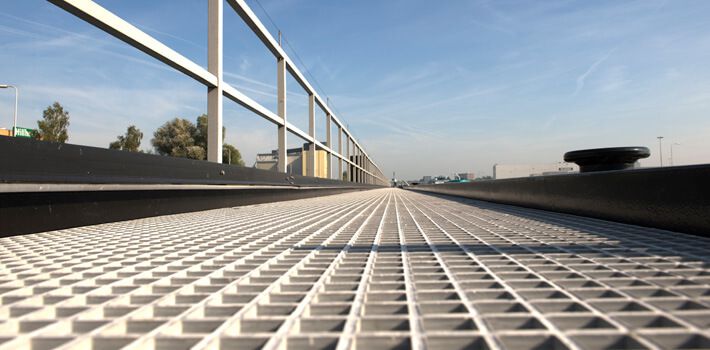

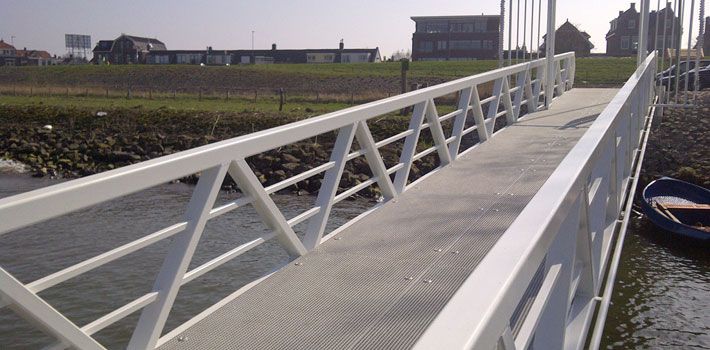

               Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.



            38 38 25
