玻璃钢模塑格栅 38*38H20
欢迎询价。
Genius FRP

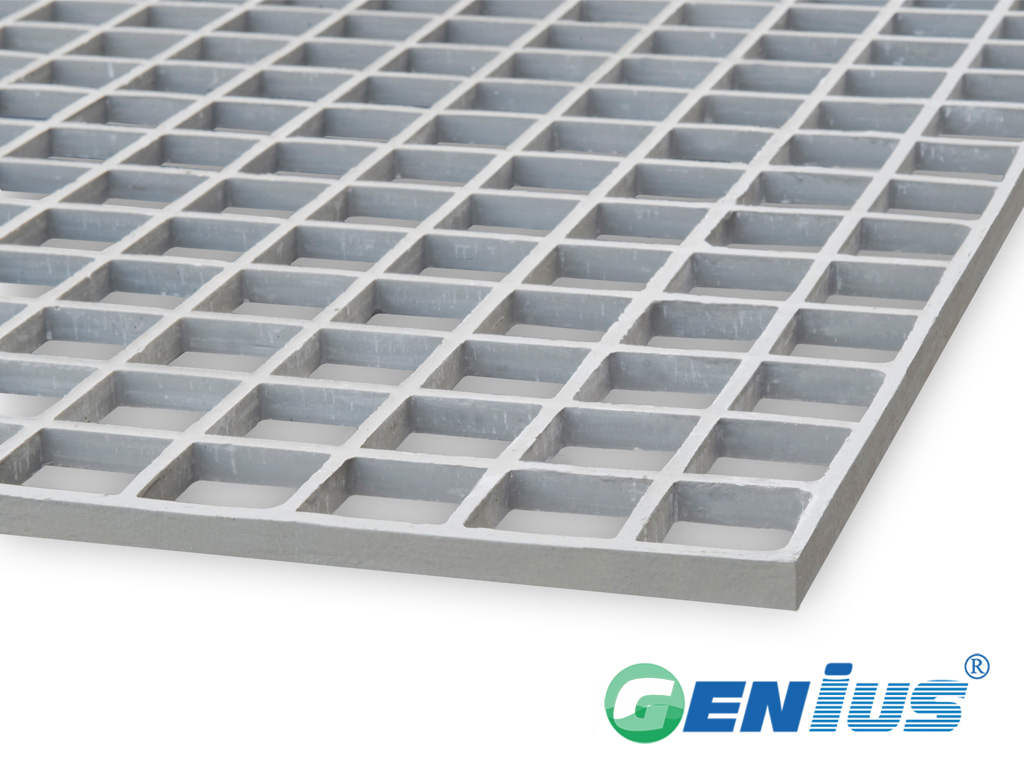

Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Introduction of raw materials
Resin type
Code | Resin type | Flame retardant property |
Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

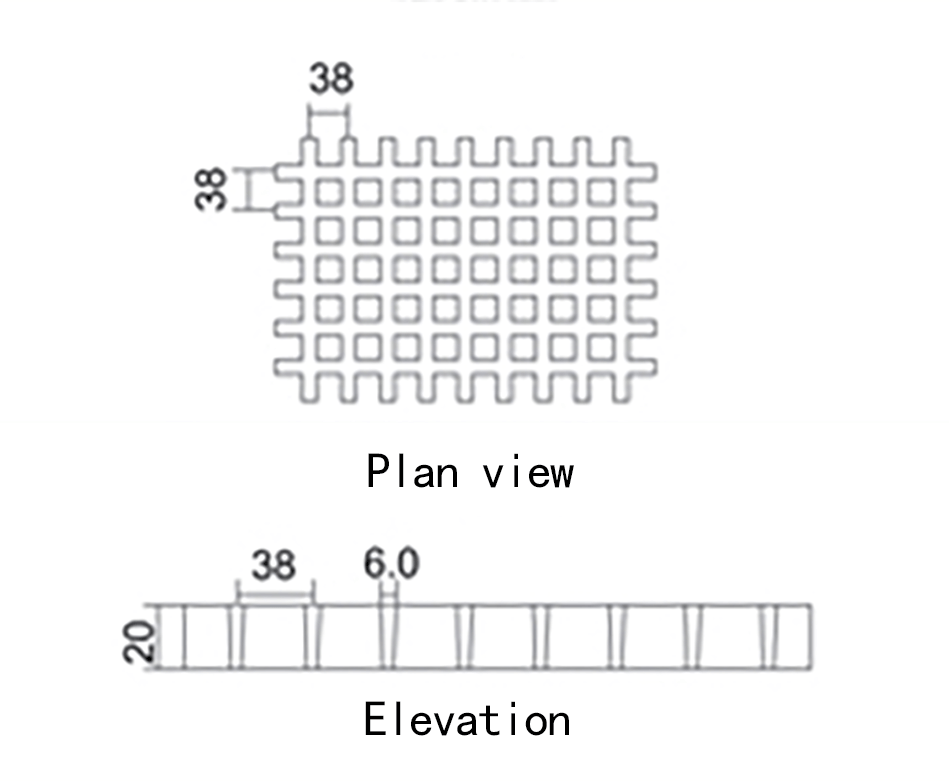

38*38*20(mm)
Panel size available:
1220*4000,1220*3660,1220*2440,
915*3050 Bidirectional force.
Bearing bar thickness (Top/Bottom)：6.0/5.0
Bearing bar center：38
Open Aera：65%
Approx Weight：9.8kgs/m²
Liner load（units:mm）
Deflection | kg/m |
Limit | ||||
Span (mm) | 75 | 150 | 300 | 450 | 750 |
load |
| 300 | 0.25 | 0.51 | 1.02 | 1.52 | 2.54 | 4470 |
| 450 | 0.76 | 1.52 | 3.30 | 4.83 | 8.13 | 2980 |
| 600 | 1.78 | 3.81 | 7.62 | 11.2 | 15.3 | 2235 |
| 750 | 2.79 | 5.59 | 11.4 | 17.7 | 21.1 | 1788 |
| 900 | 5.33 | 10.7 | 15.4 | 21.2 | 26.6 | 1490 |
Uniform load（units：mm）
Deflection |
|
|
kg/m² |
|
|
|
Limit |
Span (mm) | 350 | 500 | 750 | 1000 | 1500 | 2500 |
load |
| 300 | <0.25 | 0.25 | 0.51 | 0.51 | 1.02 | 1.52 | 29280 |
| 450 | 1.02 | 1.52 | 2.29 | 3.05 | 4.57 | 7.62 | 12981 |
| 600 | 3.08 | 4.57 | 7.11 | 9.40 | 12.3 | 14.1 | 7320 |
| 750 | 5.84 | 8.89 | --- | --- | --- | --- | 4085 |
| 900 | 7.16 | --- | --- | --- | --- | --- | 3227 |
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:

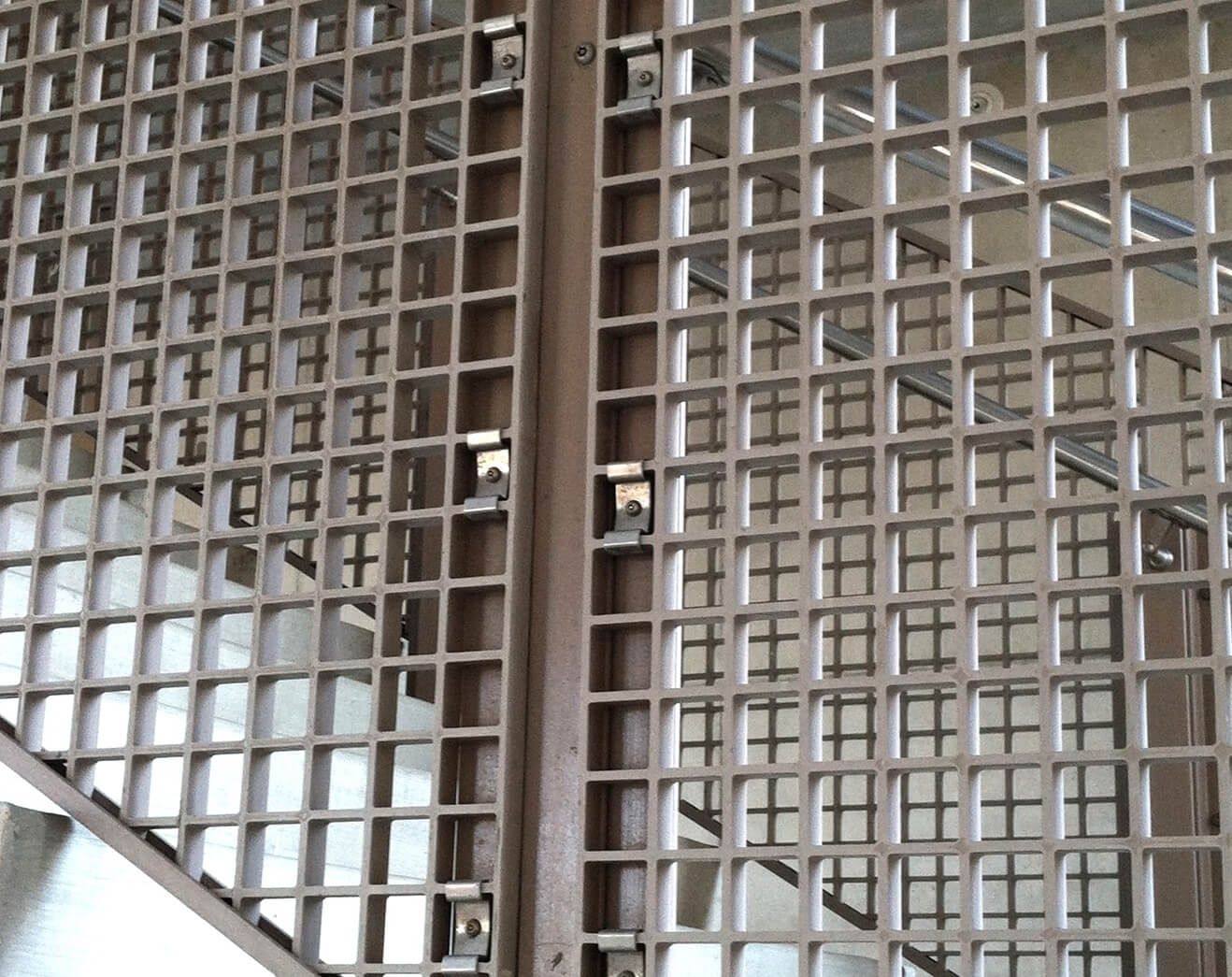

Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅适用于化工、污水处理、海洋工程、电力等对耐腐蚀与防滑要求较高的平台、走道和地沟盖板场景。若您需要针对具体工况评估适配性，欢迎联系我们沟通。
选型指导
选型时可结合承载需求、使用环境的腐蚀性与阻燃要求，对照树脂类型与格栅厚度、网格尺寸进行匹配。我们可根据您的工况提供选型建议，欢迎联系我们获取详细规格与报价。
产品优势
模塑格栅以树脂与玻璃纤维整体成型，具有轻质高强、耐腐蚀、防滑及便于切割安装等特点，并可选择不同树脂体系以适应不同介质环境。具体性能表现以实际规格与检测数据为准，欢迎联系我们了解详情。
询盘引导
如需确认规格、数量、交付及商务条款，欢迎联系我们获取详细规格与报价，我们将根据您的项目需求提供对应方案。
