玻璃钢模塑格栅38*152H38

玻璃钢模塑格栅38*152H38

¥ 1.00 1.0 CNY

¥ 1.00

加入购物车


30 天退款保证
美国境内免运费
现在购买,2 天内到货

Genius FRP

Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.

Name

Content

Type

Resin

35%

OFR-25、IFR-25、VEFR-25

Fiberglass

33%

E

Filler

31%

ATH、PR

Others

1%

---

Introduction of raw materials

 Resin type

Code

Resin type

Flame retardant property

Recommended usage occasions

MP-5

Phenolic type

Oxygen index can reach about 80

Low toxicity and high flame retardant, fire safety is very important for the occasion

VEFR-25

Vinyl type

Oxygen index 28 or above

Acid, alkali and other corrosive harsh environment

VEFR-10

Vinyl type

Oxygen index 35 or above

Flame retardant requirements of high acid, alkali and good occasions

IFR-25

Meta benzene

Oxygen index 28 or above

A VEFR type economy, and excellent, moderate acid alkali and solvent

IFGR-30

Benzene food grade

Oxygen index 26

Mainly used in meat products and food processing plants

OFR-25

Ortho type

Oxygen index 28 or above

General acid and alkali environment

OCR

Ortho type

Oxygen index below 28

OFR-25 economy, no flame retardant requirements

The type selection of coarse glass fiber

Code

Coarse sand type

Recommended usage occasions

E

Non alkali sand

For high strength requirements and high corrosion resistance of the occasio

Selected filler type

Code

Filler type

Recommended usage occasions

ATH

Aluminum hydroxide

Retardant, smoke suppression, corrosion-resistant occasions

PR

No filler, pure resin

For high corrosion-resistant applications

Software - Sample 1 for three columns

Groove type
Software - Sample 2 for three columns

Polished type
Software - Sample 3 for three columns

Shop sand type

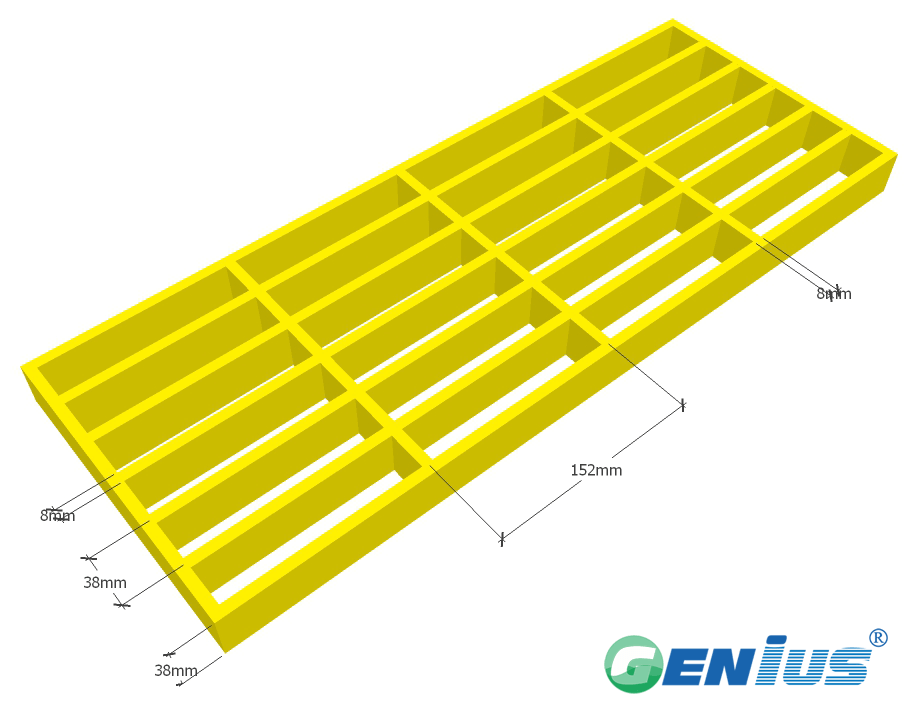

38 152 H38

38*152*38(mm)

Panel size available:

1220*3660,1220*2440,915*3050 Length stress

Bearing bar thickness (Top/Bottom):8.0/6.0

Bearing bar center:38

Open Aera:67%

Approx Weight:15.92kgs/m²

Liner load

Liner load(units:mm)

Deflcvtion

kg/m

kg/m

kg/m

kg/m

kg/m

kg/m

Limit

Span( mm)

75150300450600750

Load

300<0.25<0.250.250.510.510.7612628
450<0.250.250.761.021.521.789946
6000.250.761.522.293.053.818233
7500.761.272.794.065.336.67040
9001.022.294.326.648.6410.96146
10501.523.36.69.91------5439
12002.294.839.65---------5141
Uniform load

Uniform load(units:mm)

Deflcvtion

kg/m²

kg/m²

kg/m²

kg/m²

kg/m²

kg/m²

Limit

Span( mm)

350450750100015002500

Load

300<0.25<0.25<0.250.250.250.5141358
450<0.250.250.510.761.021.7826962
6000.511.021.271.782.794.5721716
7501.032.033.054.066.35---18446
9002.544.066.18.1312.2---13420
10504.577.1110.7---------10180
12007.8711.9------------8418
38 152 H38

The characteristics:

  1. Corrosion Resistant

  2. Slip Resistant

  3. Superior Ergonomics

  4. Low Install Cost

  5. Fire Retardant

  6. Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.

  7. The internal and external uniform color and color can be arbitrary choice.

  8. It has good social and economic benefits.

  9. Can design , flexible and varied size, size stability

Widely used in:

Genius FRPgrating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
