玻璃钢模塑格栅25*50H50重负载型
欢迎询价。
Genius FRP

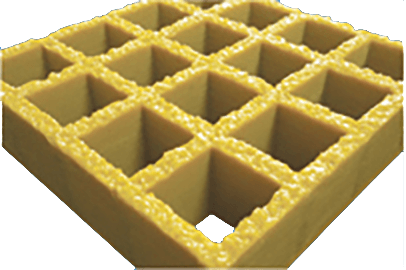

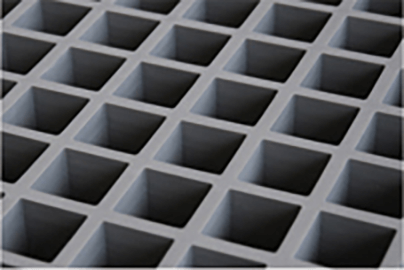

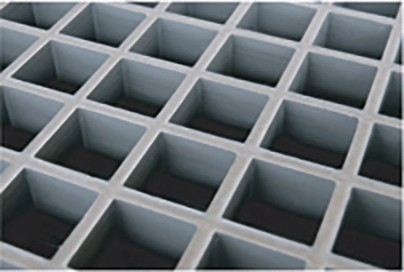

Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

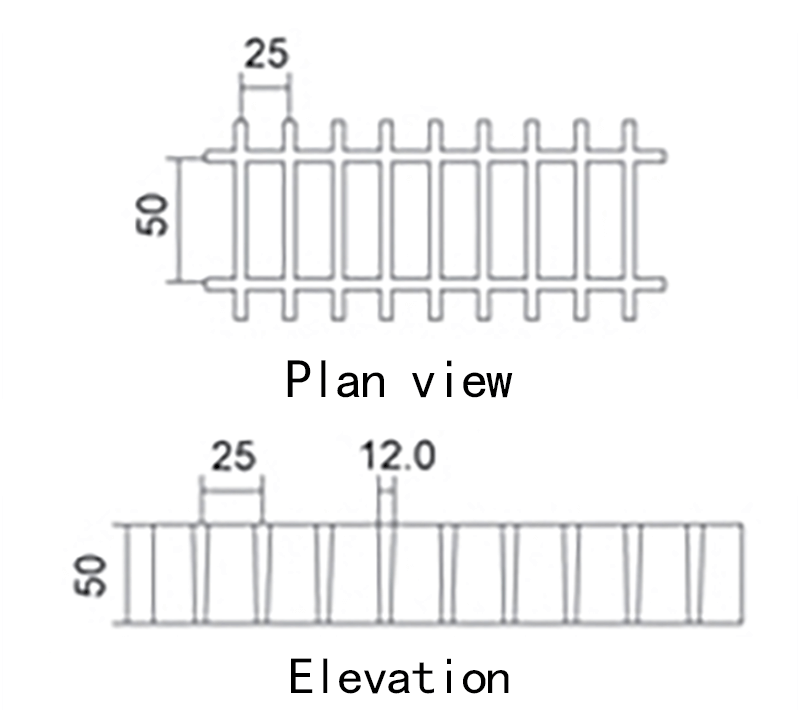

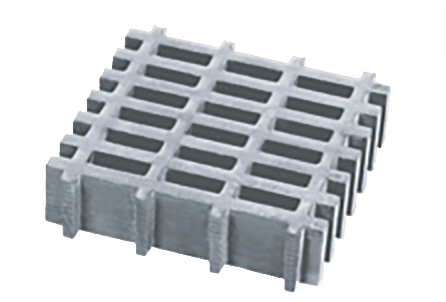

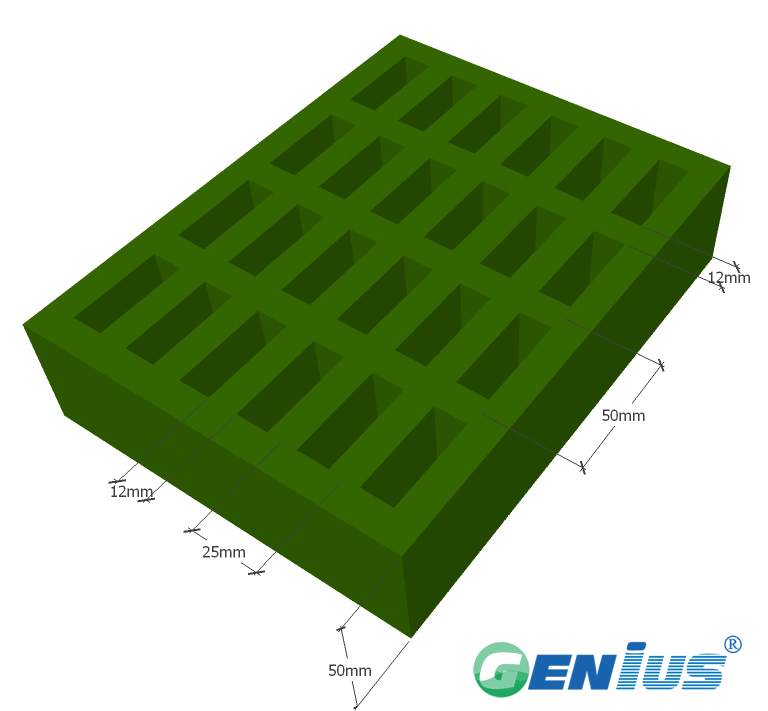

25*50*50(mm)
Panel size available:
1220*3660 Length stress
Bearing bar thickness (Top/Bottom)：12.0/9.0
Bearing bar center：25
Open Aera：48%
Approx Weight：41kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅25*50H50重负载型适用于对承载能力要求较高的工业平台、走道、地沟盖板、楼梯踏步及设备操作面等场合。其25*50mm网格与50mm厚度结构兼顾承载与防滑排水需求，常见于化工、水处理、电力、海洋工程等腐蚀性或潮湿环境。具体工况适配建议欢迎联系我们，由技术团队结合使用环境提供参考。
选型指导
选型时需综合考虑荷载类型、支撑跨距、使用环境介质及安装方式等因素，不同树脂体系与网格规格对应不同耐腐蚀与承载表现。本页所列树脂类型可作为初步参考，实际选型需结合项目工况确认。欢迎联系我们获取详细规格与选型支持，我们将根据您的使用条件提供匹配建议。
产品优势
玻璃钢模塑格栅采用不饱和聚酯树脂与玻璃纤维模压成型，具有轻质高强、耐腐蚀、防滑及绝缘等特性，且便于切割安装与后期维护。重负载型结构在保持网格开孔率的同时提升了整体刚度与承载表现，适合替代部分传统金属格栅。如需了解不同树脂体系对应的性能侧重，欢迎与我们沟通。
询盘引导
如需获取玻璃钢模塑格栅25*50H50重负载型的详细规格、树脂选型建议及商务条款，欢迎联系我们。请提供使用环境、承载要求与尺寸需求等信息，我们将尽快安排专人对接并回复报价与技术资料。
