玻璃钢模塑格栅25*50H38重负载型
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

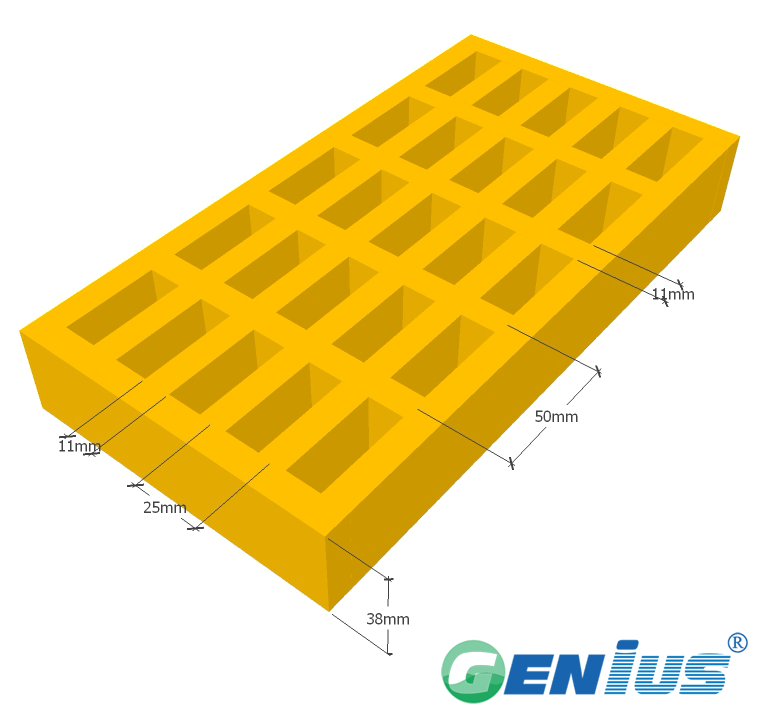

25*50*50(mm)
Panel size available:
1220*3660 Length stress
Bearing bar thickness (Top/Bottom)：11.0/9.0
Bearing bar center：25
Open Aera：48%
Approx Weight：30.3kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅25*50H38重负载型适用于对承载能力和耐腐蚀性有较高要求的工业平台、走道、沟盖板、地坪及设备操作面等场合。其网格结构与38mm厚度设计有助于分散载荷，适合在化工、污水处理、海洋工程等腐蚀性环境中长期使用。具体项目适配性欢迎联系我们沟通确认。
选型指导
选型时需综合考虑承载需求、支撑跨距、安装方式及使用环境。25*50mm网格与38mm厚度属于重负载系列，适合需要较高强度和刚度的场合；若对阻燃、防滑或颜色有特殊要求，可在询盘时说明。我们可根据您的工况推荐合适的树脂体系与表面处理方案，欢迎联系我们获取详细规格与报价。
产品优势
该格栅采用不饱和聚酯树脂与无碱玻璃纤维模压成型，具备轻质高强、耐腐蚀、防滑、绝缘及易切割安装等特点。38mm厚度与较密的25*50mm网格使其在重载条件下仍能保持结构稳定，且维护成本较低。相比传统金属格栅，其耐化学介质性能更为突出，适合长期暴露于潮湿或腐蚀性环境。
询盘引导
如需了解25*50H38重负载型玻璃钢模塑格栅的详细规格、树脂选项（如邻苯、间苯、乙烯基、酚醛等）、颜色及供货信息，欢迎联系我们获取详细规格与报价。请提供使用场景、承载要求及尺寸需求，我们将尽快为您提供选型建议与商务答复。
