玻璃钢模塑格栅25*100H38仿拉挤
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

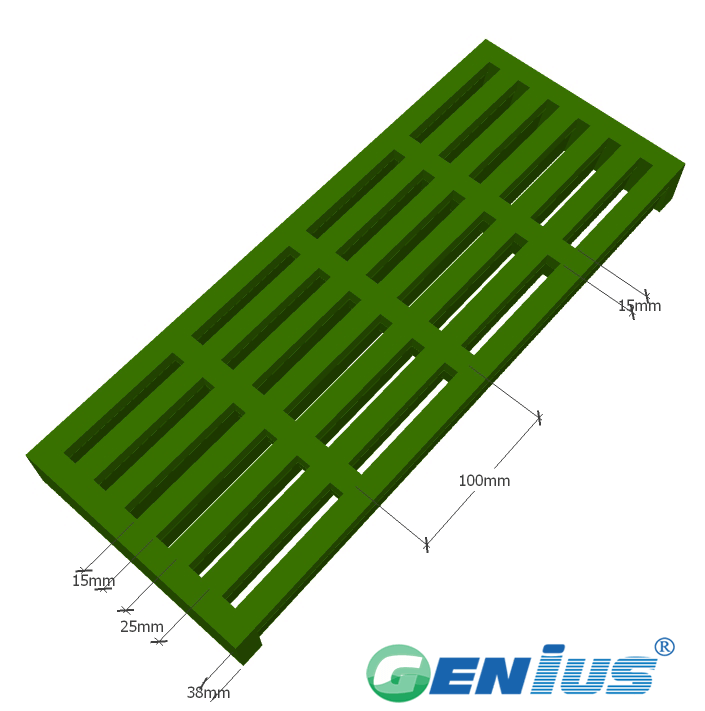

25*100*38(mm)
Panel size available:
1220*3660 Length stress
Bearing bar thickness (Top/Bottom)：15.0/5.0
Bearing bar center：25
Open Aera：62%
Approx Weight：21kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
模塑格栅常用于化工、电镀、污水处理、海洋工程等平台的走道、操作面与地沟盖板，也可用于需要防滑、耐腐蚀、轻质承载的工业与市政场合。若您的工况涉及特殊介质或载荷，欢迎联系我们说明使用环境，我们可协助推荐合适的树脂体系与格栅规格。
选型指导
选型时可从承载需求、网格尺寸、厚度、树脂类型及表面形式（如防滑砂面）等方面综合考虑。本产品型号标注为25*100H38仿拉挤，表征其网格与厚度方向的基本结构，具体承载与耐腐蚀性能可结合树脂体系（如邻苯、间苯、乙烯基、酚醛等）确定。欢迎联系我们获取详细规格与报价，以便按您的工况匹配合适方案。
产品优势
FRP模塑格栅由不饱和聚酯树脂与玻璃纤维整体模压成型，具有轻质高强、耐腐蚀、防滑、绝缘及易切割安装等特点，仿拉挤外观兼顾了格栅的整体性与条状视觉。相较于传统金属格栅，其耐化学介质与免维护优势更为突出，适合长期处于潮湿或腐蚀环境的场合。
询盘引导
如需了解本产品可选的树脂类型、网格尺寸、颜色及表面处理等，欢迎联系我们获取详细规格与报价。请提供使用环境、承载要求及所需数量，我们将据此为您推荐合适的格栅方案并安排后续沟通。
