玻璃钢模塑格栅25*100H38
欢迎询价。
Genius FRP

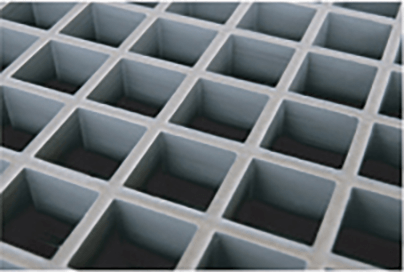

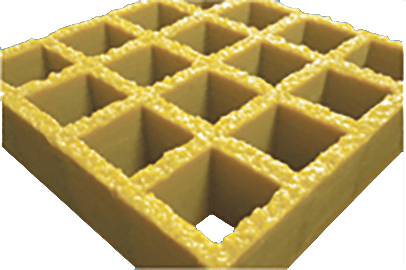

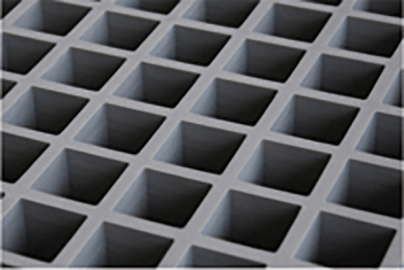

Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

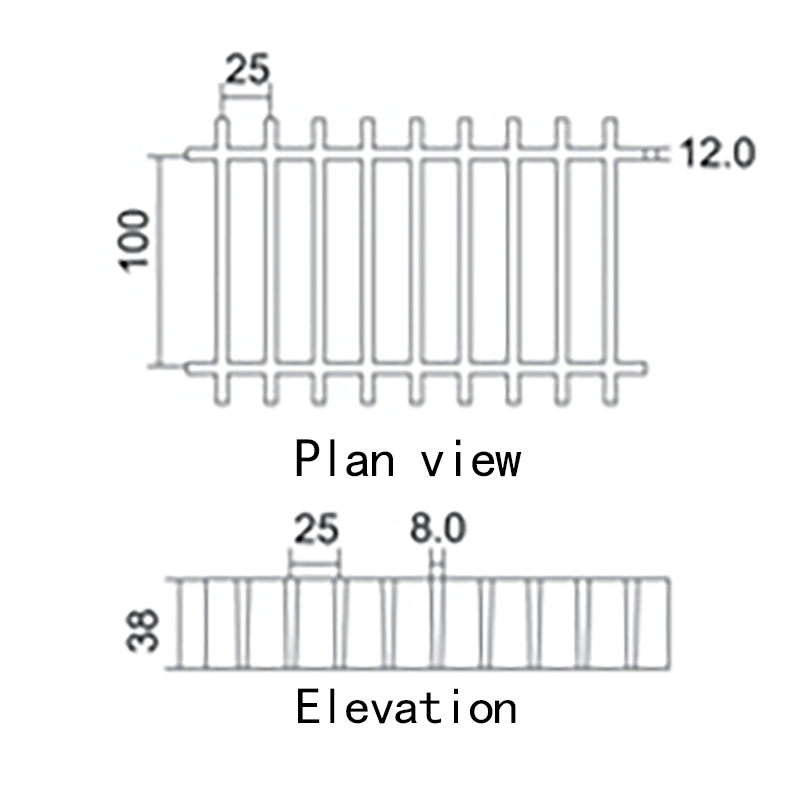

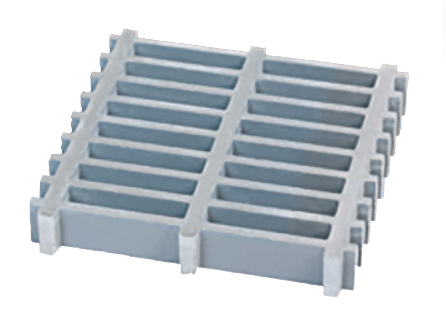

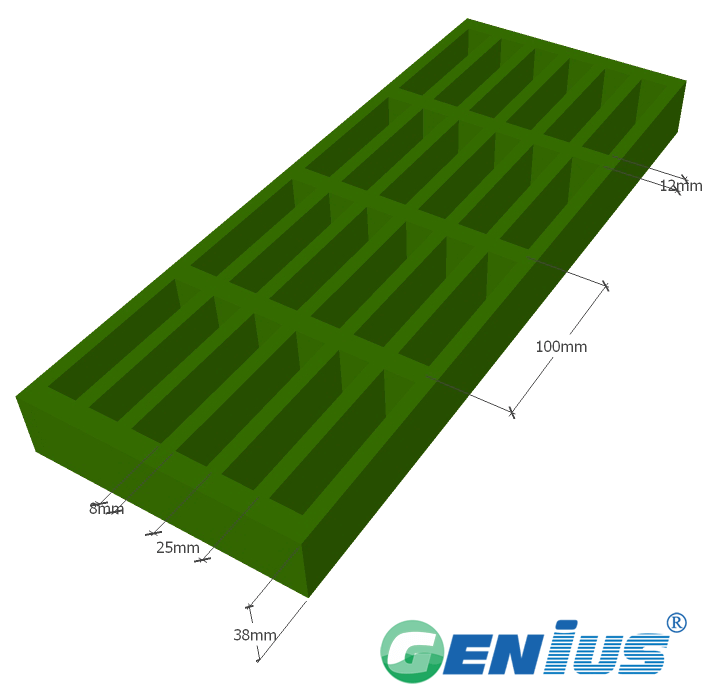

25*100*38(mm)
Panel size available:
1220*3660 Width stress
Bearing bar thickness (Top/Bottom)：8.0/6.0
Bearing bar center：25
Open Aera：62%
Approx Weight：22.5kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅25*100H38适用于对防滑、耐腐蚀和承载有要求的走道、平台、地沟盖板、楼梯踏步及设备操作面等场景，常见于化工、水处理、电力、海洋工程等潮湿或腐蚀性环境。因模塑格栅整体成型、网格结构通透，也适合需要排水、透光或减轻自重的场合。具体环境适配性欢迎联系我们获取详细规格与报价。
选型指导
选型时需结合实际荷载、支撑跨距、使用环境的腐蚀介质与温度，以及是否需要阻燃或绝缘等要求，综合确定树脂类型、格栅厚度与网格尺寸。同一25*100H38规格下，不同树脂配方对耐化学性和阻燃性的表现不同，建议提供工况条件由我们协助推荐合适配置。欢迎联系我们获取详细规格与报价。
产品优势
模塑格栅采用树脂与玻璃纤维整体模压成型，具有轻质高强、耐腐蚀、防滑、绝缘及免维护等特点，相比传统金属格栅在腐蚀环境中使用寿命更长。网格结构便于切割与现场安装，可根据需要选用不同树脂体系以兼顾耐化学性与阻燃性能。具体性能表现欢迎联系我们获取详细规格与报价。
询盘引导
如需确认25*100H38模塑格栅的可用树脂类型、颜色、表面处理及供货方案，欢迎联系我们并提供使用环境与尺寸需求，我们将据此协助选型。批量采购、定制规格及技术资料索取均可直接来函洽谈。欢迎联系我们获取详细规格与报价。
