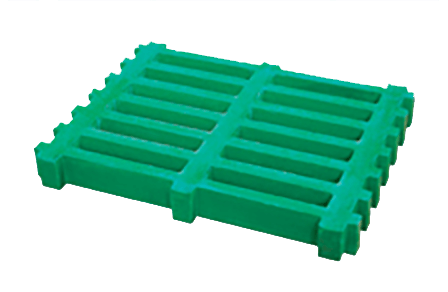

玻璃钢模塑格栅25*100H25重负载型
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

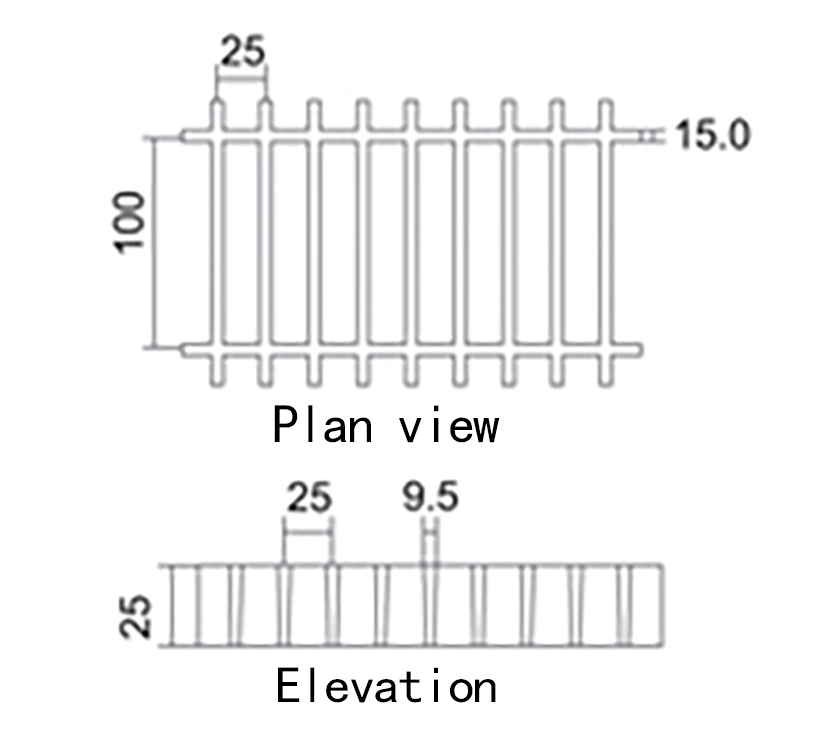

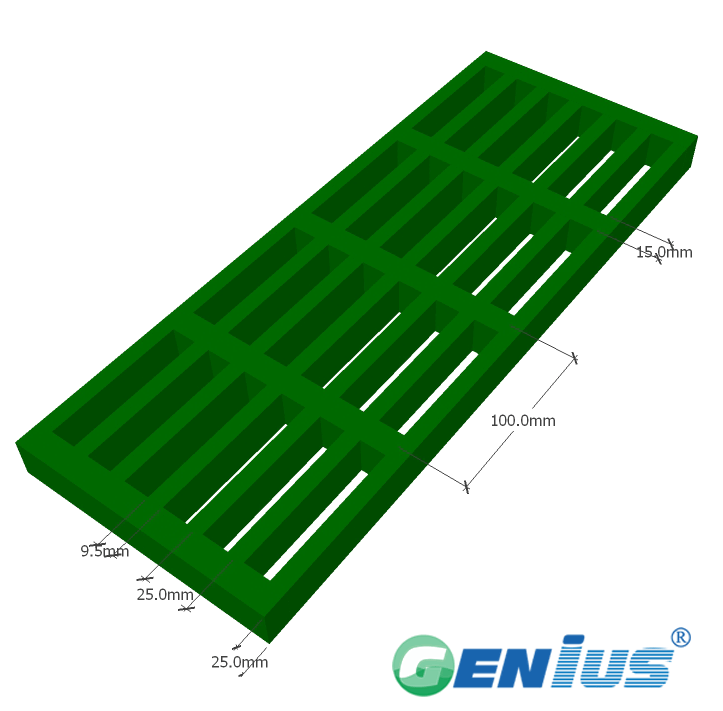

25*100*25(mm)
Panel size available:
1220*3660,1220*2440,915*3050 Width stress
Bearing bar thickness (Top/Bottom)：9.5/8.0
Bearing bar center：25
Open Aera：52%
Approx Weight：19.5kgs/m²
Liner load（units:mm）
Deflcvtion | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
Span( mm) | 75 | 150 | 300 | 450 | 750 | 1500 | Load |
| 300 | <0.25 | 0.25 | 0.76 | 1.02 | 1.27 | 1.52 | 10058 |
| 450 | 0.51 | 0.76 | 1.78 | 2.54 | 3.3 | 4.32 | 7264 |
| 600 | 0.76 | 1.78 | 3.56 | 5.08 | 6.86 | --- | 5774 |
| 750 | 1.52 | 3.05 | 6.1 | 9.14 | 11.9 | --- | 4843 |
| 900 | 2.29 | 4.83 | 9.65 | --- | --- | --- | 4172 |
| 1050 | 3.56 | 7.11 | --- | --- | --- | --- | 3688 |
| 1200 | 5.08 | 10.2 | --- | --- | --- | --- | 3502 |
Uniform load（units：mm）
Deflcvtion | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
Span( mm) | 250 | 350 | 300 | 750 | 1000 | 1500 | Load |
| 300 | <0.25 | <0.25 | <0.25 | 0.25 | 0.51 | 0.51 | 32940 |
| 450 | 0.51 | 0.51 | 0.76 | 1.27 | 1.52 | 2.29 | 18910 |
| 600 | 1.02 | 1.27 | 2.03 | 3.3 | 4.32 | 6.35 | 15860 |
| 750 | 2.29 | 3.05 | 4.57 | 7.11 | 9.4 | --- | 12688 |
| 900 | 4.57 | 5.84 | 8.89 | --- | --- | --- | 9111 |
| 1050 | 7.87 | 10.2 | --- | --- | --- | --- | 6900 |
| 1200 | 12.7 | --- | --- | --- | --- | --- | 5734 |
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRPgrating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅25*100H25重负载型适用于需要高承载与耐腐蚀的工业平台、走道、地沟盖板及设备操作面等场合。其25mm厚度与100mm网格结构在保持通风透光的同时，适合承受较重荷载的工况。具体场景适配性欢迎联系我们获取详细规格与报价。
选型指导
选型时需结合实际荷载、跨度、支撑方式及腐蚀环境，确认树脂类型与格栅厚度是否匹配。本产品为25*100H25重负载型，若您不确定工况要求，欢迎联系我们获取详细规格与报价，由技术人员协助确认合适型号。
产品优势
玻璃钢模塑格栅具有轻质高强、耐腐蚀、防滑及绝缘等特性，模塑成型使网格与承载条一体交织，整体性好。重负载型在保持FRP耐蚀优势的同时提升了承载能力，适用于对结构强度要求较高的区域。欢迎联系我们获取详细规格与报价。
询盘引导
如需了解玻璃钢模塑格栅25*100H25重负载型的树脂类型、颜色、表面处理及供货信息，欢迎联系我们获取详细规格与报价。请提供您的工况条件与数量需求，我们将尽快为您匹配方案。
