玻璃钢模塑格栅19*19H25
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Introduction of raw materials
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

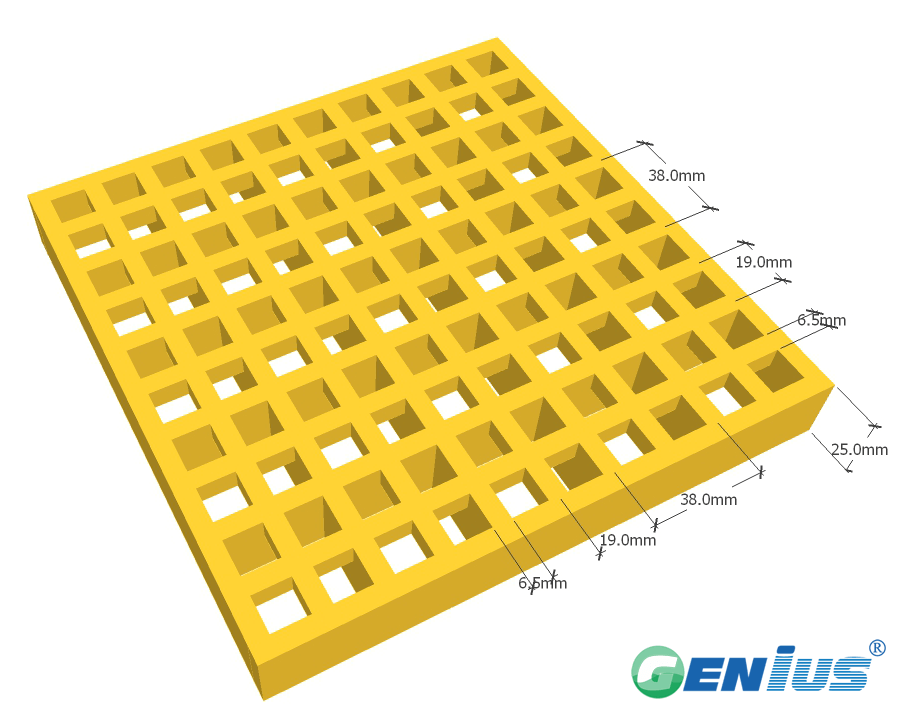

19*19*25(mm)
Panel size available:
1220*4000,1220*3660,1220*2440,
915*3050 Bidirectional force.
Bearing bar thickness (Top/Bottom)：6.5/5.0
Bearing bar center：19
Open Aera：40%
Approx Weight：16.8kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅19*19H25具有优异的耐腐蚀、防滑和承载性能，适用于化工、石油、电力、污水处理、海洋工程等领域的操作平台、走道、排水沟盖板及楼梯踏步。其轻质高强的特性也便于安装和拆卸，适合需要频繁检修的场合。
选型指导
选型时需考虑承载要求、跨距、使用环境的腐蚀性及阻燃等级。不同树脂类型（如邻苯型、间苯型、乙烯基酯型、酚醛型）对应不同的耐腐蚀和阻燃性能，可根据具体工况选择合适的树脂体系。欢迎联系我们获取详细规格与选型建议。
产品优势
玻璃钢模塑格栅采用一次模压成型，结构整体性好，强度高，重量轻，仅为钢格栅的1/4左右。其表面具有防滑凸起，且可根据需求添加石英砂等防滑材料。产品耐多种化学介质腐蚀，使用寿命长，维护成本低，且具有良好的绝缘性和无磁性。
询盘引导
如需了解玻璃钢模塑格栅19*19H25的详细规格、价格及供货信息，欢迎联系我们获取专业咨询与报价。我们可根据您的具体需求提供定制化解决方案。
