结构型材-踢脚板 (间苯)
欢迎询价。
Genius FRP
FRP structural shapes profile is made of glass fiber reinforced material, resin as adhesive, glass fiber cloth as a package reinforcement layer, through the thorough penetration, in the metal mold heating, molding, curing, drawing in the traction machine pulled A new type of composite material, with good physical properties, widely used in high strength, large span Situation.

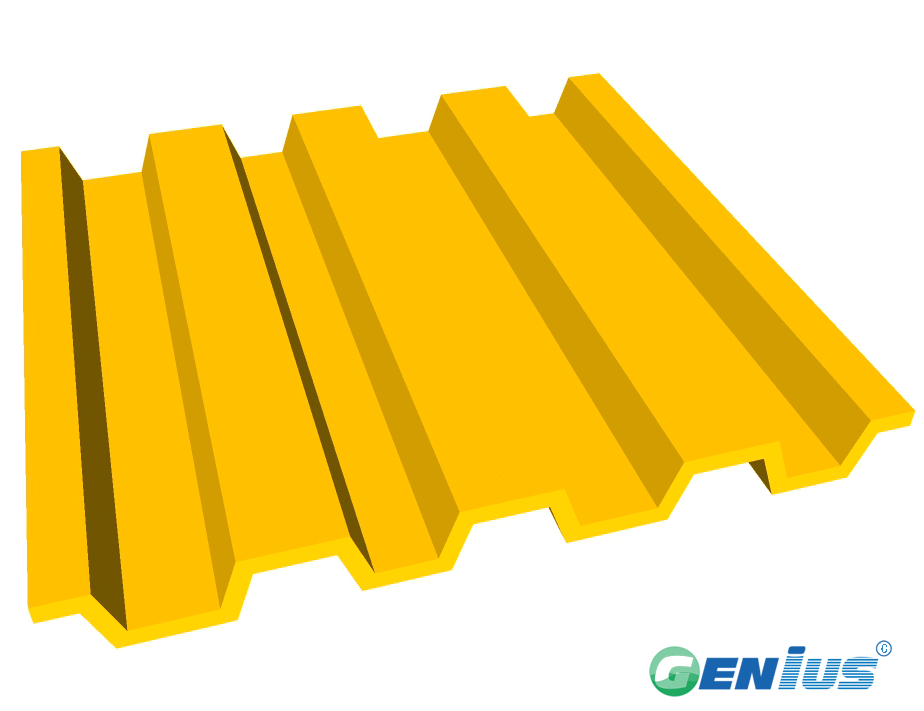

.png?access_token=fe26106f-1237-434c-93f7-f44049242e94 "Skirting board")
Varieties | Size(mm) | Weight(kg/m) | Size(in) | Weight(lbs/in) |
Skirting board | A*B*T | A*B*T | ||
M2 | 100*13*3.2 M-shape | 1.1 | 4" x 1/2" x 1/8" M-shape
| 2.43 |
M3 | 100*16*5 M-shape | 1.3 | 4" x 5/8" x 3/16" M-shape | 2.87 |
M4 | 148*12*3 M-shape | 1.27 | 23/4" x 1/2" x 1/8" M-shape | 2.8 |
W1 | 100*19*5 W-shape | 1.36 | 4" x 3/4" x 3/16" W-shape | 3 |
W2 | 100*15*3.2 W-shape | 1.1 | 4" x 9/16" x 1/8" W-shape | 2.43 |
W3 | 150*15*3.2 W-shape | 1.6 | 6" x 9/16" x 1/8" W-shape | 3.53 |
Markets
Architectural
Bridge & Highway
Chemical
Food & Beverage
Manufacturing
Metals & Mining
Microelectronics
Oil & Gsa
Pharmaceutical
Power
Pulp & Paper
Recreation
Telecommunications
Transportation
Water & Wastewater
The characteristics:
Corrosion Resistant
Low Maintenance
Fire Retardant
Low Install Cost
Heavy Metal Safe
Long Service Life
Electrically & Thermally Non Conductive
High Strength-to-Weight Ratio
Introduction of raw materials——Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
Application:
Genius© pultruded fiberglass structural shapes from Genius Composite Inc. are used in a wide range of applications and provide a unique combination of corrosion resistance, high strength, dimensional stability and light weight, along with thermal and electric non-conductivity. Durable Genius shapes provide years of low maintenance service in areas where steel, aluminum or wood components are traditionally specified. Today ,these shapes are often used in highly corrosive applications where stainless steel and other expensive components were once required.
Genius Shapes
Mechanical Properties | ASTM | Units | Value | Units | Value |
Tensile Stress, LW | D-638 | psi | 30000 | kgf/m² | 21092086 |
Tensile Stress, CW | D-638 | psi | 7000 | kgf/m² | 4921487 |
Tensile Modulus, LW | D-638 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Tensile Modulus, CW | D-638 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Compressive Stress, LW | D-695 | psi | 30000 | kgf/m² | 21092086 |
Compressive Stress, CW | D-695 | psi | 15000 | kgf/m² | 10546043 |
Compressive Modulus, LW | D-695 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Compressive Modulus, CW | D-695 | 10^6psi | 1 | 10^6kgf/m² | 703 |
Flexural Stress, LW | D-790 | psi | 30000 | kgf/m² | 21092086 |
Flexural Stress, CW | D-790 | psi | 10000 | kgf/m² | 7030695 |
Flexural Modulus, LW | D-790 | 10^6psi | 1.8 | 10^6kgf/m² | 1266 |
Flexural Modulus, CW | D-790 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Modulus of Elasticity | Full Section | 10^6psi | 2.8 | 10^6kgf/m² | 1969 |
Shear Modulus | --- | 10^6psi | 0.45 | 10^6kgf/m² | 316 |
Short Beam Shear | D-2344 | psi | 4500 | kgf/m² | 3163813 |
Punch Shear | D-732 | psi | 10000 | kgf/m² | 7030695 |
Notched Izod Impact,LW | D-256 | ft.-lbs./in. | 25 | kg/m | 3.46 |
Notched Izod Impact,CW | D-256 | ft.-lbs./in. | 4 | kg/m | 0.55 |
Excludes Round Rod and Square Bar
Physical Properties | ASTM | Units | Value |
Barcoal | D-495 | --- | 45 |
24 Hour Water Absorption | D-570 | %max | 0.45 |
Density | D-792 | lbs./in.³ | 0.062-0.07 |
Coefficient of Thermal Expansion,LW | D-696 | 10^-6in./in./℃ | 8 |
Flammability Properties | ASTM | Units | Value |
Tunnel test* | E-84 | Flame Spread | 25 max |
Flammability* | D-635 | --- | Non-Burning |
Electrical Properties | ASTM | Units | Value |
Arc Resistance,LW | D-495 | seconds | 120 |
Dielectric Strength,LW | D-149 | kv./in. | 35 |
Dielectric Strength,PF | D-149 | volts/mil | 200 |
Dielectric Constant,PF | D-150 | @60hz | 5 |
LW=Lengthwise, CW=Crosswise,PF=Perpendicular to Laminate Face
*Pertains to ISOFR and VEFR only
应用场景
该间苯结构型材踢脚板适用于对耐腐蚀与承载有要求的平台、走道、罐区及地沟边缘防护，起到防护、封边与装饰作用。常见于化工、污水处理、电镀、海洋工程等环境下的FRP格栅或型材配套。具体环境适配性欢迎联系我们获取详细规格与报价。
选型指导
选型时可根据安装部位的跨度、荷载与固定方式，结合A*B*T截面尺寸及M2、M3、M4等型号确定。间苯树脂体系适合腐蚀性较强的工况，如需与其他FRP型材或格栅配套使用，建议提供图纸或现场尺寸。详细规格与报价欢迎联系我们。
产品优势
以玻璃纤维增强材料与间苯树脂为基体，经加热、模压、固化与牵引拉挤成型，具备良好的力学性能、耐腐蚀性与尺寸稳定性，适合高强度、大跨度场景。表面可根据需求选择不同处理方式，便于安装与维护。欢迎联系我们获取详细规格与报价。
询盘引导
如需确认该间苯踢脚板的尺寸、颜色、长度及配套方案，欢迎将应用场景与需求数量告知我们，我们将提供详细规格与报价。也可联系我们获取样品与技术支持。
