结构型材-角钢(邻苯)
/ 结构型材-角钢(邻苯)
结构型材-角钢(邻苯)

结构型材-角钢(邻苯)

¥ 1.00 1.0 CNY

¥ 1.00

加入购物车

欢迎询价。

Genius FRP

  FRP structural shapes profile is made of glass fiber reinforced material, resin as adhesive, glass fiber cloth as a package reinforcement layer, through the thorough penetration, in the metal mold heating, molding, curing, drawing in the traction machine pulled A new type of composite material, with good physical properties, widely used in high strength, large span Situation.

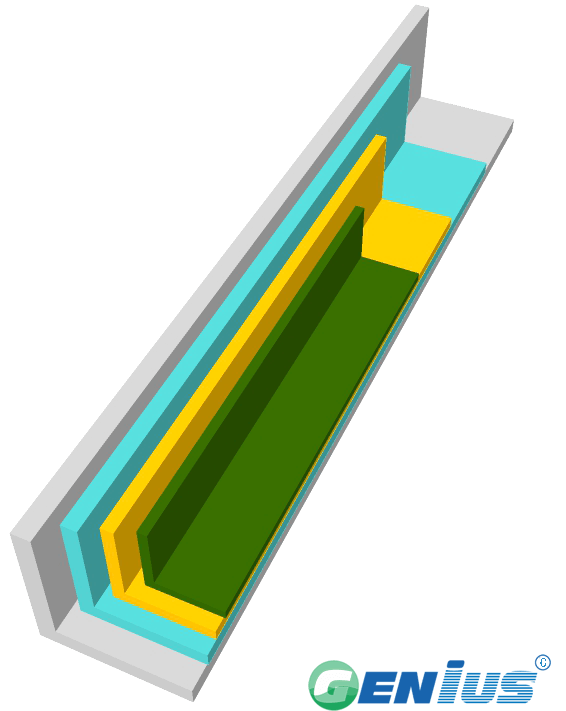

Angle steel

Varieties

Size(mm)

Weight(kg/m)

Size(in)

Weight(lbs/in)

Angle steel

A*B*T1*T2
A*B*T1*T2
EL25A25*25*3.2*3.20.331" x 1" x 1/8" x 1/8"0.73
EL25B25*25*6.4*6.40.561" x 1" x 1/4" x 1/4"1.23
EL30A30*30*4(75°)0.46

5/4" x 5/4" x 3/16" (75°)

1.01
EL30B30*30*5*50.57

5/4" x 5/4" x 3/16" x 3/16"

1.26
EL3232*32*4*40.42

5/4" x 5/4" x 3/16" x 3/16"

0.93
EL38A38*38*5*50.68

3/2" x 3/2" x 3/16" x 3/16"

1.5
EL38B38*38*6.4*6.40.85

3/2" x 3/2" x 1/4" x 1/4"

1.87
EL4545*45*4.8*4.80.75

7/4" x 7/4" x 3/16" x 3/16"

1.65
EL50A50*50*3.2*3.20.62

2" x 2" x 1/8" x 1/8"

1.37
EL50B50*50*6.4*6.41.14

2" x 2" x 1/4" x 1/4"

2.51
EL6060*60*9*91.9

19/8" x 19/8" x 3/8" x 3/8"

4.19
EL76A76*76*4.8*4.81.38

3" x 3" x 3/16" x 3/16"

3.04
EL76B76*76*6.4*6.41.77

3" x 3" x 1/4" x 1/4"

3.9
EL76C76*76*9.5*9.52.57

3" x 3" x 3/8" x 3/8"

5.67
EL76D76*76*12.7*12.73.4

3" x 3" x 1/2" x 1/2"

7.5
EL101A101*101*6.4*6.42.5

4" x 4" x 1/4" x 1/4"

5.51
EL101B101*101*8*82.95

4" x 4" x 5/16" x 5/16"

6.5
EL101C101*101*9.5*9.53.48

4" x 4" x 3/8" x 3/8"

7.67
EL101D101*101*12.7*12.74.57

4" x 4" x 1/2" x 1/2"

10.1
EL152A152*152*6.4*6.43.62

6" x 6" x 1/4" x 1/4"

7.98
EL152B152*152*9.5*9.55.42

6" x 6" x 3/8" x 3/8"

12
EL152C152*152*12.7*12.77.01

6" x 6" x 1/2" x 1/2"

15.5
L4040*22*4.0*4.00.45

25/16" x 7/8" x 3/16" x 3/16"

0.99
L7676*15*6*60.98

3" x 9/16" x 1/4" x 1/4"

2.16
L100100*50*6.4*6.41.8

4" x 2" x 1/4" x 1/4"

3.97
L145145*76*10*103.85

23/4" x 3" x 3/8" x 3/8"

8.49
L170170*76*9.5*9.54.4

27/4" x 3" x 3/8" x 3/8"

9.7
L180180*80*8.0*8.03.89

7" x 25/8" x 5/16" x 5/16"

8.58
L254254*40*6.4*6.43.61

10" x 25/16" x 1/4" x 1/4"

7.96
L70(Special)70*70*24*6.03.75

11/4" x 11/4" x 15/16" x 1/4"

8.27

Markets

Markets

  • Architectural

  • Bridge & Highway

  • Chemical

  • Food & Beverage

  • Manufacturing

  • Metals & Mining

  • Microelectronics

  • Oil & Gsa

  • Pharmaceutical

  • Power

  • Pulp & Paper

  • Recreation

  • Telecommunications

  • Transportation

  • Water & Wastewater

The characteristics:

  • Corrosion Resistant

  • Low Maintenance

  • Fire Retardant

  • Low Install Cost

  • Heavy Metal Safe

  • Long Service Life

  • Electrically & Thermally Non Conductive

  • High Strength-to-Weight Ratio

Introduction of raw materials——Resin type

Code

Resin type

Flame retardant property

Recommended usage occasions

VEFR-25

Vinyl type

Oxygen index 28 or above

Acid, alkali and other corrosive harsh environment

IFR-25

Meta benzene

Oxygen index 28 or above

A VEFR type economy, and excellent, moderate acid alkali and solvent

OFR-25

Ortho type

Oxygen index 28 or above

General acid and alkali environment

Application:

  Genius© pultruded fiberglass structural shapes from Genius Composite Inc. are used in a wide range of applications and provide a unique combination of corrosion resistance, high strength, dimensional stability and light weight, along with thermal and electric non-conductivity. Durable Genius shapes provide years of low maintenance service in areas where steel, aluminum or wood components are traditionally specified. Today ,these shapes are often used in highly corrosive applications where stainless steel and other expensive components were once required.

Genius Shapes

Mechanical Properties

ASTM

Units

Value

Units

Value

Tensile Stress, LW

D-638

psi

30000

kgf/m²

21092086

Tensile Stress, CW

D-638

psi

7000

kgf/m²

4921487

Tensile Modulus, LW

D-638

10^6psi

2.5

10^6kgf/m²

1758

Tensile Modulus, CW

D-638

10^6psi

0.8

10^6kgf/m²

562

Compressive Stress, LW

D-695

psi

30000

kgf/m²

21092086

Compressive Stress, CW

D-695

psi

15000

kgf/m²

10546043

Compressive Modulus, LW

D-695

10^6psi

2.5

10^6kgf/m²

1758

Compressive Modulus, CW

D-695

10^6psi

1

10^6kgf/m²

703

Flexural Stress, LW

D-790

psi

30000

kgf/m²

21092086

Flexural Stress, CW

D-790

psi

10000

kgf/m²

7030695

Flexural Modulus, LW

D-790

10^6psi

1.8

10^6kgf/m²

1266

Flexural Modulus, CW

D-790

10^6psi

0.8

10^6kgf/m²

562

Modulus of Elasticity

Full Section

10^6psi

2.8

10^6kgf/m²

1969

Shear Modulus

---

10^6psi

0.45

10^6kgf/m²

316

Short Beam Shear

D-2344

psi

4500

kgf/m²

3163813

Punch Shear

D-732

psi

10000

kgf/m²

7030695

Notched Izod Impact,LW

D-256

ft.-lbs./in.

25

kg/m

3.46

Notched Izod Impact,CW

D-256

ft.-lbs./in.

4

kg/m

0.55

  Excludes Round Rod and Square Bar

Physical Properties

ASTM

Units

Value

Barcoal

D-495

---

45

24 Hour Water Absorption

D-570

%max

0.45

Density

D-792

lbs./in.³

0.062-0.07

Coefficient of Thermal Expansion,LW

D-696

10^-6in./in./℃

8

Flammability Properties

ASTM

Units

Value

Tunnel test*

E-84

Flame Spread

25 max

Flammability*

D-635

---

Non-Burning

Electrical Properties

ASTM

Units

Value

Arc Resistance,LW

D-495

seconds

120

Dielectric Strength,LW

D-149

kv./in.

35

Dielectric Strength,PF

D-149

volts/mil

200

Dielectric Constant,PF

D-150

@60hz

5

LW=Lengthwise, CW=Crosswise,PF=Perpendicular to Laminate Face

*Pertains to ISOFR and VEFR only

应用场景

FRP角钢常用于化工、污水处理、海洋工程、电力及一般腐蚀性环境中的平台支撑、护栏框架、电缆桥架支架与结构加固部位。其邻苯型树脂体系适用于多数常规工业腐蚀工况；若涉及强酸、强碱或高温等特殊介质，欢迎联系我们说明使用环境，以便推荐更匹配的树脂体系。

选型指导

选型时请先确认等边或不等边、边宽与厚度，再结合跨度、荷载方向及连接方式确定截面规格；表中A*B*T1*T2分别代表两边边长与对应厚度。由于FRP为各向异性材料，建议由我方协助核对受力与挠度要求后确定最终型号，欢迎联系我们提供工况参数获取选型建议。

产品优势

拉挤FRP角钢以玻璃纤维为增强材料、树脂为基体，经加热固化连续拉挤成型，具有轻质高强、耐腐蚀、不生锈、非磁性及绝缘等特性，便于现场切割与钻孔安装。相比传统钢材，其在腐蚀环境中可减少维护与更换频次，适合对重量和耐久性均有要求的场合。

询盘引导

如需了解结构型材-角钢(邻苯)的具体规格、尺寸公差、表面处理、包装方式及供货周期，欢迎联系我们获取详细规格与报价。请一并告知所需型号、数量、使用环境及交货地，我们将据此提供针对性方案与商务条款。
