拉挤格栅 HL-6020
欢迎询价。
Genius FRP

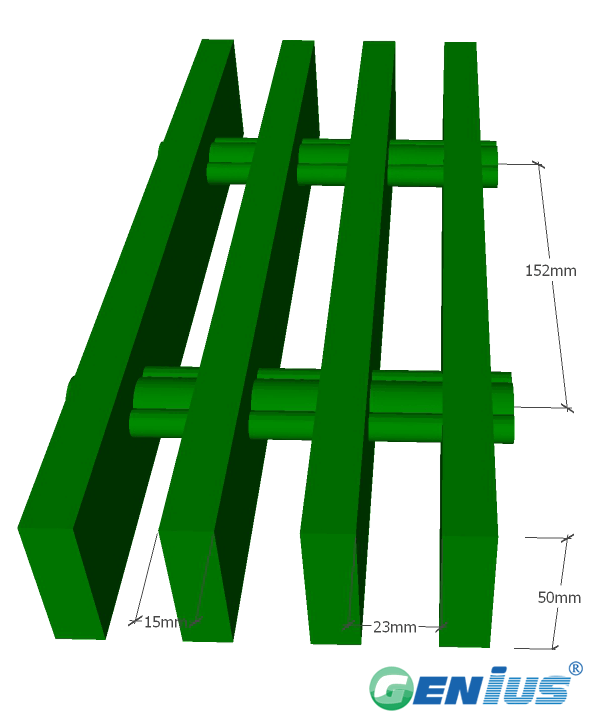

Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length
Bearing Bar: 50mm
Open Area: 60%
Approx Weight (With three-core shoots): 43.5kg/m²
Liner load（units:mm）
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m |
(mm) | 150 | 300 | 450 | 750 | 1500 | 3000 | 4500 | 6000 | 7500 |
| 600 | 0.05 | 0.1 | 0.13 | 0.23 | 0.46 | 0.89 | 1.35 | 1.78 | 2.24 |
| 750 | 0.08 | 0.15 | 0.25 | 0.4 | 0.81 | 1.63 | 2.44 | 3.28 | 4.09 |
| 900 | 0.13 | 0.28 | 0.41 | 0.69 | 1.37 | 2.74 | 4.09 | 5.46 | 6.83 |
| 1200 | 0.33 | 0.64 | 0.97 | 1.6 | 3.2 | 6.4 | 9.6 | 12.8 | 16 |
Uniform load（units：mm）
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² |
(mm) | 450 | 950 | 1450 | 2450 | 4850 | 9800 | 14500 | 19500 | 24400 |
| 600 | 0.05 | 0.1 | 0.18 | 0.28 | 0.56 | 1.12 | 1.68 | 2.24 | 2.77 |
| 750 | 0.13 | 0.25 | 0.38 | 0.64 | 1.27 | 2.55 | 3.84 | 5.11 | 6.38 |
| 900 | 0.25 | 0.51 | 0.76 | 1.27 | 2.57 | 5.13 | 7.67 | 10.2 | 12.8 |
| 1200 | 0.81 | 1.6 | 2.41 | 4.01 | 8 | 16 | --- | --- | --- |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories
应用场景
拉挤格栅以拉挤“I”“T”型材作承重条、实心管或棒作连杆装配而成，适合对承重、耐腐蚀和阻燃有要求的平台、走道、沟盖及设备操作面。不同树脂体系对应不同使用场合，具体选型请结合实际工况联系我们确认。
选型指导
选型主要看介质腐蚀性、承载需求与防火要求：酚醛型氧指数高，适用于对低毒高阻燃和消防安全要求高的场合；乙烯基型耐腐蚀表现较好，适合常见酸碱环境。欢迎联系我们获取详细规格与报价，由我们协助匹配树脂类型与格栅结构。
产品优势
采用拉挤型材装配成型，板材轻质高强、耐腐蚀且便于现场切割安装，可减少后期维护。型材与连杆的间隙式结构兼顾承载与排水通风，适用于多种工业环境。
询盘引导
如需了解拉挤格栅 HL-6020 的尺寸、树脂类型、承载及交期等具体信息，欢迎联系我们，我们将根据您的工况提供详细规格与报价。
