玻璃钢模塑格栅38*38H50重负载型
欢迎询价。
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Introduction of raw materials
Resin type
Code | Resin type | Flame retardant property |
Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

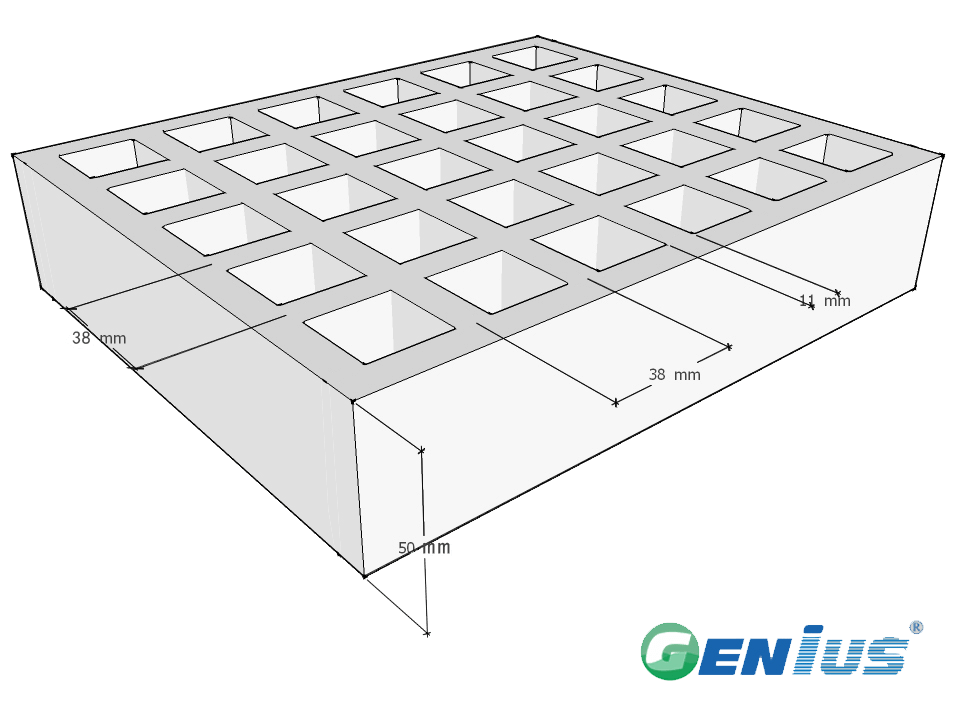

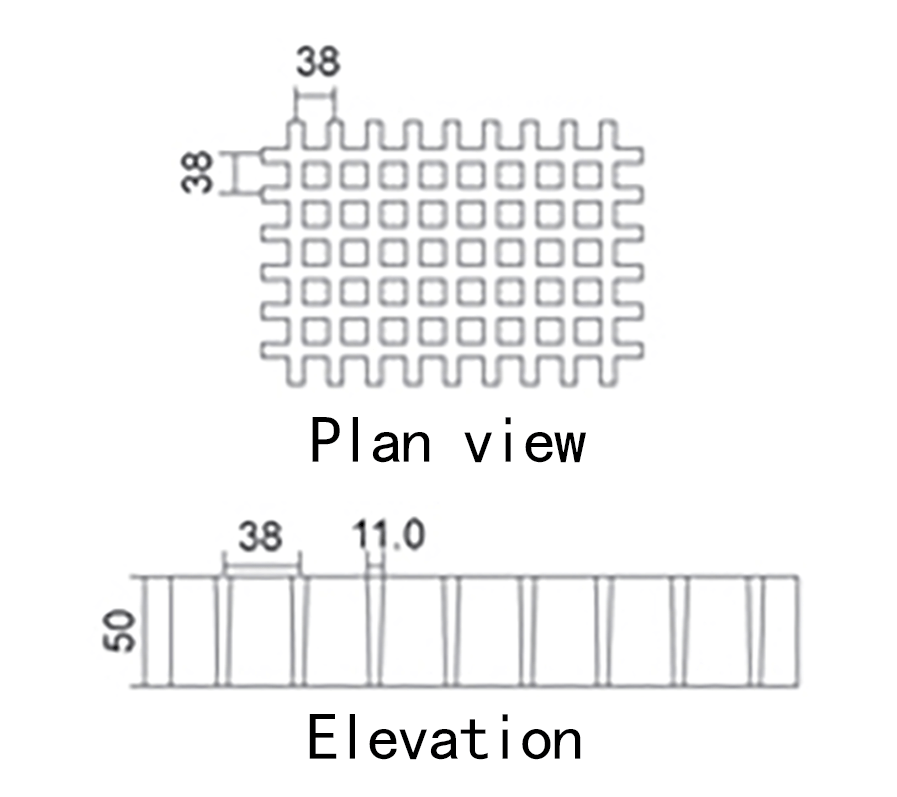

38*38*50(mm)
Panel size available:
1220*4000,1220*3660,1220*2440,
915*3050 Bidirectional force.
Bearing bar thickness (Top/Bottom)：11/9.0
Bearing bar center：38
Open Aera：56%
Approx Weight：42kgs/m²
Liner load（units:mm）
Span in (mm) |
Load in kn/m of widht (concentrated) | Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
| 400 | 9.3 | 19 | 7.14 |
Uniform load（units：mm）
Span in (mm) |
Load in kn/sqm (uniformed) | Maximum Recommended | Apparent E1*10^6 N-mm^2/m |
| 400 | 2.3 | 100 | 7.14 |
| 600 | 9.9 | 45 | 8.55 |
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:

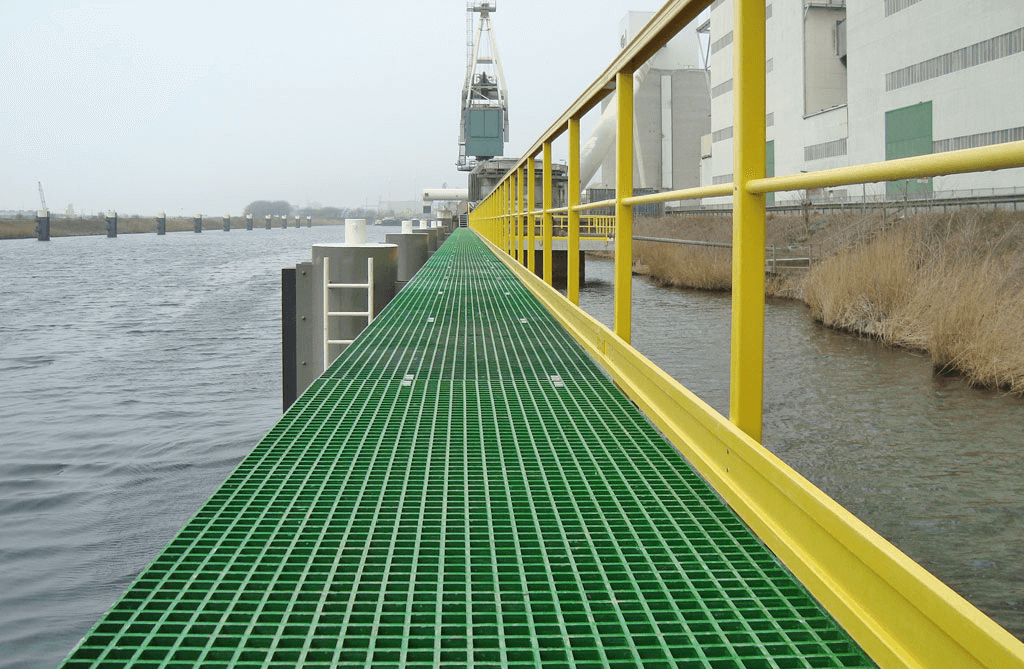

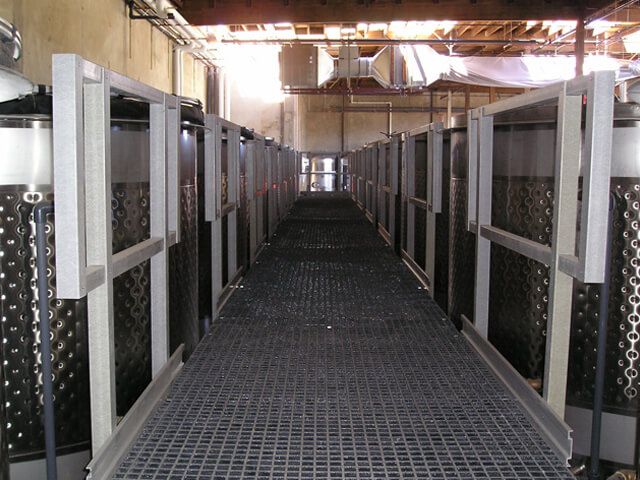

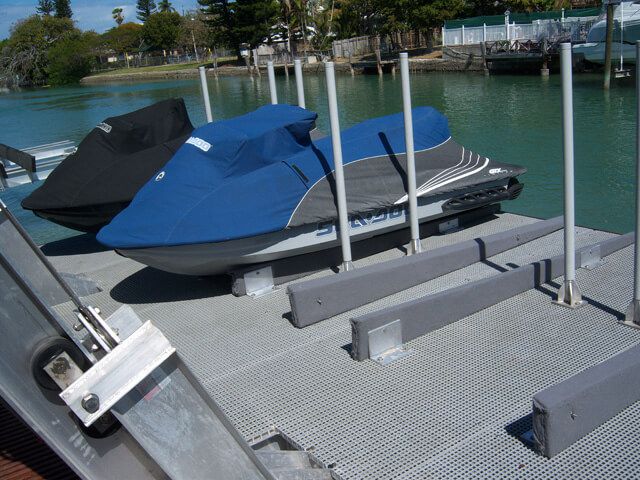

Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅38*38H50重负载型适用于石油化工、电力、污水处理、海洋工程等行业的操作平台、走道、地沟盖板等需要高承载和耐腐蚀的场合。
其38*38mm网格和50mm厚度设计在提供高强度的同时，保持排水、防滑和通风性能，适合潮湿、易积液或需频繁冲洗的环境。
选型指导
选型时需综合考虑承载要求、跨距、支撑方式及使用环境，根据实际荷载选择合适厚度与网格尺寸。
若需更高耐腐蚀等级，可选用间苯、乙烯基酯或双酚A型树脂；有阻燃需求时，可选择添加阻燃剂的配方。欢迎联系我们获取详细规格与选型建议。
产品优势
本产品以不饱和聚酯树脂为基体，玻璃纤维增强，具有轻质高强、耐腐蚀、抗老化、绝缘及免维护等特性。
模塑成型工艺确保网格尺寸精确、整体性好，表面凹槽设计提供防滑效果，重负载型结构可承受较大集中荷载。
询盘引导
如需了解更多关于玻璃钢模塑格栅38*38H50重负载型的技术参数、定制尺寸或批量采购信息，欢迎联系我们获取详细规格与报价。
我们可根据您的具体需求提供选型支持与解决方案，请随时与我们沟通。
