M 型夹具（不锈钢316）
Please feel freely to contact with us for new price .

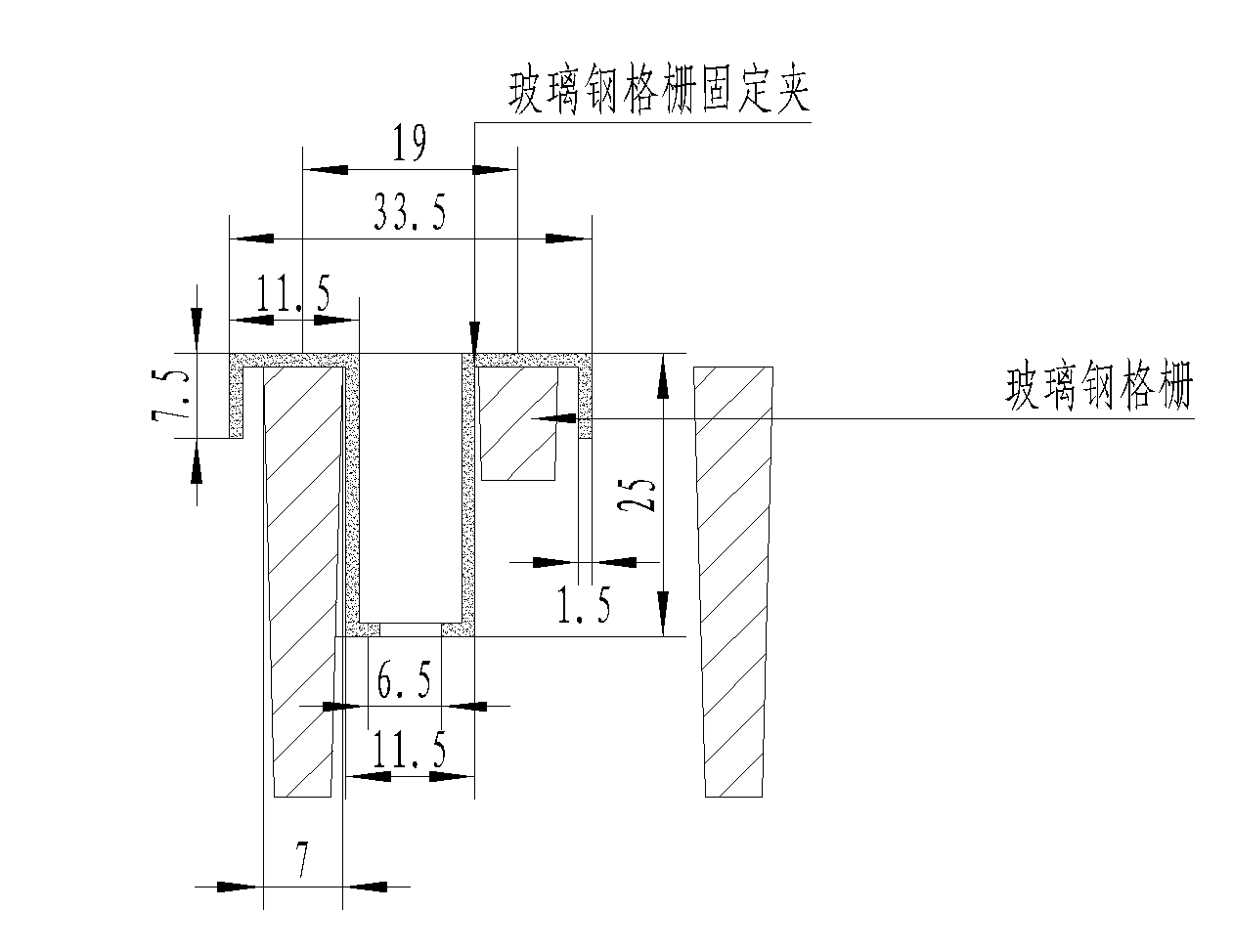

19*19/38*38 H25&38 Cross slot
Applicable lattice：19*19、38*38
Applicable thickness: 25、38
Material：Stainless steel 304、Stainless steel 316

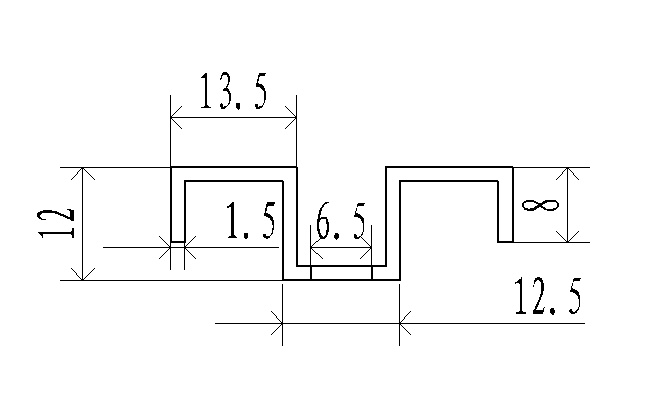

20*20 H14 Cross slot
Applicable lattice：20*20
Applicable thickness: 14
Material：Stainless steel 304、Stainless steel 316

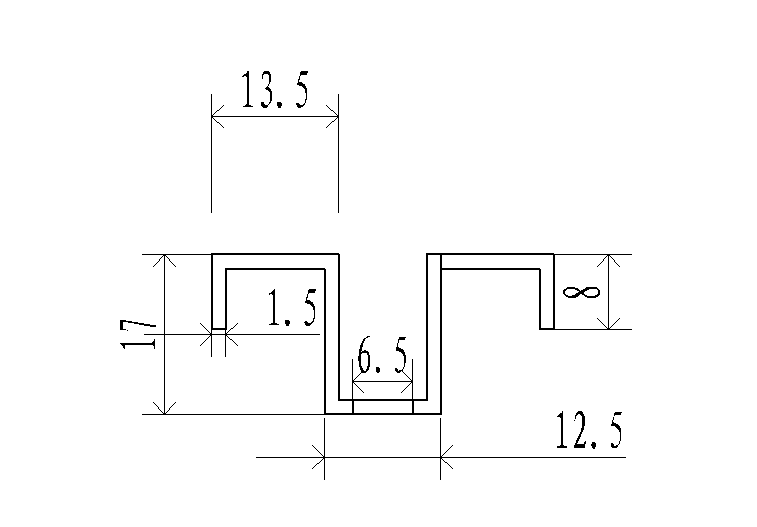

20*20 H17 Cross slot
Applicable lattice：20*20
Applicable thickness: 17
Material：Stainless steel 304、Stainless steel 316

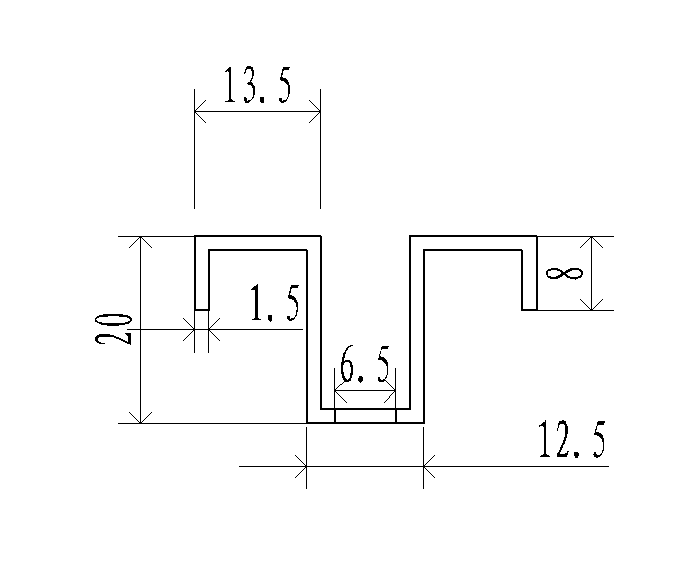

20*20 H20 Cross slot
Applicable lattice：20*20
Applicable thickness: 20
Material：Stainless steel 304、Stainless steel 316

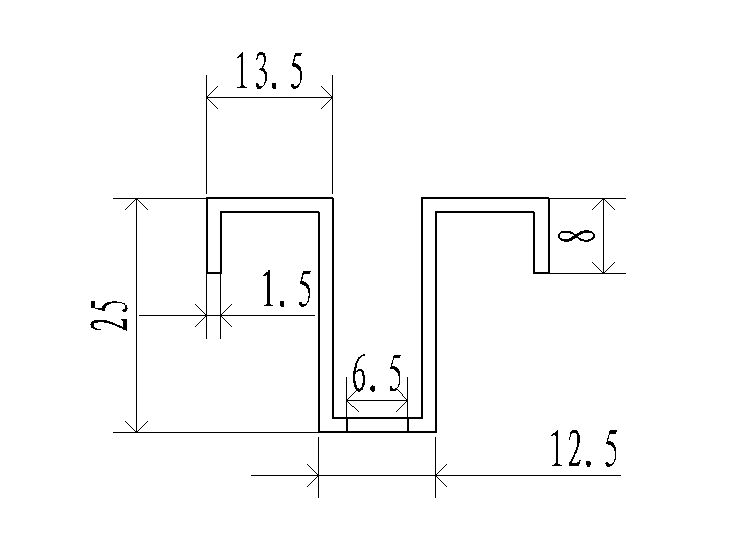

20*20 H25 Cross slot
Applicable lattice：20*20
Applicable thickness: 25
Material：Stainless steel 304、Stainless steel 316

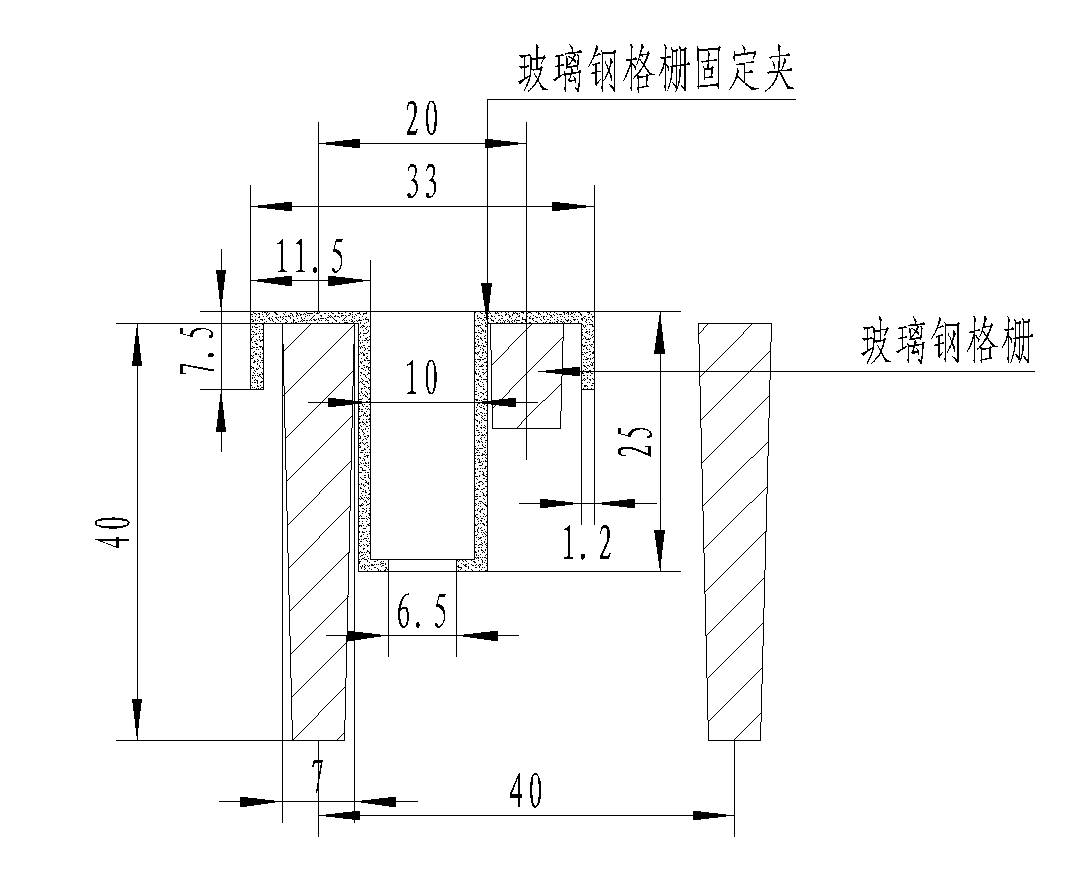

20*20/40*40 H40 Cross slot
Applicable lattice：20*20、40*40
Applicable thickness: 40
Material：Stainless steel 304、Stainless steel 316
38*38 H13
Applicable lattice：38*38
Applicable thickness: 13
Material：Stainless steel 304、Stainless steel 316
38*38 H15 Shop sand
Applicable lattice：38*38
Applicable thickness: 15
Material：Stainless steel 304、Stainless steel 316
38*38 H15 Groove
Applicable lattice：38*38
Applicable thickness: 15
Material：Stainless steel 304、Stainless steel 316
38*38 H25 Shop sand
Applicable lattice：38*38
Applicable thickness: 25
Material：Stainless steel 304、Stainless steel 316
38*38 H25 Groove
Applicable lattice：38*38
Applicable thickness: 25
Material：Stainless steel 304、Stainless steel 316
38*38 H38 Shop sand
Applicable lattice：38*38
Applicable thickness: 38
Material：Stainless steel 304、Stainless steel 316
38*38 H38 Groove
Applicable lattice：38*38
Applicable thickness: 38
Material：Stainless steel 304、Stainless steel 316
50*50 H13 Shop sand
Applicable lattice：50*50
Applicable thickness: 13
Material：Stainless steel 304、Stainless steel 316
50*50 H13 Groove
Applicable lattice：50*50
Applicable thickness: 13
Material：Stainless steel 304、Stainless steel 316
50*50 H50 Groove
Applicable lattice：50*50
Applicable thickness: 50
Material：Stainless steel 304、Stainless steel 316
I-5015 Shop sand
Applicable model：I-5015
Applicable thickness: 38
Material：Stainless steel 304、Stainless steel 316
I-6010
Applicable model：I-6010
Applicable thickness: 25
Material：Stainless steel 304、Stainless steel 316
I-6015
Applicable model：I-6015
Applicable thickness: 38
Material：Stainless steel 304、Stainless steel 316
I-40125
Applicable model：I-40125
Applicable thickness: 32
Material：Stainless steel 304、Stainless steel 316
应用场景

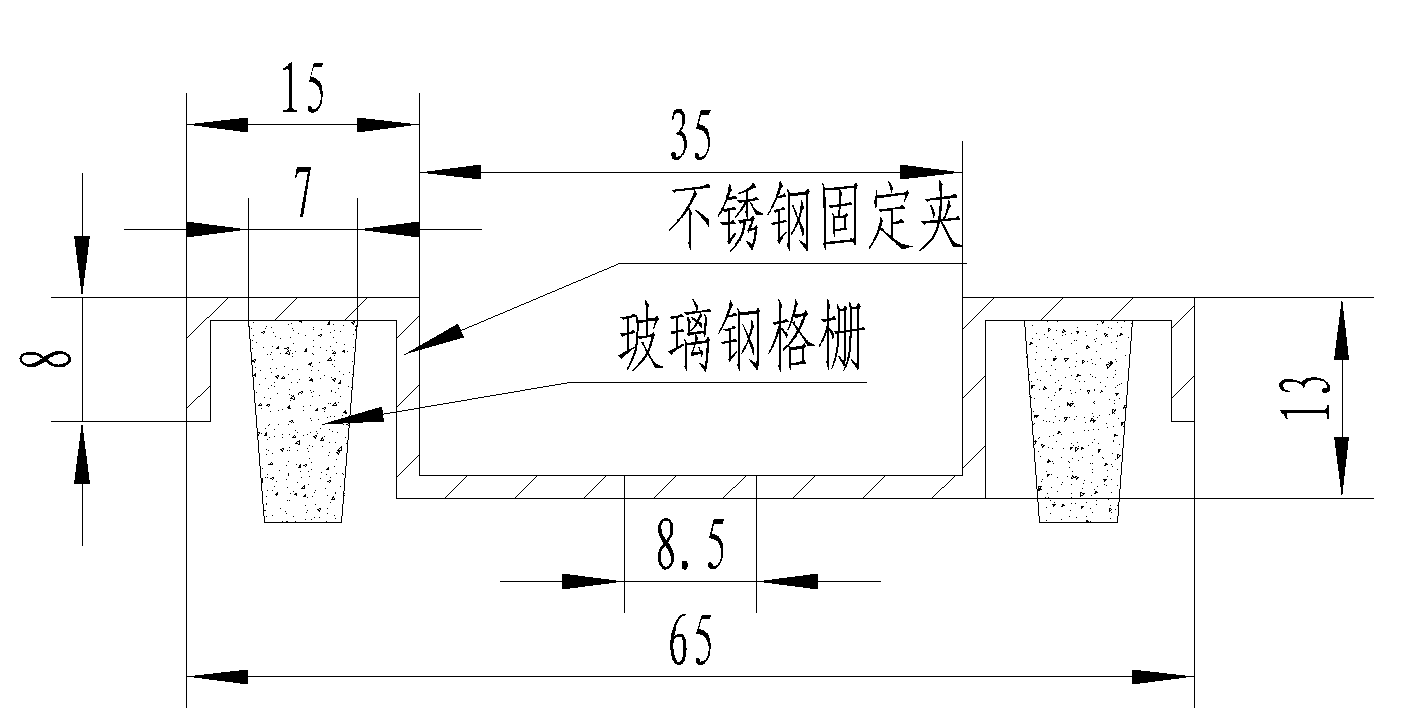

不锈钢316 M型夹具常用于化工、海洋工程、污水处理等腐蚀性环境下的格栅与型材固定，可配合FRP格栅、拉挤型材或结构件实现可靠连接。不同规格对应不同格栅孔径与厚度，适用于平台、走道、地沟盖板及设备支架等安装场景。
选型指导
选型时需先确认格栅的网格尺寸（如19*19、20*20、38*38）与厚度（如14、17、20、25、38），再匹配对应H值的夹具型号。若使用环境对耐腐蚀性要求较高，建议优先选用316不锈钢材质；具体规格适配与安装方式，欢迎联系我们获取详细规格与报价。
产品优势
采用不锈钢304或316材质，具备良好的耐腐蚀性和结构强度，能够长期稳定固定FRP格栅与型材。M型十字槽设计有助于分散载荷、减少应力集中，安装便捷，适配多种网格与厚度组合。
询盘引导
如需确认具体型号、材质或批量采购方案，欢迎联系我们获取详细规格与报价。请提供所需的网格尺寸、厚度、材质及数量，我们将协助您完成选型并给出对应建议。
