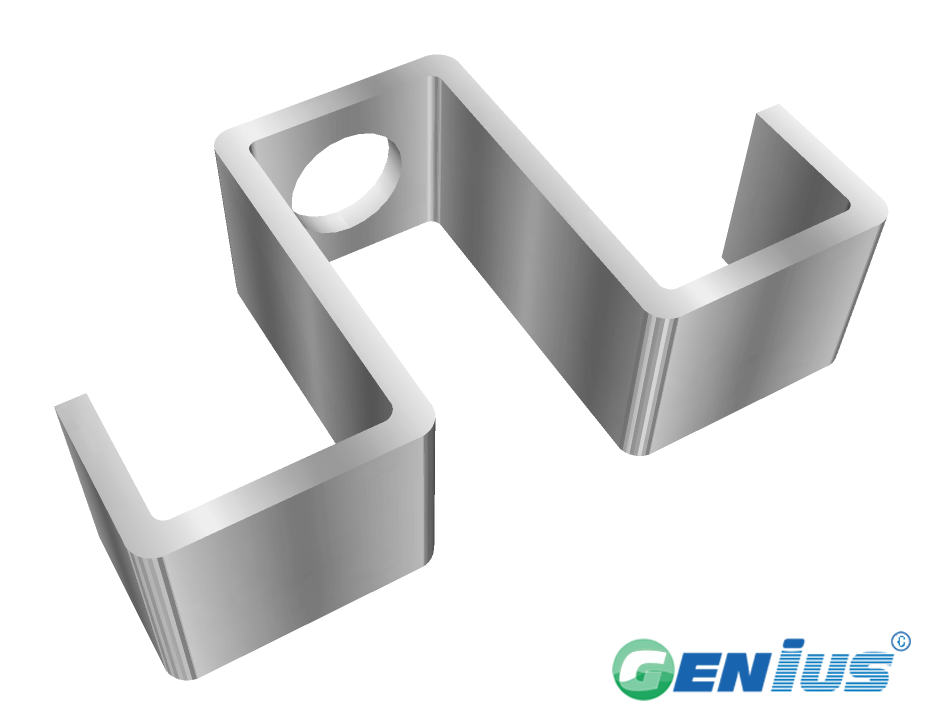

M 型夹具（不锈钢304）
Please feel freely to contact with us for new price .
19*19/38*38 H25&38 Cross slot
Applicable lattice：19*19、38*38
Applicable thickness: 25、38
Material：Stainless steel 304、Stainless steel 316
20*20 H14 Cross slot
Applicable lattice：20*20
Applicable thickness: 14
Material：Stainless steel 304、Stainless steel 316
20*20 H17 Cross slot
Applicable lattice：20*20
Applicable thickness: 17
Material：Stainless steel 304、Stainless steel 316

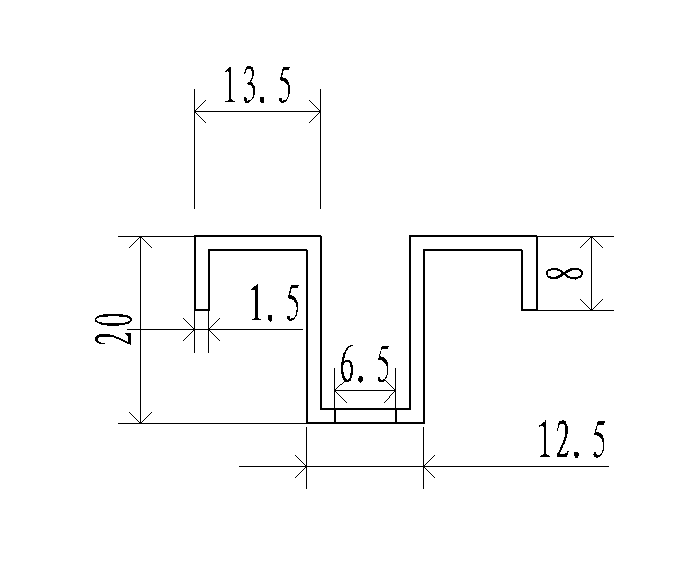

20*20 H20 Cross slot
Applicable lattice：20*20
Applicable thickness: 20
Material：Stainless steel 304、Stainless steel 316

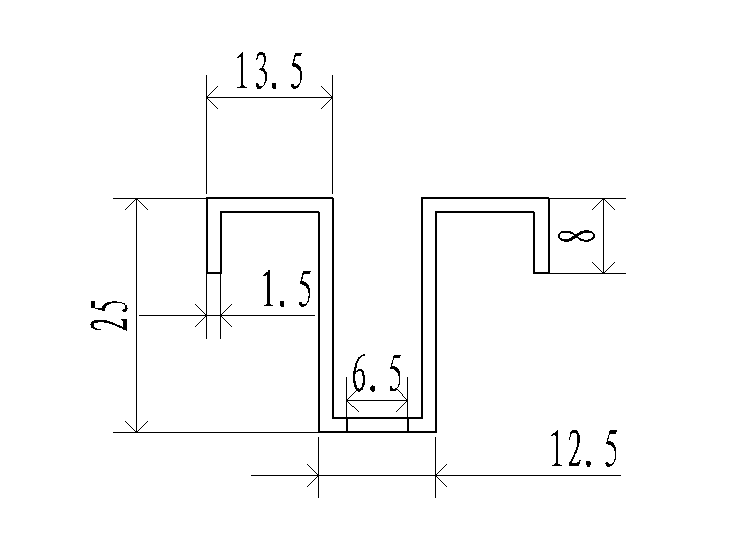

20*20 H25 Cross slot
Applicable lattice：20*20
Applicable thickness: 25
Material：Stainless steel 304、Stainless steel 316
20*20/40*40 H40 Cross slot
Applicable lattice：20*20、40*40
Applicable thickness: 40
Material：Stainless steel 304、Stainless steel 316
38*38 H13
Applicable lattice：38*38
Applicable thickness: 13
Material：Stainless steel 304、Stainless steel 316
38*38 H15 Shop sand
Applicable lattice：38*38
Applicable thickness: 15
Material：Stainless steel 304、Stainless steel 316
38*38 H15 Groove
Applicable lattice：38*38
Applicable thickness: 15
Material：Stainless steel 304、Stainless steel 316
38*38 H25 Shop sand
Applicable lattice：38*38
Applicable thickness: 25
Material：Stainless steel 304、Stainless steel 316
38*38 H25 Groove
Applicable lattice：38*38
Applicable thickness: 25
Material：Stainless steel 304、Stainless steel 316
38*38 H38 Shop sand
Applicable lattice：38*38
Applicable thickness: 38
Material：Stainless steel 304、Stainless steel 316
38*38 H38 Groove
Applicable lattice：38*38
Applicable thickness: 38
Material：Stainless steel 304、Stainless steel 316
50*50 H13 Shop sand
Applicable lattice：50*50
Applicable thickness: 13
Material：Stainless steel 304、Stainless steel 316
50*50 H13 Groove
Applicable lattice：50*50
Applicable thickness: 13
Material：Stainless steel 304、Stainless steel 316
50*50 H50 Groove
Applicable lattice：50*50
Applicable thickness: 50
Material：Stainless steel 304、Stainless steel 316
I-5015 Shop sand
Applicable model：I-5015
Applicable thickness: 38
Material：Stainless steel 304、Stainless steel 316
I-6010
Applicable model：I-6010
Applicable thickness: 25
Material：Stainless steel 304、Stainless steel 316
I-6015
Applicable model：I-6015
Applicable thickness: 38
Material：Stainless steel 304、Stainless steel 316
I-40125
Applicable model：I-40125
Applicable thickness: 32
Material：Stainless steel 304、Stainless steel 316
应用场景
M 型夹具用于将格栅板与支撑梁或结构件固定连接，常见于平台、走道、地沟盖板及各类 FRP 格栅安装工程。不锈钢材质使其适用于对耐腐蚀性有要求的室内外环境。具体项目适配情况可联系我们确认。
选型指导
选型时请先确认格栅的网格尺寸（如 19*19、20*20、38*38）与格栅厚度（如 14、17、20、25、38），本系列按十字槽与厚度匹配对应型号。若不确定适用规格，欢迎提供格栅参数，由我们协助推荐合适型号。
产品优势
采用不锈钢 304 或 316 材质，具备良好的耐腐蚀与抗锈性能，十字槽结构便于安装定位。不同网格与厚度组合覆盖多种格栅规格，减少现场加工。具体材质与工艺细节欢迎咨询。
询盘引导
如需了解详细规格、材质选项、包装及供货方式，欢迎联系我们获取报价与技术支持。请提供所需型号、数量及使用环境，以便我们快速响应。
