LM Compacted Wire Rope GB6x36 (14/7+7/7/1) IWRC

LM Compacted Wire Rope GB6x36 (14/7+7/7/1) IWRC

¥ 1.00 1.0 CNY

¥ 1.00

Add To Cart


Please feel freely to contact with us for new price .

Product Details

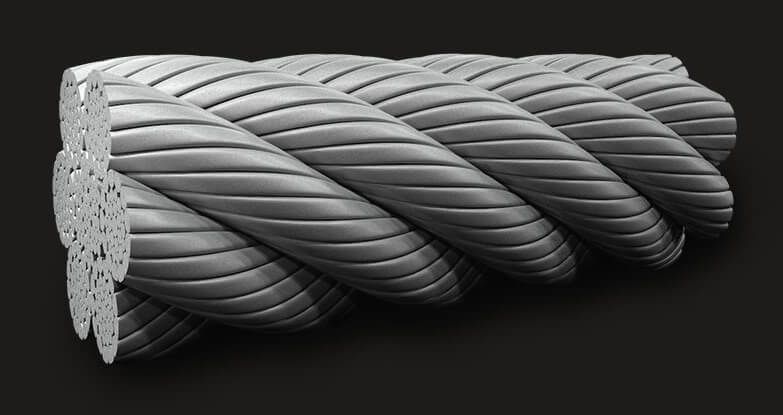

6x36 wire rope is a flexible general engineering wire rope available with either FC (fibre core) or IWRC (independent wire rope core). The wire rope has a superior breaking load and a good fatigue life. This wire rope can be used for a wide range of applications.

Surface treatment:Ungalv  or  Galvanized

Standard:GB/T 20118-2006

LM Compacted Wire Rope GB6x36 (14/7+7/7/1) IWRC

Applications

  • General engineering

  • Ropes for grab cranes

  • Wire rope slings

  • Crane ropes

  • Hoist rope

  • Winch ropes


  • Lifeboat falls

  • Mooring ropes

  • Pursing wires

  • Luffing ropes

  • Tow ropes

Breaking Loads

Min Breaking Loads

Min Breaking Loads

Min Breaking Loads

Diameter

Weight

 (1770Mpa)

(1960Mpa)

(2160Mpa)

mm

kg/m

KN

KN

KN

120.68112124131
130.79131147157
140.93153169183
151.06176194208
161.19198219237
181.52250277298
191.68275305329
201.85307340368
222.26370410441
242.74447492540
252.93481532576
263.14520581622
283.68604663722
304.21689763831
324.75777861949
345.458919801070
355.7193310331131
366.0999210991192

General Engineering Ropes

   GREENLOGY TEC(LM) specializes in supplying multiple strands of  ungalvanised and galvanized steel wire ropes. Our products range from 0.5mm to 64mm, including 1X19, 7X7, 6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 with both Fibre Core and Steel Cores. In addition to these conventional steel wire ropes, we can also provide high-quality special steel wire ropes.

   Most wire ropes are used in harsh conditions and must have resistance to extrusion, bending fatigue and abrasion. All of our wire ropes are guaranteed to achieve the highest level , maximizing the service life to increase the productivity of end users. We ensure that all materials are produced in accordance with the best standards in the wire rope industry. Each wire rope can be supplied with a thimble eyes, swaged ends and wedge sockets ,as well as many other assembly components.In addition, we also provide customized services, our team of engineers can manufacture wire ropes of your required specifications. All materials are certified, traceable, and comply with ISO9001 standards.


选型指导

选型时请根据实际工况的载荷要求、使用频率及环境条件,结合上表中的最小断裂荷载数据,确定合适的钢丝绳直径和强度等级。如有不确定之处,欢迎联系我们获取专业选型建议。

产品优势

该钢丝绳采用6x36结构,具有较高的柔韧性和抗疲劳性能,适用于多种起重和牵引场景。独立钢丝绳芯(IWRC)设计提升了整体断裂荷载能力,延长了使用寿命。

询盘引导

如需了解具体规格、价格、交货期或其他商务条款,欢迎随时联系我们,我们将为您提供详细报价和定制服务。
